Adobe Dimension (v.3 and newer)

Adobe Dimension is a powerful tool for creating 3D product mockups, designs, and visualizations. By enabling GPU rendering, you can drastically speed up the rendering process, allowing you to produce higher-quality images faster. Here’s a step-by-step guide to help you enable GPU rendering in Dimension and optimize performance.

How to Enable GPU Rendering in Adobe Dimension

1. Launch Adobe Dimension
   Open Dimension by navigating to:
   C:\Program Files\Adobe\Adobe Dimension\Dimension.exe

2. Activate GPU Rendering

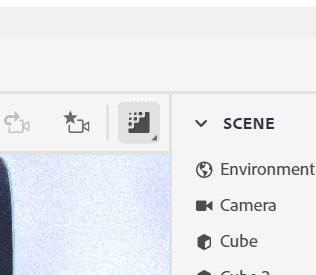

   • Open the Render Preview Window and click the Show/Hide Render Preview icon.

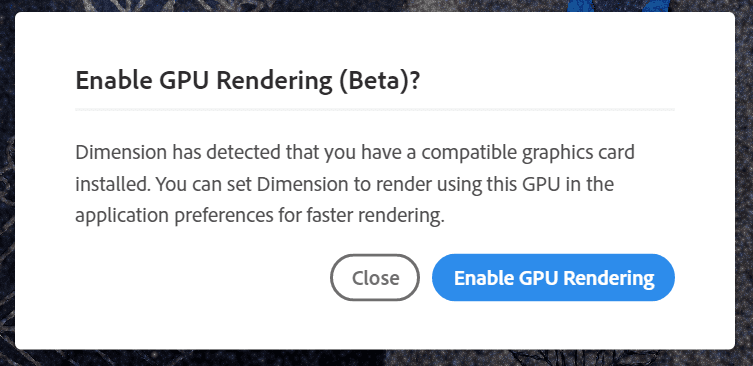

   • Then, select the Enable GPU Rendering button. This allows Dimension to leverage your GPU for faster previews and rendering.



3. Check Preferences for Noise Reduction

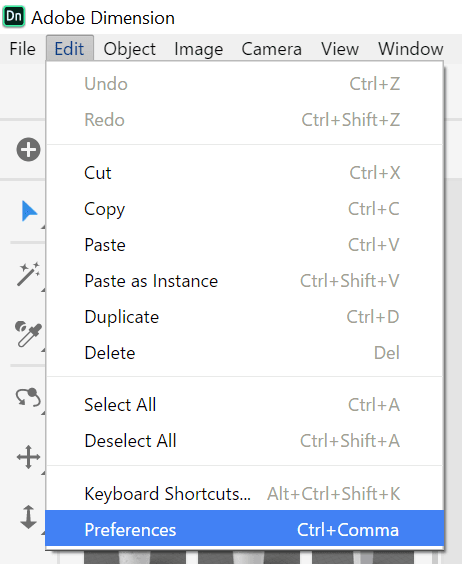

   • In the top navigation bar, go to Edit > Preferences.

   • Scroll down and ensure that Reduce Noise in Rendering is enabled. This feature reduces noise during rendering and improves the clarity of final outputs using Adobe’s AI technology.



4. Ensure GPU Compatibility
   GPU rendering is only supported on NVIDIA RTX cards. If your system has a supported NVIDIA GPU, such as an RTX 2000 series or higher, make sure you have the latest drivers installed. If you're using an AMD GPU or older graphics cards, GPU rendering will not be available.

Top Tips to Speed Up Adobe Dimension

1. Update Your GPU Drivers
   Keeping your drivers up to date is crucial for improving compatibility and performance in Adobe Dimension. NVIDIA RTX GPUs, in particular, benefit from frequent updates that enhance rendering speed and ray-tracing capabilities.

2. Optimize Scene Complexity
   Materials like glass or water take longer to render compared to simple materials like plastic or metal. Simplifying the scene, where possible, can improve performance and reduce render times.

3. Manually Set GPU Preferences
   On Windows, use the NVIDIA Control Panel to ensure Dimension uses the high-performance NVIDIA GPU instead of an integrated graphics card. You can do this by going to Manage 3D Settings > Program Settings and selecting Adobe Dimension as a high-performance GPU program.

4. Disable Viewport Anti-Aliasing
   Turning off Viewport Anti-Aliasing in Preferences > Performance can increase rendering speed by reducing the load on your GPU, though it may result in jagged edges during preview (this won’t affect the final render).

5. Close Unnecessary Applications
   Dimension is resource-intensive. Closing other apps frees up CPU, RAM, and VRAM, helping Dimension run more efficiently.

Adobe Dimension System Requirements

Minimum Requirements:

• Operating System:

  • Windows: Windows 10 64-bit Version 22H2 or later.

  • macOS: macOS 12 Monterey or later.

• Processor:

  • Windows: Intel Core i5 or AMD Ryzen 5.

  • macOS: Intel Core i9 or Apple M1 Pro.

• RAM: 16 GB.

• Graphics Card:

  • Windows: NVIDIA GeForce RTX 2060 Super, NVIDIA Quadro RTX 4000, AMD Radeon RX 5700 XT, or AMD Radeon Pro W5700.

  • macOS: AMD Radeon Pro 5600M or AMD Radeon Pro Vega 56.

• VRAM: 8 GB.

• Storage: SSD with 30 GB of available space.

• Display: Monitor with a resolution greater than 1 Megapixel and wider than 1280 pixels.

Recommended Specifications:

• Operating System:

  • Windows: Windows 11 64-bit Version 21H2 or later.

  • macOS: macOS 13 Ventura or later.

• Processor:

  • Windows: Intel Core i7 or AMD Ryzen 7.

  • macOS: Apple M2 Pro.

• RAM: 32 GB.

• Graphics Card:

  • Windows: NVIDIA GeForce RTX 3080, NVIDIA Quadro RTX A4000, AMD Radeon RX 6800 XT, or AMD Radeon Pro W7700.

  • macOS: AMD Radeon Pro 5700 XT.

• VRAM: 16 GB.

• Storage: SSD with 50 GB of available space.

• Display: Monitor with a resolution greater than 1 Megapixel and wider than 1280 pixels.

Optimal Specifications:

• Operating System:

  • Windows: Windows 11 64-bit Version 22H2 or later.

  • macOS: macOS 14 Sonoma or later.

• Processor:

  • Windows: Intel Core i9 or AMD Ryzen 9.

  • macOS: Apple M3.

• RAM: 64 GB.

• Graphics Card:

  • Windows: NVIDIA GeForce RTX 4090, NVIDIA Quadro RTX 5000 Ada Generation, AMD Radeon RX 7900 XTX, or AMD Radeon Pro W7800.

  • macOS: AMD Radeon Pro 5800 XT.

• VRAM: 24 GB.

• Storage: SSD with 70 GB of available space.

• Display: Monitor with a resolution greater than 1 Megapixel and wider than 1280 pixels.

Meeting these specifications will help you get the most out of Adobe Dimension, ensuring efficient workflows and high-quality outputs. Keep in mind that more complex projects, especially those involving high-resolution assets or intricate scenes, will benefit from higher-end hardware configurations.

Top Recommended GPUs for Adobe Dimension

1. NVIDIA RTX 3090
   Ideal for complex 3D projects, the RTX 3090 offers 24GB of VRAM and is the best choice for high-resolution rendering in Dimension.

2. NVIDIA RTX 3080
   A more affordable alternative to the 3090, the RTX 3080 provides excellent performance with 10GB of VRAM and is highly recommended for most 3D rendering tasks.

3. NVIDIA RTX 3070
   Offering a balance of cost and performance, the RTX 3070 is suitable for users who need reliable GPU power without going over budget.

By enabling GPU rendering and following these optimization tips, you can significantly improve performance in Adobe Dimension, making your 3D workflows faster and more efficient.
