Last month, I tried opening SketchUp on a 7-year-old ultrabook I had lying around. No dedicated GPU. 8 GB of RAM. A painfully slow spinning hard drive. Honestly? I didn’t expect much.

But you know what? It worked. Kinda.

Was it fast? No. Did it crash? A couple times. But for basic modeling, simple interiors, concept sketches, even a few plugins, it got the job done. Barely.

And that’s the thing no one really tells you: SketchUp is surprisingly forgiving when it comes to hardware. Unlike something like Revit, Blender, or Unreal, it doesn’t demand top-tier specs to get started.

But there’s a catch. Several, actually.

So, can you really use SketchUp on a low-end device or one without a dedicated GPU? Yes. With patience, some smart settings, and a little know-how.

Unlike more GPU-heavy platforms like Blender or Unreal, SketchUp is relatively kind to older machines. If you’re choosing between the two, this Blender vs SketchUp breakdown is a great place to start.

Let’s talk about how.

How SketchUp Uses Your Hardware

Here’s the first surprise: SketchUp is way more CPU-dependent than GPU-dependent.

If you’ve spent any time building 3D models, you’ve probably heard some variation of: “You need a powerful graphics card!” That’s true, for rendering. But for SketchUp itself? Not so much.

What actually matters more:

• CPU (Processor): SketchUp runs mostly on a single core. Multi-core chips don’t really help much unless you’re rendering with extensions like V-Ray. A fast single-threaded CPU makes the biggest difference in how smooth things feel.

• RAM: 8 GB is technically enough. But if you’re working with complex scenes or running background apps (like Chrome, which is a memory hog), 16 GB gives you breathing room.

• GPU (Graphics Card): SketchUp does use OpenGL for rendering the viewport, but it doesn’t push the GPU hard unless you enable fancy stuff like shadows, ambient occlusion, or anti-aliasing.

• Storage: SSDs are criminally underrated. If you’re still on a spinning hard drive, that alone could be killing your workflow. Load times, autosaves, even plugin performance all slow down on HDDs.

Quick stat: According to Trimble’s official SketchUp requirements, even integrated graphics (like Intel UHD 620) are supported, as long as they have at least 512 MB of memory. But that’s the bare minimum.

In other words, you don’t need a fancy RTX card to get started. But you do need to know where the real bottlenecks are hiding.

Unlike heavier platforms like AutoCAD or Revit, SketchUp stays relatively light on system demands. But if you're comparing toolsets and performance, this AutoCAD vs SketchUp comparison breaks it down nicely.

Can Integrated Graphics Run SketchUp?

Yes, SketchUp runs on integrated graphics. But the real question is—how well does it run?

If you’re using an older Intel chip like UHD 620, Iris Plus, or HD Graphics 520, you can open SketchUp, create basic models, and maybe even use a few lightweight plugins. For small projects and simple geometry, it works fine.

The problems start when your model gets more complex. Add detailed components from the 3D Warehouse, throw in some high-resolution textures, or forget to turn off shadows—and things start to slow down fast. Orbiting becomes choppy. Selecting objects lags. Menus feel unresponsive. In many cases, enabling shadows is enough to bring everything to a crawl.

That said, people still use SketchUp on low-end machines every day. I’ve seen users on forums and Reddit modeling with integrated graphics on Chromebooks and budget laptops. It’s doable—as long as you keep things simple and make smart choices. Stick to low-polygon components, use basic styles without edge profiles, avoid large texture files, and turn off visual extras like shadows and ambient occlusion. And definitely don’t zoom all the way out on huge site plans—SketchUp struggles with that, even on good hardware.

Thinking of using real-time rendering plugins like Enscape or V-Ray’s interactive mode? Honestly, don’t. They may launch, but integrated graphics just can’t handle them. You’ll spend more time staring at frozen preview windows than actually designing.

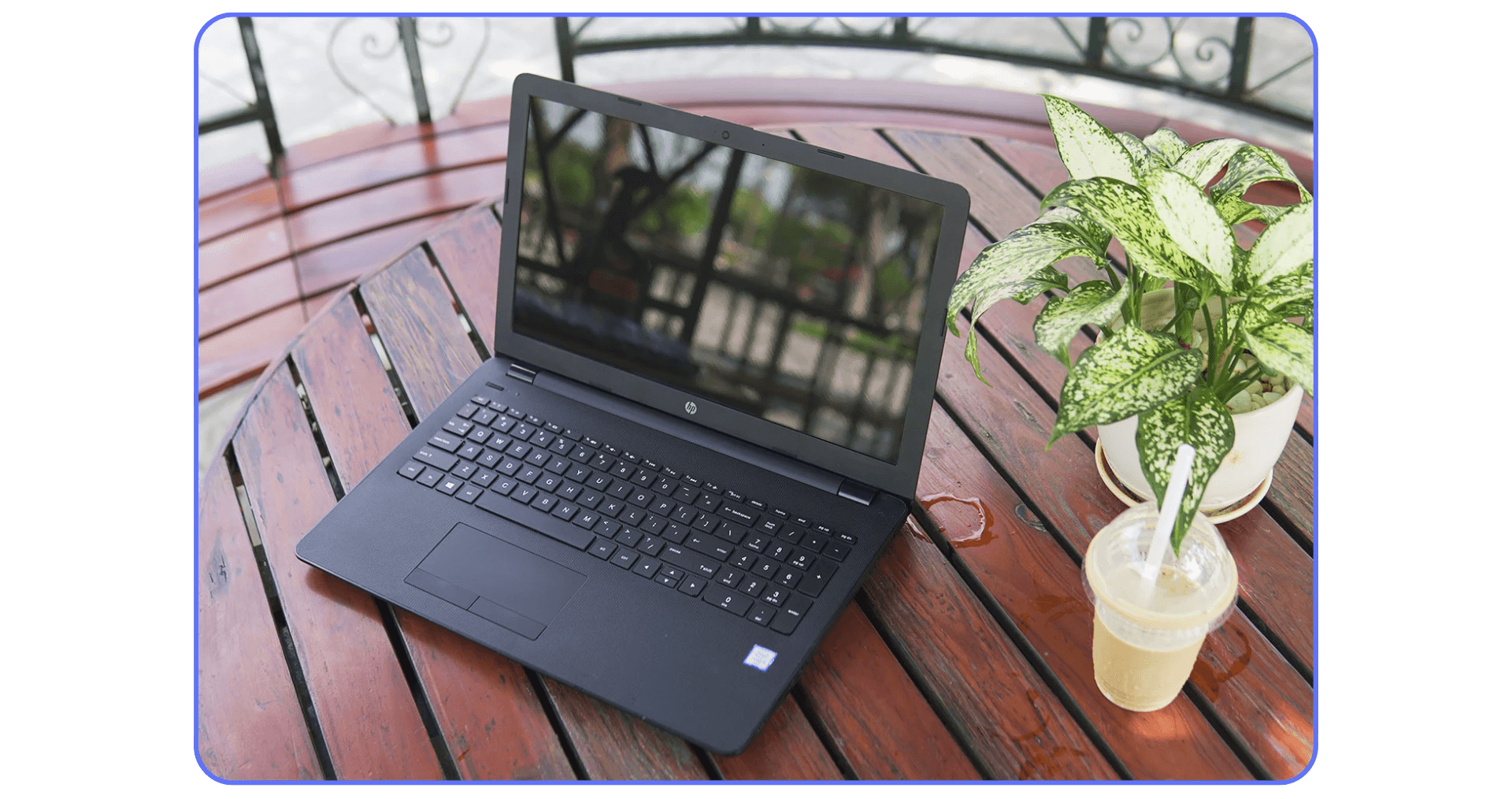

Testing on a 7-Year-Old Laptop

So, I decided to put all this to the test.

I dug up an old ultrabook I used to carry around in 2017. It’s got:

• Intel Core i5-6200U (yep, dual-core)

• Intel HD Graphics 520

• 8 GB DDR3 RAM

• 500 GB spinning hard drive

Basically, a worst-case scenario.

I installed SketchUp Make 2017 (still usable, still free), loaded up a simple interior model I downloaded from 3D Warehouse, a couch, two chairs, some windows, maybe 70,000 faces tops.

And guess what? It worked. Slowly, but it worked.

Orbiting was choppy, but not unbearable. Sketching out basic shapes? Fine. Moving components? A little laggy. The real pain came when:

• I enabled shadows. Instant regret.

• I imported a complex model from the Warehouse. (That was a hard crash.)

• Autosave kicked in while I was mid-edit. Froze for 15 seconds every time.

After two hours of trying to push it, I gave up and did one thing: swapped the hard drive for an SSD.
Same laptop, same RAM, same sad little Intel chip, way smoother.

Still not a speed demon, but the choppiness during file saving, extension loading, and startup time? Gone.

If I were to do one upgrade on a low-end device, SSD first. Always.
RAM second. GPU? Honestly, only if you plan to get into heavy rendering or complex scenes daily.

Free Ways to Boost Performance

Let’s say you’re stuck with what you’ve got. No budget for a new machine. No external GPU dock. Just you, your laptop, and SketchUp begging for mercy.

There’s still a lot you can do.

Little time-savers like SketchUp keyboard shortcuts can also make navigation feel less sluggish on slow machines.

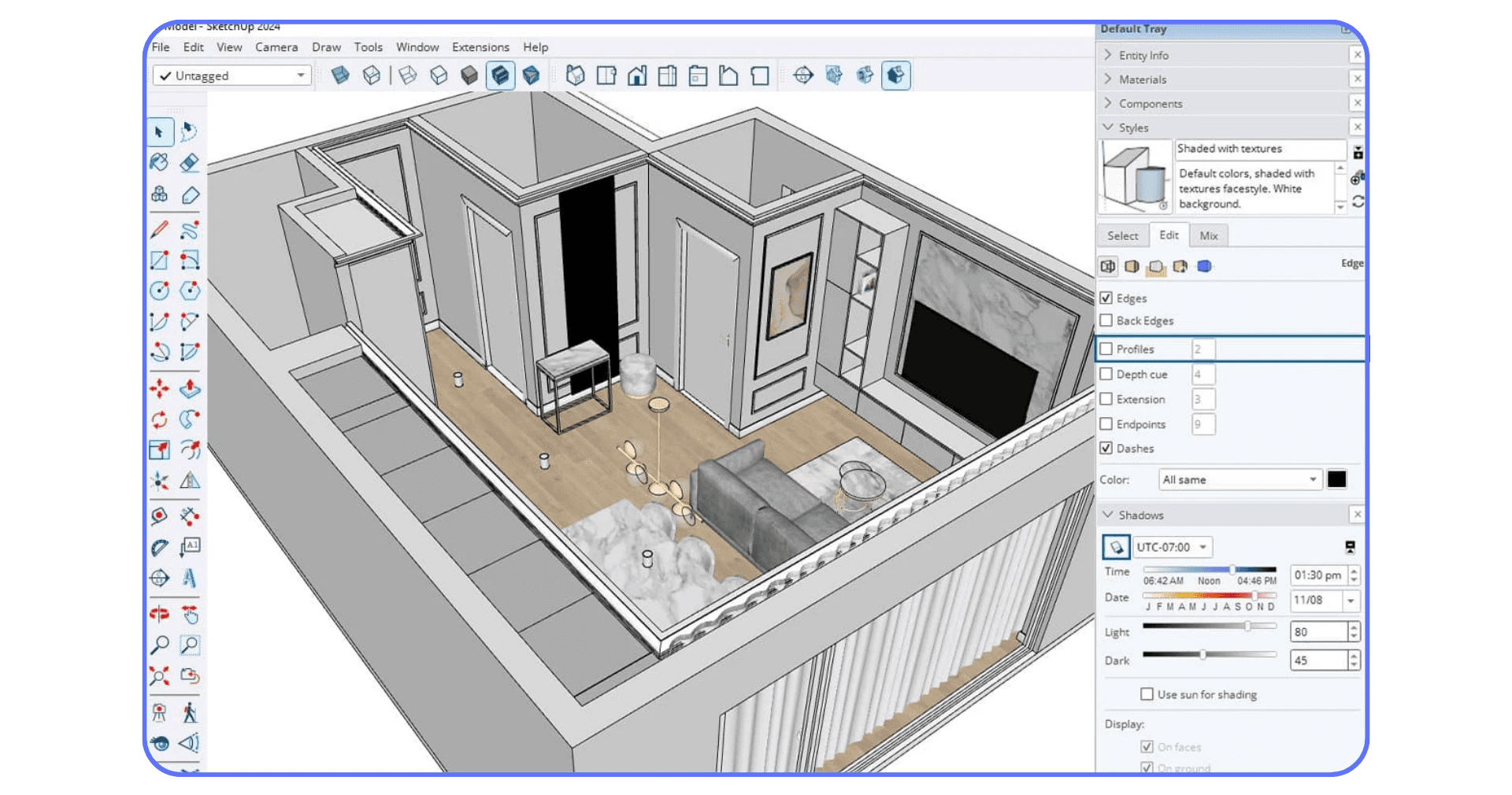

#1. Kill Shadows and Fancy Styles

This is the #1 fix. Turn off shadows, profiles, and extensions lines. Switch to a basic style like “Shaded with Textures” or just plain old Monochrome.

You’ll be amazed how much smoother orbiting gets.

#2. Clean Up That Model

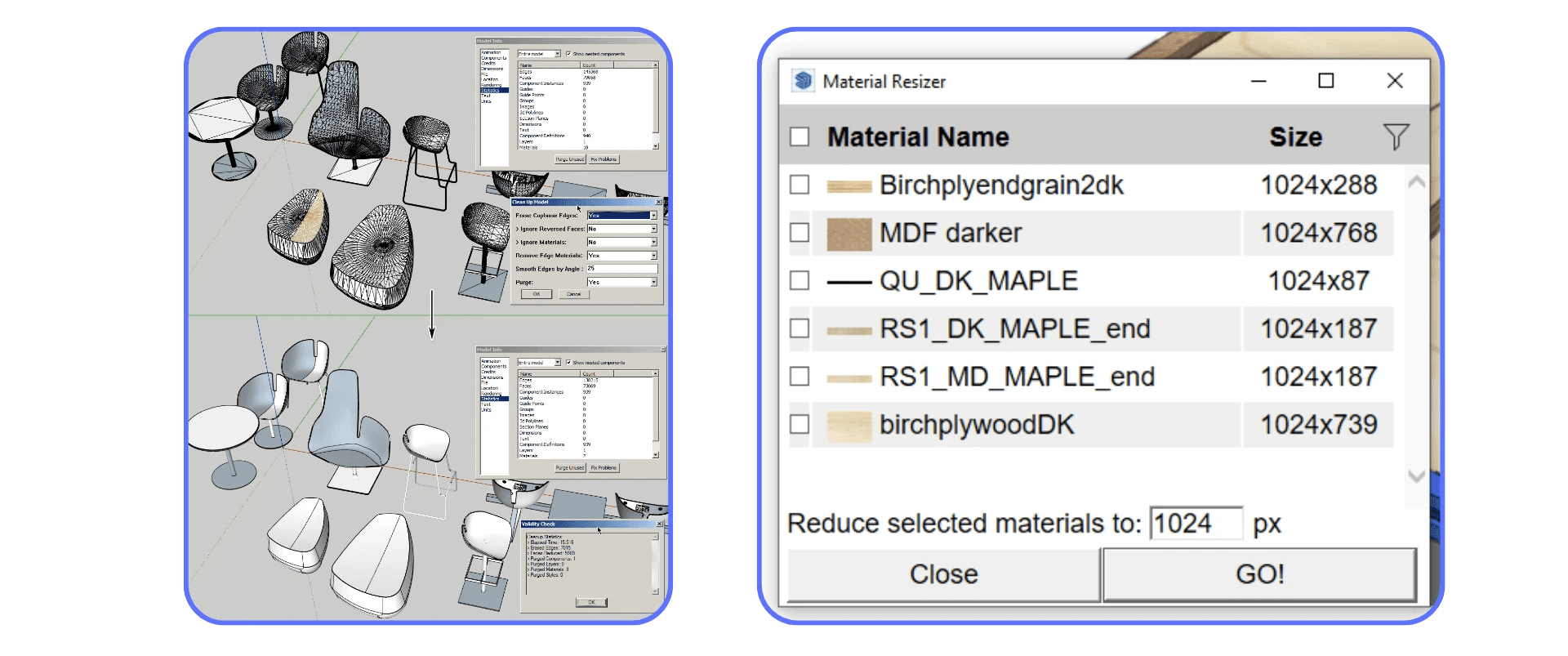

SketchUp models get bloated fast. Especially when you pull stuff from 3D Warehouse. Use these plugins to clean house:

• CleanUp³ – deletes hidden geometry, purges unused components, simplifies edges

• Purge All – built into SketchUp’s Model Info panel

• Material Resizer – downscales massive texture files that you didn’t even realize were 12K resolution

Also: group everything. Ungrouped geometry = performance sink.

Planning to move assets between tools? This guide on exporting from Blender to SketchUp, Unity, and Unreal can help smooth out the pipeline.

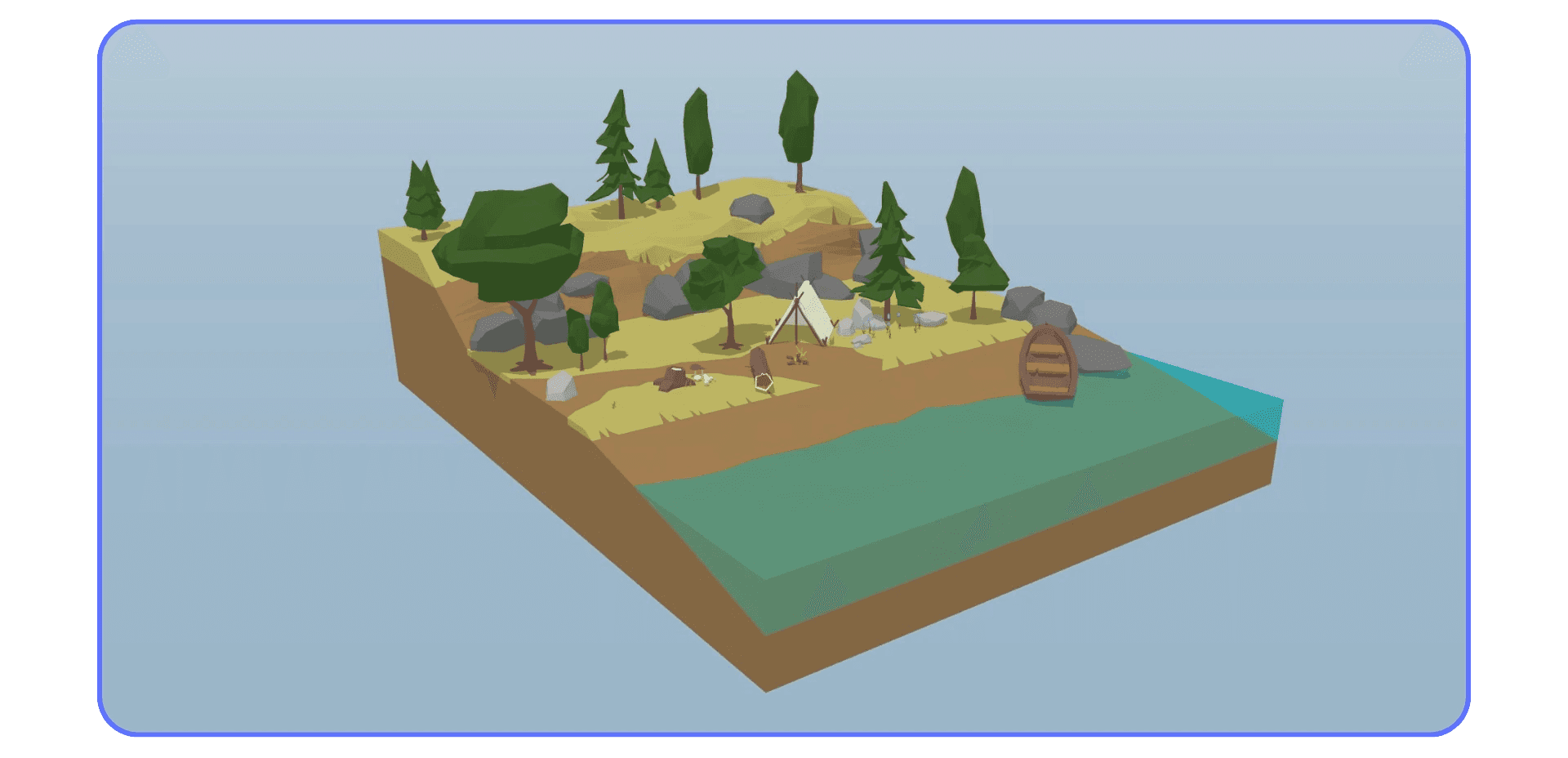

#3. Stick to Low-Poly Components

Avoid overly detailed trees, cars, and furniture. Do you really need a coffee machine with internal piping modeled? No. No, you do not.

Use lightweight proxies or low-poly versions when you're designing, and swap in the fancy ones for final renders.

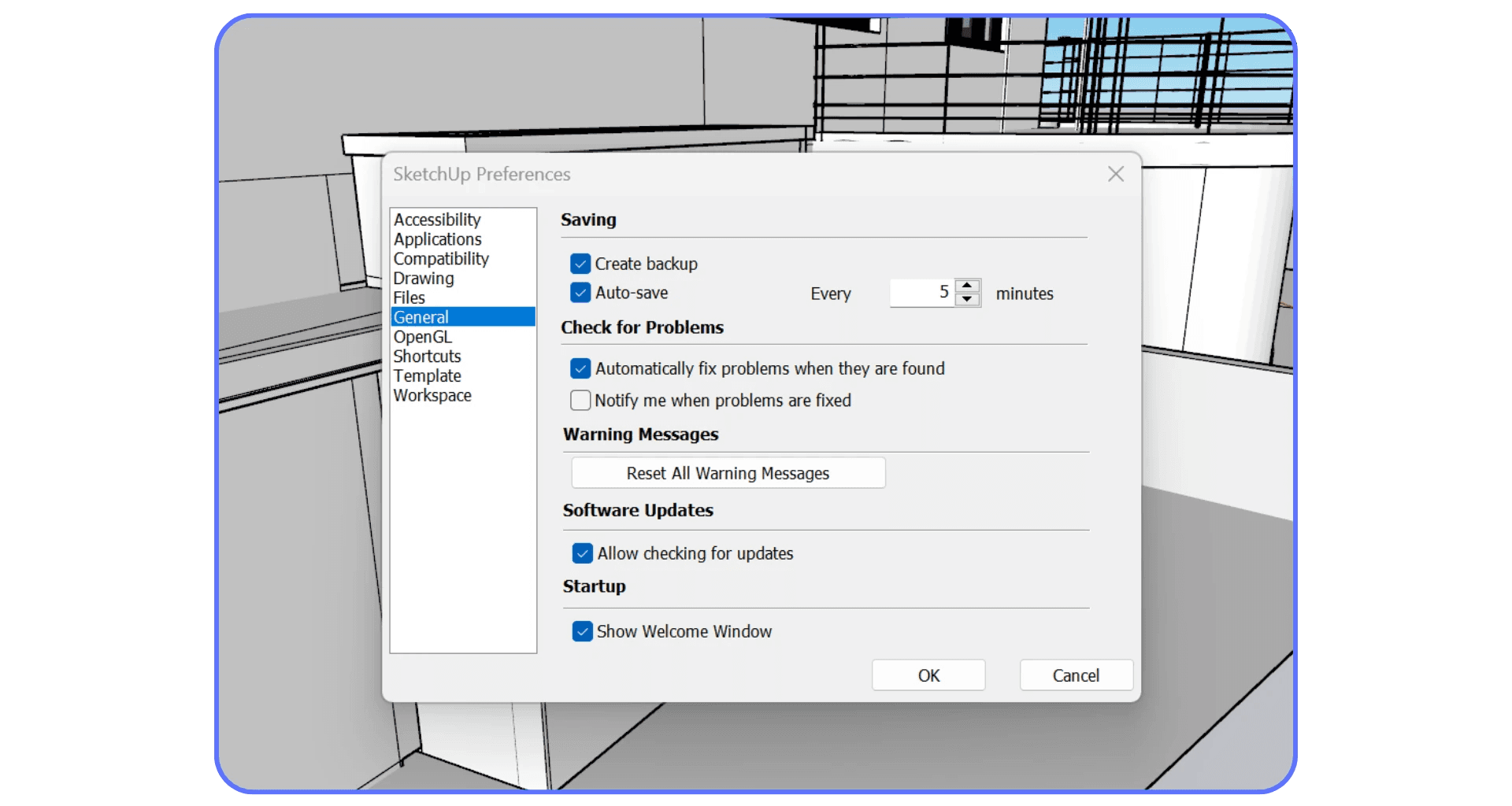

#4. Turn Off Autosave or Increase the Interval

Autosave is helpful—until it kicks in every 5 minutes and locks up your machine for 20 seconds.

If your computer is slow, increase the autosave interval to 30 minutes or turn it off when you’re deep in edits. Just remember to save manually. Often.

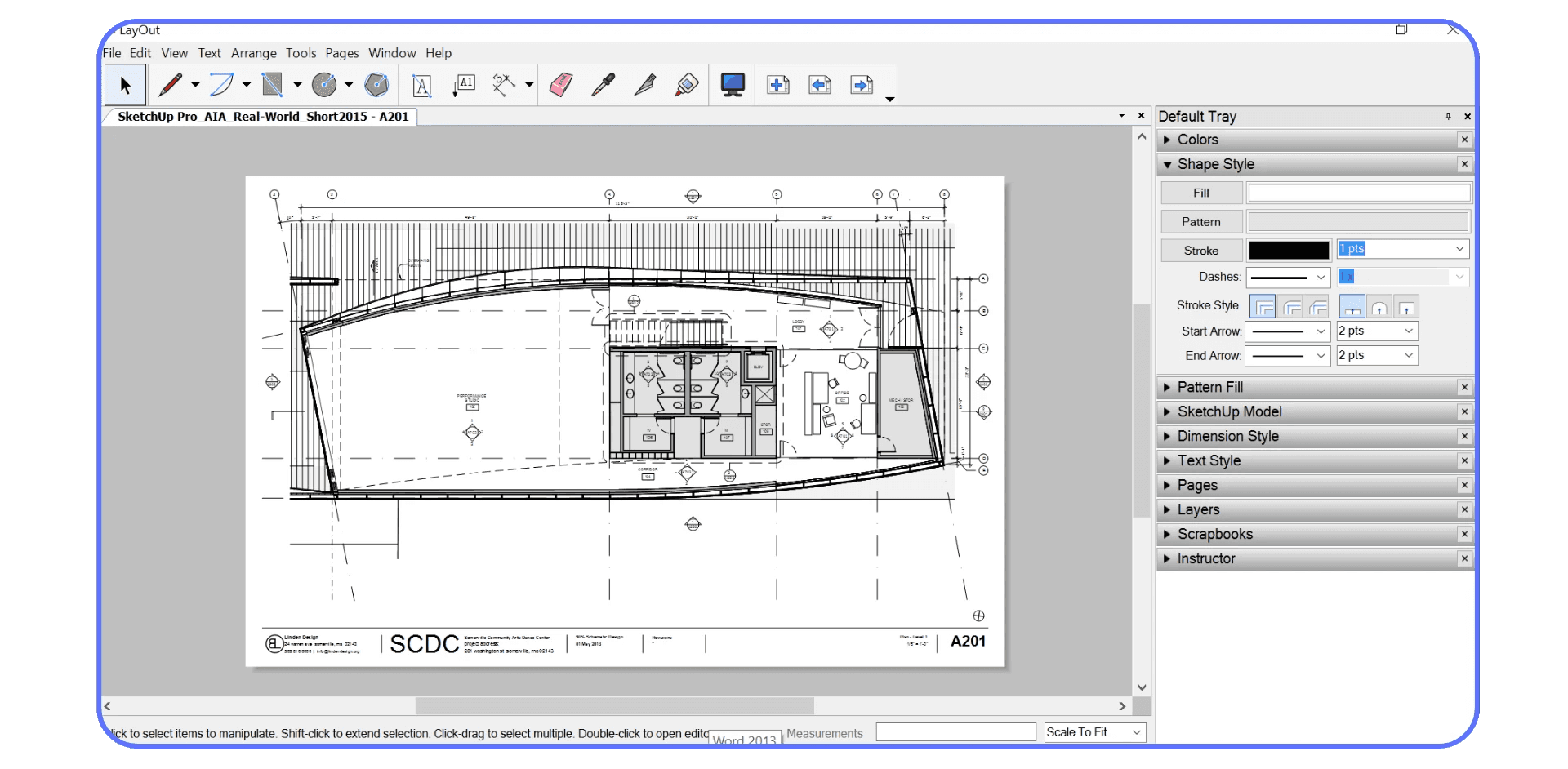

#5. Don’t Use Layout Until You Absolutely Have To

Layout is SketchUp’s 2D documentation tool. It’s powerful. It’s also resource-hungry, especially with vector-based views. Export your model shots as raster images if you're just doing a quick presentation.

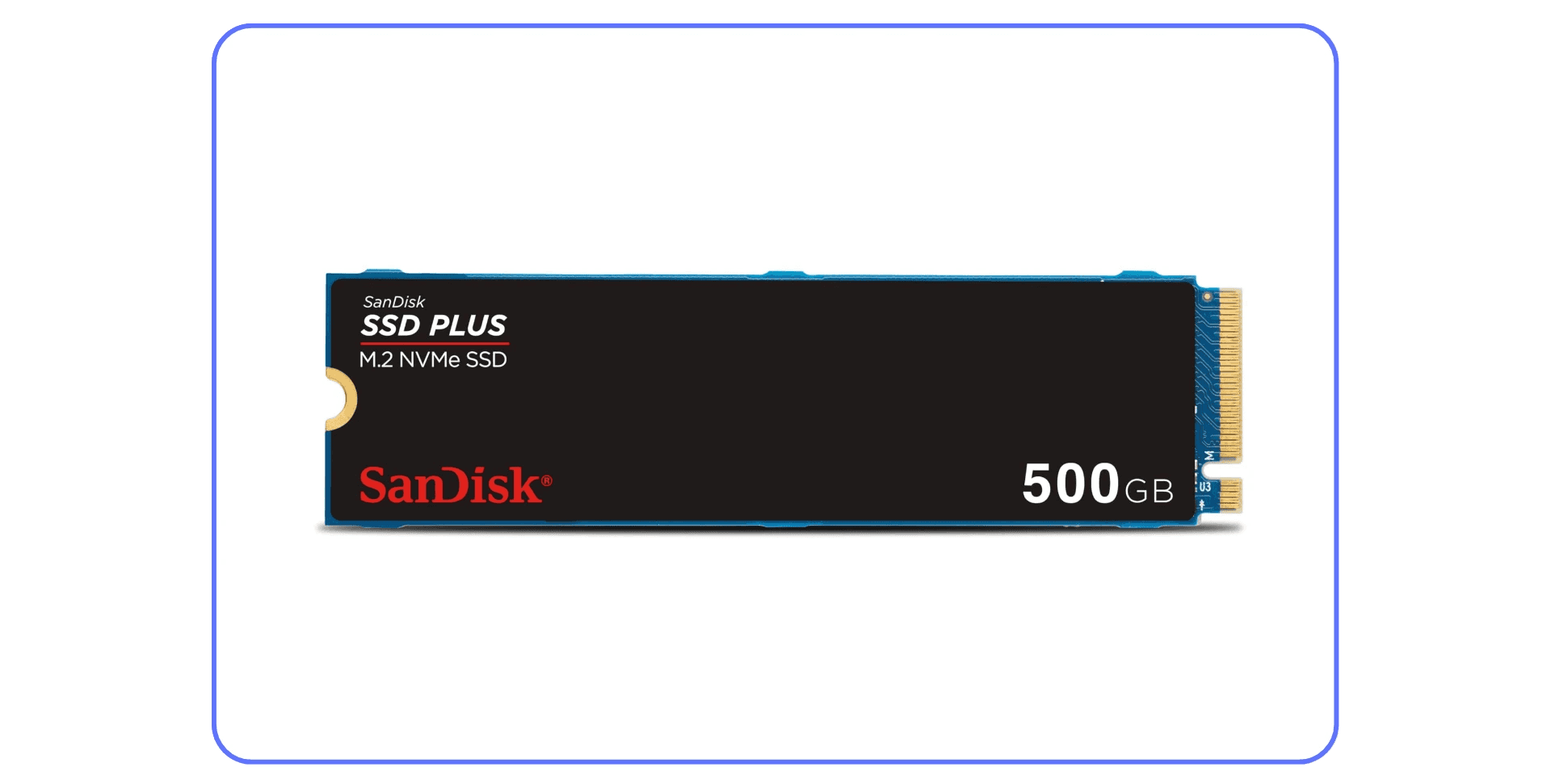

#6. Upgrade to SSD if You Can Swing It

Okay, this one’s technically not free. But if you can find a used SATA SSD for $20, it’ll feel like a brand-new machine. No exaggeration.

Even just replacing your system drive means SketchUp launches faster, autosaves without stalling, and handles file I/O like a modern app again.

If you want to expand your toolkit without dragging down performance, check out these essential SketchUp plugins that balance power with efficiency.

Where Low-End Devices Fail

Let’s be honest. At some point, your machine just can’t keep up.

Maybe it’s when you’re juggling five scenes, each with 100,000+ faces. Or when you’re trying to preview that new Enscape lighting and your laptop starts wheezing like it’s doing CrossFit.

There’s a hard ceiling to what integrated graphics and low-end hardware can handle, and it shows up in a few specific ways.

#1. Viewport Lag Becomes Unbearable

You’re orbiting, and it feels like you’re dragging the model through molasses. Your mouse jumps. Edges stutter. There’s a full-second delay between your input and the screen catching up.

At that point, modeling isn’t just slow. It’s painful.

#2. Rendering Extensions Just... Don’t

Extensions like V-Ray, Enscape, Lumion LiveSync, and Twinmotion technically “work” on low-end systems. But only in the way that microwaving pizza technically cooks it.

Interactive rendering is brutal on integrated graphics. Even previewing materials can freeze up everything. Onboard GPUs weren’t built for this.

#3. You Can’t Keep Everything Open

Running SketchUp, Chrome, Photoshop, and your file explorer? Forget it. With 8 GB of RAM (or less), your machine starts hitting the swap file constantly. That means you’re running off your slow hard drive instead of memory.

It’s a death by a thousand tiny delays.

#4. Plugins Load Slower, Break More Often

Some plugins are lightweight. Others, especially parametric ones like Profile Builder or rendering plugins, drag system resources hard. I’ve had Ruby-based extensions hang for over a minute on low-spec machines. It kills creative momentum.

That’s when you hit the “maybe I need to upgrade” moment. But do you really need a whole new PC? A $1500 workstation? Not necessarily. There’s another option, and now it’s time to talk about that.

SketchUp's viewport can get choppy fast—but it’s still more forgiving than NURBS-heavy tools like Rhino. If you’re deciding between them, here’s a solid Rhino 3D vs SketchUp comparison to help weigh the pros and cons.

See SketchUp Running on Low-End Laptops

Still wondering if your machine can handle it? These videos show SketchUp running on older, low-spec laptops—no dedicated GPU, limited RAM, just like the setup I tested:

• 🎥 SketchUp on Intel UHD Graphics 620 (4GB RAM) — A good look at performance with basic modeling, shadows, and textures.

• 🎥 SketchUp Performance on a 10-Year-Old Laptop — Shows where things start to lag and what’s still usable.

Worth a watch if you want to see what low-end SketchUp use really looks like before making any decisions.

How Vagon Cloud Computer Solved It

There came a point where I had to ask myself: do I really want to spend two grand just to make SketchUp run smoother? The honest answer was no. And I think a lot of people are in the same boat. Buying a new high-end machine isn’t always practical, or necessary. That’s where Vagon Cloud Computer made a huge difference for me.

It’s a remote computer in the cloud that you can access from just about any device: your old laptop, a tablet, even a Chromebook. You log in, pick your setup, and suddenly you’re working with RTX graphics, high RAM, and SSD speeds, none of it relying on your own hardware.

The first time I opened a heavy SketchUp model on Vagon, one that used to freeze my ultrabook regularly, the difference was instantly clear. Everything just worked. Plugins loaded fast, orbiting felt fluid, and even running Enscape, which used to crash my system, was no problem at all. And I didn’t have to mess with settings, drivers, or installations. It felt like borrowing a top-tier workstation whenever I needed it, without the cost or commitment of buying one. If you’re hitting a wall with SketchUp performance but can’t justify upgrading your hardware, Vagon might be the smartest alternative, especially if you just need that extra power once in a while.

What to Try Before Upgrading

Here’s the part I wish someone had told me years ago.

If you're struggling to run SketchUp on a low-end device, don't immediately panic and start pricing out new laptops. There's a smarter way to go about it.

Start Here — Zero-Cost Fixes

1. Kill shadows, edge profiles, and fancy styles in your model.

2. Purge unused geometry and clean up bloated components.

3. Switch to simple, low-poly assets — skip the ultra-detailed downloads.

4. Increase autosave interval (or disable it if things keep freezing).

5. Use raster views over vector in Layout, especially on slow machines.

Honestly, these changes alone can make a night-and-day difference.

If You Can Spend a Little — Targeted Upgrades

• SSD first. Seriously, if you're still on a hard drive, it's wrecking your life.

• RAM second. Go for 16 GB if your system supports it. Huge boost for multitasking.

• External monitor? Helps performance surprisingly often by offloading display rendering.

Still slow?

When It’s Time to Jump

This is your signal:

• You can’t orbit without lag, even in small models

• Plugins are stalling or crashing

• Layout makes your laptop scream

• You’re losing time waiting on SketchUp instead of designing

If that’s you? Try Vagon Cloud Computer. Even just for a week. You’ll know immediately if it’s a game changer.

It’s not about being fancy. It’s about getting your tools to stop fighting you.

Final Takeaways

Look, I’m not here to convince you that SketchUp magically becomes fast on your grandma’s laptop. It doesn’t.

But if you’re just starting out, or working on small to mid-sized models, you don’t need the latest hardware to get stuff done. You can build, sketch, design, and present on modest gear, especially if you’re smart about how you work.

That said, I’ve been on both sides of this.
And after spending way too much time waiting for laggy viewports and frozen autosaves, I realized something:

Your time is more expensive than a faster setup.

Whether that means spending $50 on an SSD… or spinning up a cloud computer for a few hours a week… you’re not buying performance. You’re buying peace of mind. Creative flow. The ability to just work without fighting your machine every five minutes.

So yes, SketchUp can run on a low-end device.
But if you’re serious about your work, or your sanity, it’s worth thinking bigger. Even if your laptop isn’t.

SketchUp works great for beginners and light projects, but if you're curious about what else is out there, there are plenty of SketchUp alternatives for 3D modeling that might suit your workflow better—especially if you're hitting SketchUp’s limits.

FAQs

1. Can I run SketchUp without a dedicated graphics card?
Yes, you can. SketchUp is more CPU-dependent than GPU-dependent, especially for basic modeling. Integrated graphics like Intel UHD or HD chips can handle small to medium projects, but performance drops as scenes get more complex.

2. Is 8GB RAM enough for SketchUp?
Technically, yes—but it’s the bare minimum. You’ll often run into slowdowns if you're multitasking or working with large models. If your system supports it, upgrading to 16GB makes a noticeable difference.

3. What’s the best upgrade for better SketchUp performance on a low-end laptop?
Start with an SSD. Replacing a spinning hard drive speeds up loading, autosaves, and file handling dramatically. If you can, add more RAM next. These two changes alone can extend the life of an old machine.

4. Will SketchUp run on a Chromebook or tablet?
Not natively. However, you can use SketchUp for Web on a Chromebook for basic use, or access a cloud computer (like Vagon) from any device to run full SketchUp with all features.

5. Can I use Enscape, V-Ray, or Twinmotion without a GPU?
Realistically, no. These rendering engines rely heavily on GPU power. Integrated graphics can’t keep up, and you’ll likely deal with freezing, crashes, or painfully slow previews.

6. What are some quick ways to speed up SketchUp on an old PC?
Disable shadows, profiles, and fancy styles. Use low-poly components, purge unused assets, increase autosave intervals, and avoid bloated 3D Warehouse downloads. These tweaks reduce system load right away.

7. Is Vagon a good alternative to upgrading my hardware?
If you're running into performance walls and don’t want to spend on a new machine, Vagon is a smart alternative. It gives you access to a high-performance computer in the cloud—perfect for SketchUp, rendering, and heavy workloads—without needing new hardware.
