Substance Painter (v.2019-)

Substance Painter is a leading tool for 3D texturing and material creation, widely used in game development, animation, and other industries requiring high-quality, detailed textures. It offers features like real-time viewport rendering and non-destructive workflows, making it essential for handling complex models and textures. To maximize performance, enabling GPU and RTX acceleration is critical.

How to Enable GPU and RTX Acceleration in Substance Painter

1. Launch Substance Painter
   Navigate to the default installation directory:
   C:\Program Files\Allegorithmic\Substance Painter\Substance Painter.exe

2. Open Settings

   • Click on Edit in the menu bar.



   • Select Settings.

3. Enable GPU Raytracing

   • Go to General settings.

   • Scroll down to Baking Options and ensure GPU Raytracing is checked (it’s enabled by default in most recent versions).

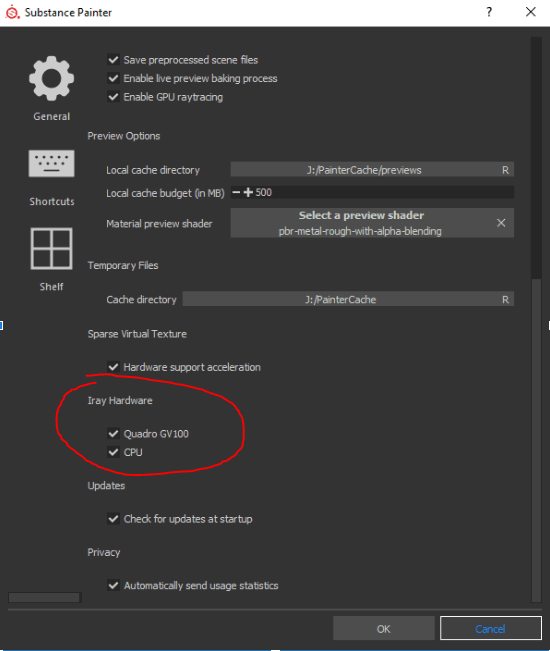

4. Configure Iray Hardware

   • In the Iray hardware section, select both CPU and GPU options for a balance between CPU and GPU performance. This enables faster rendering times with the GPU handling the heavy lifting.



By following these steps, you will unlock GPU acceleration for faster baking and improved real-time performance.

Top Tips to Speed Up Substance Painter

Here are some strategies to optimize Substance Painter's performance:

1. Lower Texture Resolution During Editing
   Begin with lower texture resolutions, such as 2K, during your editing phase. Only switch to 4K or higher when you’re ready for final exports, as higher resolutions put more strain on your system.

2. Simplify Viewport Settings
   Reduce the viewport resolution or temporarily disable effects like anti-aliasing and post-processing when working with large models. This makes real-time interactions much smoother.

3. Manage Smart Materials
   Smart materials are computationally intensive. Use them selectively and disable unused layers to minimize system load.

4. Turn Off Unused Meshes and Channels
   If specific meshes or texture channels aren’t required at a given moment, turn them off. This reduces memory and processing overhead, improving performance.

5. Keep GPU Drivers Up-to-Date
   Make sure your GPU drivers are updated to the latest version. Both NVIDIA and AMD regularly release optimizations that improve compatibility and performance for creative software.

These steps will ensure Substance Painter runs efficiently, even when handling complex, resource-heavy projects.

Substance Painter System Requirements

Minimum Requirements:

• Operating System:

  • Windows 10 64-bit Version 22H2.

  • macOS 12 Monterey.

  • Enterprise ETLA RHEL 8.6 or later; Steam Ubuntu 22.04.1 LTS.

• Processor: Intel Core i5 or AMD Ryzen 5.

• RAM: 16 GB.

• Graphics Card: NVIDIA GeForce GTX 1060, NVIDIA Quadro P2200, AMD Radeon RX 580, or AMD Radeon Pro 5300M.

• VRAM: 8 GB.

• Storage: SSD with 30 GB of available space.

Recommended Specifications:

• Operating System:

  • Windows 11 64-bit Version 21H2.

  • macOS 13 Ventura.

  • Enterprise ETLA RHEL 8.6 or later; Steam Ubuntu 22.04.1 LTS or later.

• Processor: Intel Core i7 or AMD Ryzen 7.

• RAM: 32 GB.

• Graphics Card: NVIDIA GeForce RTX 3080, NVIDIA Quadro RTX A4000, AMD Radeon RX 6800 XT, or AMD Radeon Pro W7700.

• VRAM: 16 GB.

• Storage: SSD with 50 GB of available space.

Optimal Specifications:

• Operating System:

  • Windows 11 64-bit Version 22H2.

  • macOS 14 Sonoma.

  • Enterprise ETLA RHEL 8.6 or later; Steam Ubuntu 22.04.1 LTS or later.

• Processor: Intel Core i9 or AMD Ryzen 9.

• RAM: 64 GB.

• Graphics Card: NVIDIA GeForce RTX 4090, NVIDIA Quadro RTX 5000 Ada Generation, AMD Radeon RX 7900 XTX, or AMD Radeon Pro W7800.

• VRAM: 24 GB.

• Storage: SSD with 70 GB of available space.

Meeting these specifications will help you get the most out of Substance 3D Painter, ensuring efficient workflows and high-quality outputs. Keep in mind that more complex projects, especially those involving high-resolution textures or intricate materials, will benefit from higher-end hardware configurations.

Top Recommended GPUs for Substance Painter

For the best performance in Substance Painter, having a powerful GPU is essential, especially if you use ray tracing or work with high-resolution textures. Below are the top recommended GPUs:

1. NVIDIA GeForce RTX 4090
   The RTX 4090 offers top-tier performance, ideal for users working with 8K textures and complex, multi-layered scenes. It’s the go-to choice for professionals needing unparalleled speed and reliability.

2. NVIDIA GeForce RTX 3080
   A more affordable option with strong performance, the RTX 3080 is perfect for artists who want a balance between price and power. It supports real-time ray tracing and performs well with high-resolution textures.

3. NVIDIA RTX 2080
   Known for its excellent ray tracing capabilities, the RTX 2080 is a solid choice for speeding up baking and handling high-resolution projects with ease.

4. NVIDIA RTX 3060
   This GPU offers excellent performance for mid-range users, handling 4K textures and ray tracing while being budget-friendly. It's an excellent choice for professionals on a tighter budget.

5. AMD Radeon RX 6800
   Although it doesn’t support NVIDIA’s Iray engine, the Radeon RX 6800 delivers strong performance for Substance Painter, especially for users who prefer AMD’s ecosystem.

These GPUs provide the best performance for artists using Substance Painter, ensuring fast rendering and smooth workflows.
