Welcome to AutoCAD, the gold standard in design and drafting software for architects, engineers, and designers worldwide. Whether you're crafting intricate 2D blueprints or exploring dynamic 3D models, AutoCAD empowers creators to bring ideas to life with precision and efficiency. As an essential tool in modern design, AutoCAD has become a gateway for countless innovative projects across various industries.

In this guide, we'll cover everything a beginner needs to get started, including mastering 2D drawings, diving into 3D modeling, and exploring essential plugins to supercharge your workflow.

Feeling inspired? Check out AutoCAD Inspirational Projects to see how professionals are pushing the boundaries of design!

What is AutoCAD?

Architectural Model on AutoCAD running on a cloud computer

AutoCAD is a computer-aided design (CAD) software developed by Autodesk, widely regarded as the industry leader for creating detailed 2D drawings and 3D models. Since its inception, AutoCAD has become the go-to tool for professionals in architecture, engineering, product design, and construction, making it an essential part of modern design workflows.

Why is AutoCAD so important? It streamlines the drafting process by allowing users to create, edit, and share precise drawings faster than traditional manual methods. Its versatility has made AutoCAD indispensable across various industries—whether you're drafting floor plans, modeling a mechanical component, or designing a product prototype, AutoCAD gives you the control and flexibility needed to get the job done.

Industries using AutoCAD include:

  • Architecture: Draft detailed floor plans, elevations, and section views.

  • Engineering: Design mechanical parts, electrical schematics, and infrastructure layouts.

  • Product Design: Bring innovative product concepts to life with both 2D and 3D views.

  • Construction: Visualize large-scale projects and collaborate across teams for greater accuracy.

AutoCAD's comprehensive toolset, powerful customization features, and broad integration options are key reasons why it has remained the industry standard for decades. Its capacity to deliver precision and adaptability is unmatched, setting it apart from other CAD software.

A Brief History of AutoCAD

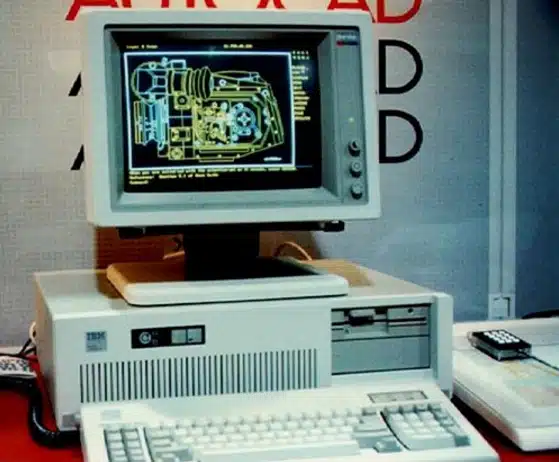

old versions of autoCAD

AutoCAD made its debut in 1982, transforming the design industry overnight. Before its arrival, drafting was a laborious manual process. AutoCAD allowed users to digitize their drawings, enabling faster edits, easy sharing, and enhanced accuracy. This breakthrough gave design professionals a powerful new way to work, replacing drafting tables with computers.

Over the years, AutoCAD has continued to evolve, introducing advanced features like 3D modeling, cloud integration, and mobile access. These innovations have kept it at the forefront of technology, allowing professionals to design anywhere, anytime. Today, AutoCAD is recognized as a cornerstone in digital design and is used worldwide by millions of architects, engineers, and designers.

Key Features and Capabilities

AutoCAD’s features are extensive, designed to accommodate every aspect of drafting and modeling. Here’s a breakdown of some of the most important capabilities:

2D Drafting: Creating Detailed Plans and Schematics

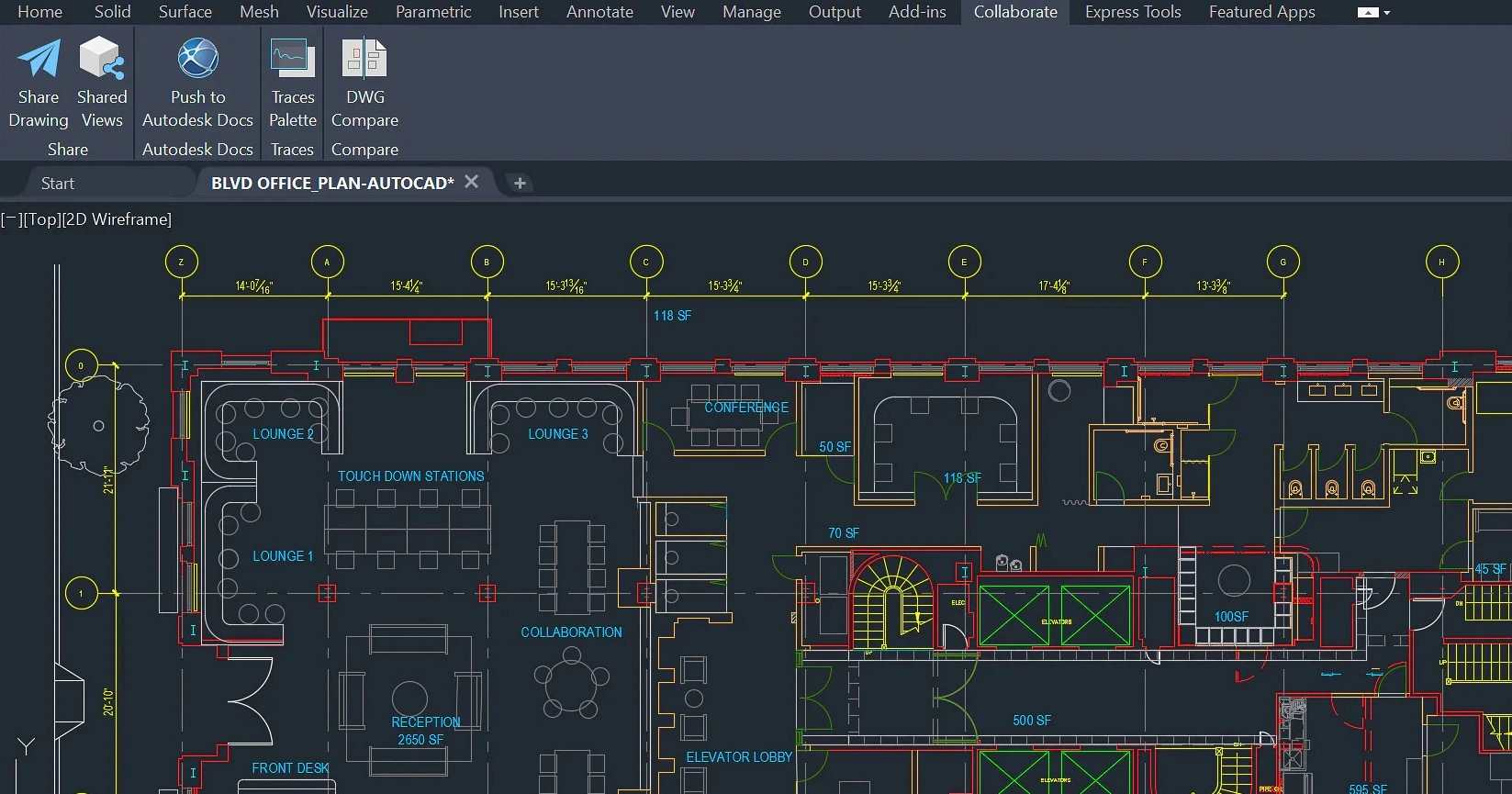

2D drafting on AutoCAD running on a cloud computer

AutoCAD excels in 2D drafting, which forms the backbone of architectural and engineering design. Whether you're creating floor plans, electrical diagrams, or mechanical schematics, the intuitive drafting tools allow for unmatched precision. You can create and manipulate lines, arcs, circles, and various shapes, apply dimensioning, and easily edit your drawings.

Features such as layer management make it easy to separate different aspects of a drawing, such as electrical plans from structural elements, ensuring clarity and organization. You can also use tools like hatch patterns, which enable you to differentiate materials or areas visually.

3D Modeling: Developing Complex Models and Designs

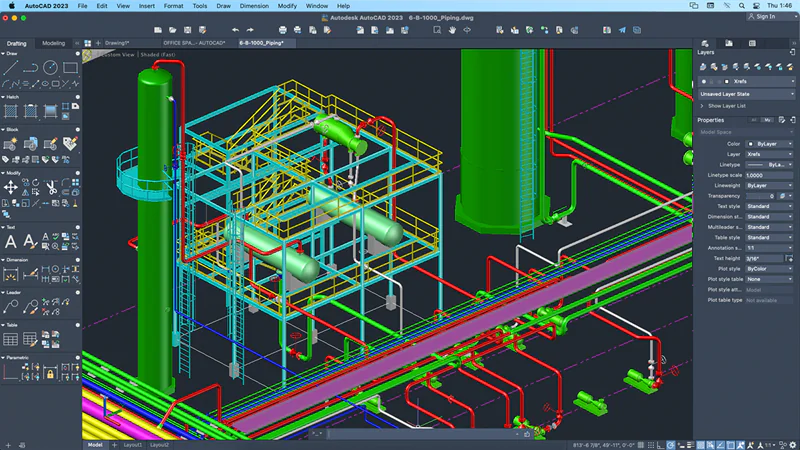

3D modeling on AutoCAD

For professionals looking to bring their ideas to life in 3D, AutoCAD’s 3D modeling capabilities are robust and versatile. You can create 3D surfaces, solids, and meshes, allowing for everything from simple extrusions to highly detailed, complex models. This feature is widely used in product design, architecture, and mechanical engineering, giving designers the ability to visualize and prototype their designs.

The software allows for detailed views of your 3D models from every angle, enabling you to inspect and refine your designs before moving to production. With features like rendering and lighting options, you can also create photorealistic images of your models, adding an extra layer of professionalism to your presentations.

Customization and Automation: Tailoring AutoCAD to Your Workflow

One of AutoCAD’s greatest strengths is its ability to adapt to the unique needs of its users through customization and automation. You can create custom toolbars, palettes, and even write scripts or macros to automate repetitive tasks, saving you hours of work. The software also supports the use of AutoLISP (a programming language for AutoCAD), allowing for deeper customization and tailored workflows.

For those who want to push the boundaries even further, AutoCAD’s extensive plugin ecosystem offers endless possibilities. From productivity boosters to industry-specific tools, plugins can extend the software’s functionality significantly. Explore some of the best options in our Top AutoCAD Plugins.

Why Learn AutoCAD?

Whether you’re a beginner just starting your design journey or a seasoned professional looking to refine your skills, learning AutoCAD offers a wide array of benefits that extend beyond simply mastering software. AutoCAD’s versatility and widespread industry adoption make it an invaluable tool for anyone interested in design, engineering, or architecture.

Benefits for Beginners and Professionals

For beginners, AutoCAD provides a solid foundation in digital design, offering intuitive tools that make drafting and modeling accessible. Its extensive resources, including tutorials and a robust user community, make the learning curve manageable. Once you get comfortable, the possibilities for growth and specialization are endless.

For professionals, AutoCAD is essential for enhancing efficiency and precision. Its customization options and advanced capabilities enable you to handle more complex projects with ease, giving you a competitive edge in your field.

Real-World Applications of AutoCAD Skills

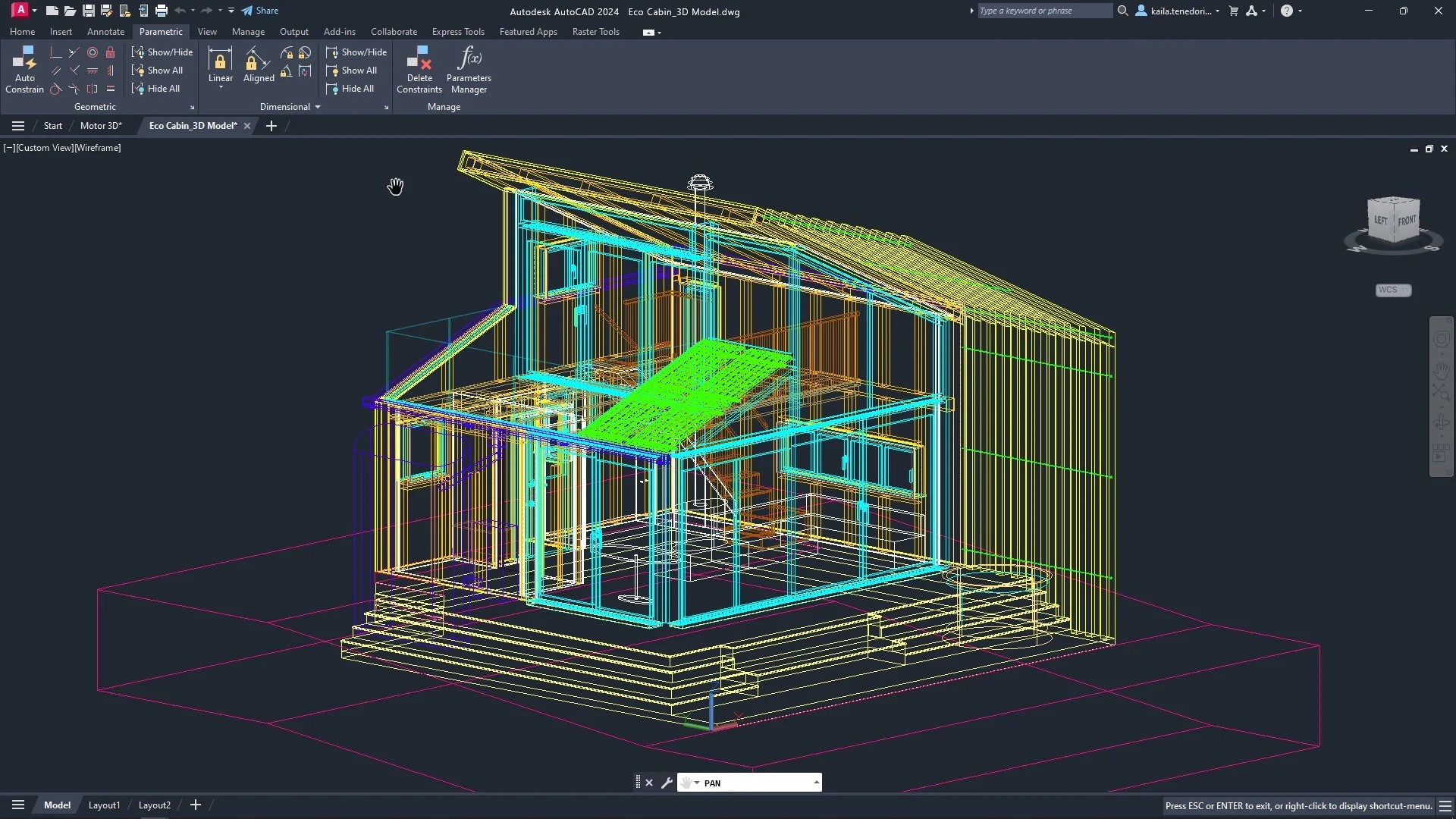

modeling on AutoCAD as a real world application

AutoCAD isn’t just about learning software—it’s about acquiring a skill set that has real-world applications across various industries. Mastering AutoCAD allows you to:

  • Draft detailed architectural plans for homes, commercial buildings, and infrastructure.

  • Design mechanical components and assemblies in engineering.

  • Develop product prototypes with both 2D and 3D views for manufacturing.

  • Create civil engineering plans for urban design, roads, and bridges.

Having AutoCAD skills gives you the ability to visualize concepts, communicate ideas more effectively, and collaborate with teams across the globe.

Career Opportunities

AutoCAD proficiency can open doors to numerous career paths, including:

  • Architectural Designer

  • Mechanical Engineer

  • Product Designer

  • Civil Engineer

  • CAD Drafter/Technician

In these roles, AutoCAD is often a mandatory requirement, with companies expecting designers and engineers to have a strong understanding of the software. Proficiency in AutoCAD can make you a more attractive candidate and improve your job prospects, especially as industries increasingly rely on CAD tools to streamline design processes.

Demand for AutoCAD Skills in the Job Market

The demand for AutoCAD skills continues to grow, with companies across multiple sectors seeking professionals capable of using the software to design and optimize projects. Whether you’re in construction, product development, or manufacturing, AutoCAD proficiency is a sought-after skill that enhances your career prospects and often results in higher-paying roles.

Learning AutoCAD is more than just a technical skill—it’s an investment in your career. With its diverse applications and industry demand, mastering AutoCAD can help you achieve both personal growth and professional success.

Getting Started with AutoCAD

Starting your AutoCAD journey might feel overwhelming, but once you get a grasp of the essentials, you’ll unlock an incredibly powerful tool that can take your designs to new heights. This section will guide you through the first steps, from setting up your system to getting familiar with the user interface and customizing your workspace to maximize efficiency.

System Requirements and Installation

Before diving into AutoCAD, it’s crucial to ensure your computer meets the system requirements to run the software smoothly. AutoCAD is resource-intensive, so having a properly equipped system will save you a lot of frustration and lag during your design process.

Minimum System Requirements

  • Operating System: Windows 10 or macOS 11.0 or later

  • Processor: 2.5–2.9 GHz (3+ GHz recommended for better performance)

  • RAM: 8 GB (16 GB or more recommended)

  • Graphics Card: DirectX 11 compliant with at least 1 GB VRAM (4 GB recommended)

  • Disk Space: 7 GB for installation

  • Display: 1920x1080 resolution or higher

Installation Steps

  1. Purchase or subscribe to AutoCAD from the Autodesk website.

  2. Download the installer for your operating system.

  3. Run the installer and follow the on-screen prompts to complete the installation. Be sure to select the components that suit your workflow, such as additional toolsets for architecture or mechanical design.

  4. Once installed, launch AutoCAD and sign in with your Autodesk account to begin.

Navigating the User Interface

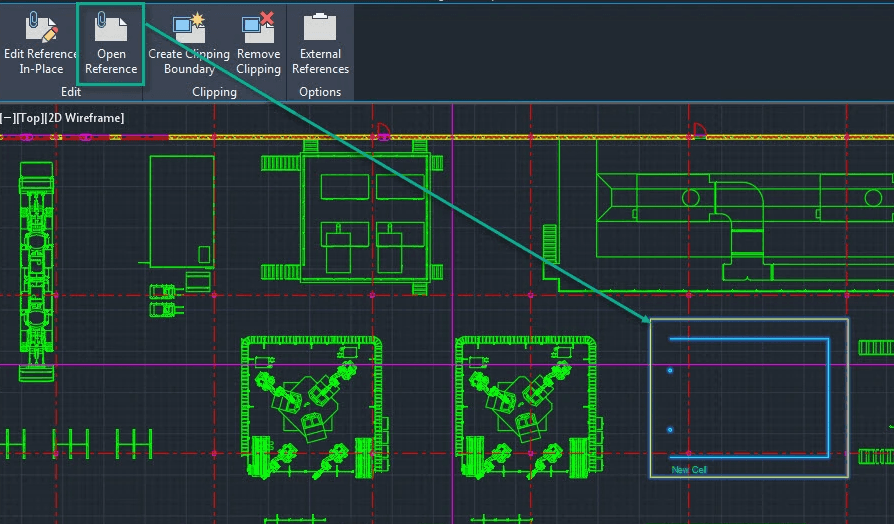

AutoCAD interface running on a cloud computer

Upon launching AutoCAD, you’re presented with a workspace that can appear dense at first. However, understanding the user interface (UI) is essential for working efficiently. The UI is designed to give you quick access to tools and settings without cluttering your workspace.

Toolbars and Menus: Essential Tools and Settings

AutoCAD's ribbon at the top of the screen organizes all the primary tools into tabs like Home, Insert, Annotate, and View. Each tab contains panels grouped by functionality. For example, the Home tab includes drawing tools like lines, polylines, rectangles, and circles, while the Annotate tab holds tools for adding dimensions and text.

Key tools you’ll frequently use:

  • Draw Toolbar: Includes line, polyline, circle, rectangle, and arc tools to create shapes.

  • Modify Toolbar: This section features tools like move, copy, rotate, and scale, essential for editing existing objects.

  • Layers Panel: A critical component for organizing your drawing into layers, allowing you to manage different parts of your design separately (e.g., electrical vs. plumbing layers in architectural plans).

  • Properties Panel: Offers detailed information and controls for selected objects, such as color, line type, and scale.

You can customize the ribbon to display only the tabs and panels you use frequently. For example, if you’re focused on 3D modeling, you can hide 2D-related tools to declutter the interface.

Command Line: Efficient Design with Text Commands

Command Line on AutoCAD is the most powerful and time saving tool

One of the most powerful and time-saving aspects of AutoCAD is the Command Line at the bottom of the screen. Instead of clicking through menus, you can type commands directly into this bar to speed up your workflow.

For example:

  • Typing L initiates the Line tool.

  • Typing C activates the Circle tool.

  • Typing M allows you to Move selected objects.

The Command Line not only speeds up your process but also provides feedback, suggestions, and history of previous commands. AutoCAD will often prompt you with additional options based on the command you entered, making it easier to perform complex actions like defining specific lengths or angles.

Commands can be combined for efficient workflows. For instance, after drawing a rectangle, typing TR will activate the Trim tool, allowing you to cut specific parts of the drawing instantly.

Be sure to familiarize yourself with keyboard shortcuts, which can drastically boost your productivity. For a comprehensive list, check out Essential AutoCAD Keyboard Shortcuts.

Basic Settings and Preferences

To work efficiently in AutoCAD, it’s important to customize your settings and preferences according to your needs. This not only makes your workspace more comfortable but also enhances your overall productivity.

Setting Up the Workspace

AutoCAD offers various preset workspaces based on the type of work you’ll be doing. For example, there’s a Drafting & Annotation workspace for 2D design, and a 3D Modeling workspace for working with 3D solids and surfaces. You can switch between these easily via the Workspace Switcher located at the bottom-right corner of the screen.

If you prefer a custom setup, you can save your workspace configurations:

  1. Arrange the toolbars, palettes, and panels to your liking.

  2. Go to the Workspace Switcher, select Save Current As, and give your workspace a name.

  3. You can now toggle between default and custom workspaces as needed.

Customizing Preferences

In the Options menu, you’ll find various settings that can be adjusted to suit your preferences:

  • Display settings allow you to change the background color, which many users prefer to set as black or dark gray to reduce eye strain.

  • Selection preferences let you customize how objects are selected (e.g., clicking, crossing window, or lasso).

  • Snap and grid settings help you align objects precisely by setting snap distances and grid visibility.

Additionally, AutoCAD allows you to customize keyboard shortcuts to streamline your workflow. If you frequently use certain tools, you can create your own shortcuts or modify existing ones for quicker access.

Saving and AutoSave Settings

To avoid losing work, it's crucial to enable AutoSave. This feature automatically saves your drawing at preset intervals:

  1. Go to the Options menu.

  2. In the Open and Save tab, enable AutoSave and set your preferred time interval (e.g., every 10 minutes).

By customizing AutoCAD's workspace and preferences to match your workflow, you can significantly reduce the time spent on repetitive tasks and focus on creativity and precision. These simple adjustments can make your AutoCAD experience smoother and more enjoyable from day one.

Getting familiar with the AutoCAD interface and customizing it for your specific needs is essential for building a solid foundation in CAD design. Once you’ve got the basics down, you’ll be ready to dive deeper into more advanced features, turning AutoCAD into a true extension of your creative process.

AutoCAD Basics

As you begin to navigate AutoCAD, mastering the basics is crucial. This foundational knowledge will allow you to create precise 2D drawings and 3D models while efficiently navigating the interface. In this section, we’ll cover the essentials, from the user interface to key drawing and modifying tools, and the importance of layers and annotations. Whether you’re a beginner or just looking to brush up on your skills, these basics are critical for getting the most out of AutoCAD.

AutoCAD User Interface

The AutoCAD User Interface (UI) is designed for efficiency, with all the tools you need right at your fingertips. Familiarizing yourself with the UI will help you quickly access essential features, allowing you to focus on your designs instead of hunting for tools.

Workspace Overview

The AutoCAD workspace consists of several key components:

  • Ribbon: Located at the top of the screen, this contains tabs organized by functionality, such as Home, Insert, Annotate, and View. Each tab holds panels with grouped commands for drawing, editing, and managing your project.

  • Drawing Area: This is where your designs come to life. It’s the largest section of the UI, providing a blank canvas for your sketches, models, and drafts.

  • Command Line: Positioned at the bottom, the Command Line allows for quick access to commands through text input. By typing commands directly, you can significantly speed up your workflow.

  • Status Bar: Located at the bottom of the interface, the status bar provides essential toggles for grid settings, snap options, and object tracking. It helps with precision and control while working on your drawings.

Customizing the UI

Customizing the AutoCAD UI to match your preferences is key to working efficiently. You can:

  • Dock or hide toolbars: For a cleaner workspace, you can dock commonly used toolbars like the Draw and Modify tools, or hide panels that aren’t relevant to your current work.

  • Save custom workspaces: Once you’ve configured the interface to suit your workflow, save it as a custom workspace so you can easily switch between different setups depending on the task at hand.

Customizing your workspace ensures that all the tools and panels you need are accessible, allowing you to work faster and with more focus.

Basic Drawing Tools

The drawing tools in AutoCAD form the backbone of your designs. These essential tools allow you to create shapes, lines, and figures that serve as the building blocks for more complex projects.

Key Drawing Tools

  • Line: One of the most commonly used tools, the Line tool (shortcut: L) allows you to draw straight lines between two points. It's fundamental for creating everything from simple sketches to detailed architectural plans.

  • Rectangle: The Rectangle tool (shortcut: REC) helps you quickly draw rectangles and squares, which are often used for floor plans, rooms, and structural layouts.

  • Circle: The Circle tool (shortcut: C) allows you to create perfect circles with precision, either by specifying a center point and radius or by using other geometric constraints.

  • Polyline: This tool creates continuous lines or curves that can be adjusted and edited as a single object.

Snapping for Precision

Precision is a key strength of AutoCAD, and tools like Object Snap (often referred to as Osnap) ensure that you can align objects and points with high accuracy. By using snapping, your cursor will automatically align to endpoints, midpoints, or centers, making it easier to create perfectly aligned and proportioned designs.

Modifying Tools

Once your basic drawing is in place, you’ll likely need to modify those shapes and objects to refine your design. AutoCAD’s Modify tools allow for quick adjustments, saving you the trouble of redrawing elements from scratch.

Common Modifying Tools

  • Move: The Move tool (shortcut: M) lets you relocate selected objects to a different part of your drawing area.

  • Copy: With the Copy tool (shortcut: CO), you can duplicate objects, making it easy to create repeating elements like windows or columns in architectural designs.

  • Rotate: The Rotate tool (shortcut: RO) allows you to rotate objects around a base point, which is helpful for adjusting the orientation of objects.

  • Mirror: The Mirror tool (shortcut: MI) creates a mirrored copy of an object across a defined axis. This is especially useful in symmetrical designs, such as creating a balanced floor plan.

  • Scale: With the Scale tool (shortcut: SC), you can resize objects while maintaining their proportions. This tool is essential when adjusting the size of imported elements or when working with designs at various scales.

These modification tools are essential for adjusting and fine-tuning your designs, offering greater flexibility without the need to redraw your project.

Layers and Annotations

Layers in AutoCAD can help you stay organized

One of the most powerful organizational features in AutoCAD is the layer system, which allows you to separate different components of a drawing into distinct categories, such as walls, electrical plans, or plumbing layouts.

Understanding Layers

Layers are like transparent sheets stacked on top of each other, where each sheet holds a different set of information. This allows you to:

  • Organize complex drawings: By placing different elements on separate layers (e.g., doors on one layer, furniture on another), you can manage each aspect of the design without cluttering the workspace.

  • Control visibility: Layers can be turned on or off as needed. For example, you can hide plumbing layers while working on structural elements to avoid distraction.

To create a layer:

  1. Open the Layer Properties Manager from the Home tab.

  2. Click on New Layer, give it a name, and assign properties like color or line type.

  3. When drawing, select the appropriate layer to keep everything organized.

Annotations and Dimensions

Annotations and dimensions are crucial for communicating details in your drawings, whether for construction, engineering, or product design.

  • Text: Use the Text tool (shortcut: T) to add notes or labels directly to your drawings. You can customize font size, color, and placement for clarity.

  • Dimensions: The Dimension tool (shortcut: DIM) allows you to add measurements, ensuring that all aspects of your design are properly annotated for accuracy. There are various dimension styles for linear, angular, and radial measurements, depending on the type of object being measured.

  • Hatch: The Hatch tool (shortcut: H) fills areas with patterns or solid colors, allowing you to visually differentiate materials or sections in a drawing.

Annotations ensure that your design is not just visually clear, but also communicates the necessary information to others, whether for construction, manufacturing, or approval purposes.

Text Styles and Multiline Text

AutoCAD also allows you to create text styles for annotations. The Multiline Text (MText) tool offers advanced formatting, including bullet points, alignment options, and fonts. This makes it easy to create clear and professional-looking annotations throughout your design.

By mastering these basic tools and concepts—user interface navigation, drawing and modifying tools, and the use of layers and annotations—you'll be well on your way to becoming proficient in AutoCAD. These skills will form the foundation for tackling more complex projects and exploring advanced features in future stages of your AutoCAD journey.

Intermediate Features of AutoCAD

Once you’ve mastered the basics of AutoCAD, it’s time to explore its more advanced features that can further enhance your productivity and streamline your workflow. These intermediate features allow for greater precision, customization, and efficiency, making your projects more dynamic and easier to manage. In this section, we’ll cover creating reusable blocks, customizing AutoCAD, working with 3D models, and utilizing assets and templates.

Blocks and Groups

Blocks in AutoCAD can be very useful

As you start working on larger and more complex designs, Blocks and Groups become essential tools for organizing and reusing objects in your drawings.

Creating Reusable Blocks

A Block in AutoCAD is essentially a set of objects that are combined into a single, reusable entity. Blocks are particularly useful for objects that are used repeatedly within the same drawing or across multiple projects, such as doors, windows, furniture, or mechanical components.

How to Create a Block:

  1. Select the objects you want to turn into a block.

  2. Type BLOCK in the command line or select the Block Definition panel from the Insert tab.

  3. Assign a name to the block and choose a base point for insertion.

  4. Save the block to your drawing, and it can now be inserted multiple times without having to redraw the object.

Blocks not only save time but also help maintain consistency within your designs. If you update the block definition, all instances of that block in your drawing will automatically update.

Managing Groups of Objects

Groups are similar to blocks but are more flexible, allowing you to combine objects temporarily without merging them into a single entity. Groups are useful when you need to manipulate several objects together while still retaining the ability to edit individual elements.

To create a group:

  1. Select the objects you wish to group.

  2. Type GROUP in the command line or find the Group tool under the Home tab.

  3. Name the group and manage it as a single object, but retain the ability to ungroup at any time.

Using Blocks and Groups allows you to organize your drawings more efficiently, particularly when working with repetitive or complex elements.

AutoCAD Customization

One of AutoCAD's greatest strengths lies in its ability to adapt to your specific needs through customization. Whether it’s creating custom commands, writing macros, or integrating plugins, AutoCAD can be tailored to match your workflow.

Custom Commands and Macros

If you find yourself frequently performing the same set of actions, you can automate these tasks by creating custom commands or writing macros. AutoCAD’s built-in LISP (a programming language) and the Action Recorder make this process straightforward.

Creating a Custom Macro:

  1. Access the Action Recorder from the Manage tab.

  2. Start recording your actions, such as drawing, modifying, or setting preferences.

  3. Save the macro with a name and assign it a keyboard shortcut for easy use.

This automation can significantly speed up your workflow, especially for repetitive tasks, such as setting up drawing templates or applying consistent styles.

AutoCAD Plugins

To further enhance your capabilities, you can install a wide variety of plugins that extend AutoCAD's functionality. These plugins can range from productivity boosters to industry-specific tools, helping you work smarter, not harder. For instance, plugins like Layer Manager help manage complex drawings more effectively, while tools like Drawing Purge clean up your files to improve performance.

For a deeper dive into the best plugins available, check out Top AutoCAD Plugins.

By taking advantage of AutoCAD’s customization options, you can make the software work for you, streamlining your design process and boosting overall efficiency.

Working with 3D in AutoCAD

While AutoCAD is well-known for its 2D drafting capabilities, it also offers a powerful suite of 3D modeling tools that allow you to create complex models and visualize designs from every angle. Transitioning to 3D is an essential step for many professionals in architecture, product design, and mechanical engineering.

Basic 3D Commands

AutoCAD’s 3D modeling environment lets you work with solids, surfaces, and meshes. Some of the basic commands you’ll need to get started include:

  • Extrude: This command allows you to take a 2D shape, such as a rectangle or circle, and extend it into the third dimension to create a 3D solid. To extrude an object, select the 2D profile and type EXTRUDE into the command line, then specify the height or direction.

  • Revolve: The Revolve command takes a 2D profile and rotates it around an axis to create a 3D object, such as a cylinder or cone. This is especially useful for objects like wheels or mechanical parts with circular symmetry.

  • 3D Rotate: Unlike the standard 2D rotation tool, 3D Rotate allows you to rotate objects in three dimensions. This is useful for adjusting the orientation of your model for more accurate presentations or analysis.

  • ViewCube: Located in the top-right corner of your drawing area, the ViewCube lets you easily navigate between standard views (top, front, side, isometric) in 3D space, ensuring you’re working from the correct perspective.

Navigating the 3D Workspace

The 3D workspace in AutoCAD includes additional toolbars for managing solid modeling, surface creation, and rendering. The Visual Styles toolbar is particularly important, as it lets you switch between different viewing modes such as Wireframe or Shaded views to better visualize your 3D model.

Mastering these 3D tools will not only help you create more complex and realistic models but also allow you to communicate your ideas more effectively in presentations or when collaborating with other professionals.

AutoCAD Assets and Templates

AutoCAD assets can help save you time

To improve efficiency and maintain consistency across projects, AutoCAD provides the ability to use and manage assets and templates. These features are particularly useful for professionals who work on similar types of projects or need to maintain specific standards across their designs.

Using AutoCAD Assets

AutoCAD offers a variety of built-in assets, such as blocks, hatch patterns, and line types, which you can use to enhance your drawings. Assets like pre-designed furniture, structural elements, or even mechanical components can be inserted directly into your projects, saving you time and ensuring consistency.

You can also import or create your own assets, which can be stored and reused across multiple projects. For instance, you could create a library of standard doors and windows for architectural designs or standard parts for mechanical assemblies.

For more on how to manage and utilize assets, explore AutoCAD Assets.

Creating and Using Templates

Creating templates is a powerful way to ensure that your drawings follow specific standards or styles across multiple projects. Templates can include predefined settings such as:

  • Layers: Including standard layer names, colors, and line types.

  • Title blocks: Adding a consistent title block with your company’s logo, project information, and date fields.

  • Text styles: Ensuring all annotations follow the same font, size, and formatting guidelines.

  • Dimensions and scales: Setting default dimension styles and plot scales for your drawings.

To create a template, set up your drawing with all the necessary settings, then save the file as a .DWT (Drawing Template) file. When starting a new project, simply open your template to ensure that all settings are automatically applied, helping you maintain consistency and save time.

By diving into these intermediate features of AutoCAD, you can significantly enhance your productivity and take on more complex projects. From managing reusable blocks and customizing commands to exploring 3D modeling and optimizing with templates, these tools and techniques will help you work smarter, not harder. These intermediate skills are essential for advancing in your AutoCAD journey and achieving professional results with greater ease and precision.

AutoCAD Workflow Tips

Mastering AutoCAD isn’t just about knowing how to use the tools—it’s also about optimizing your workflow for speed, efficiency, and accuracy. Whether you’re working on small-scale designs or managing large, complex projects, there are a few strategies that can make your AutoCAD experience smoother and more organized. In this section, we’ll cover how to use templates, organize your projects effectively, and employ essential keyboard shortcuts to boost your productivity.

Using Templates for Efficiency

One of the most effective ways to speed up your projects is by creating and using templates. Templates are pre-configured files that contain all the essential elements and settings you need for specific types of projects. By starting with a template, you can avoid repetitive setup tasks and maintain consistency across your drawings.

Benefits of Using Templates:

  • Pre-configured settings: Templates can store predefined layers, dimension styles, text styles, and units, ensuring every new drawing starts with your preferred settings.

  • Consistency: By using a standard template, all of your projects will follow the same layout and design standards, making collaboration easier.

  • Time-saving: You no longer have to waste time setting up the same configurations for each new project, letting you jump straight into the design phase.

To create a template, set up your drawing with all the necessary settings and save it as a .DWT file. You can then load this template for any new project, ensuring a fast and consistent start every time.

Best Practices for Project Organization

Good project organization is key to working efficiently, especially when handling large or collaborative projects. AutoCAD offers a variety of tools and best practices to help you structure your files and maintain clarity throughout the design process.

Structuring Files

  • File naming conventions: Use clear and consistent file names to keep your projects organized. For example, include project name, date, and version in the file name (e.g., "ProjectName_V1_09-2024.dwg").

  • Version control: Keep backups of previous versions to track changes and revert if necessary. AutoCAD’s Save As function is useful for managing different project stages.

Layer Management

Layers are essential for organizing complex drawings. They allow you to separate different elements of your design (e.g., electrical plans, structural elements, or furniture layouts) and control their visibility independently.

Best practices for layers:

  • Name layers descriptively (e.g., “Walls,” “Furniture,” “Electrical”) for easy identification.

  • Use layer colors to differentiate between elements visually.

  • Lock or freeze layers you aren’t currently working on to avoid accidental changes.

Working with External References (XRefs)

When working on larger projects or collaborating with others, External References (XRefs) are invaluable. XRefs allow you to link other drawing files into your current drawing without merging them, enabling you to work with updates from other team members or overlay separate design elements like floor plans or structural layouts.

To insert an XRef:

  1. Go to the Insert tab and click Attach XRef.

  2. Select the drawing file you want to reference and specify the insertion point.

This method keeps your file sizes manageable and ensures that updates to the original reference file are automatically reflected in your drawing.

AutoCAD Troubleshooting and Performance Optimization

Even the most experienced AutoCAD users can encounter challenges, from unexpected crashes to slow rendering times. Understanding how to troubleshoot common issues and optimize performance can save you valuable time and frustration. In this section, we’ll cover the most common mistakes beginners make, how to prevent crashes, speed up rendering, and ensure AutoCAD runs smoothly on your system.

Common AutoCAD Mistakes and How to Avoid Them

When first using AutoCAD, it’s easy to make mistakes that can slow down your workflow or lead to inaccuracies in your designs. Here are some of the most common errors beginners make and how to avoid them:

1. Incorrect Use of Layers

Beginners often forget to organize their drawings into layers, or they might create too many unnecessary layers. This can make complex projects difficult to manage and prone to errors.

Solution:

  • Use a consistent layer naming convention (e.g., "Walls," "Furniture," "Electrical") to keep everything organized.

  • Check layer properties to ensure that the correct layers are active, and use layer isolation to work on specific sections of your drawing without distractions.

2. Overcomplicating Drawings

New users may tend to overcomplicate designs by adding excessive detail or creating unnecessary geometry. This can lead to confusion and slow down performance.

Solution:

  • Simplify your drawings wherever possible. For example, use blocks to repeat similar elements rather than drawing them individually.

  • Focus on the essential details and avoid overloading your design with unnecessary complexity. This keeps your file size manageable and ensures smoother performance.

3. Misusing Object Snaps

Not understanding object snaps (Osnaps) can lead to imprecise drawings where lines and objects aren’t aligned properly, causing issues later on.

Solution:

  • Familiarize yourself with Object Snap settings and always use them to ensure precise placement and alignment of objects. Common Osnap options include Endpoint, Midpoint, Center, and Intersection.

4. Forgetting to Save Regularly

AutoCAD, like any software, can crash unexpectedly, and not saving regularly can result in significant data loss.

Solution:

  • Enable AutoSave and set a reasonable interval (e.g., every 5 or 10 minutes).

  • Make it a habit to press Ctrl + S frequently during your work to manually save your progress.

Avoiding these common pitfalls will not only improve the quality of your drawings but also help streamline your workflow, making you a more efficient AutoCAD user.

Common Reasons for Crashes and Fixes

Learn about fixes to annoying AutoCAD crashes

AutoCAD crashes are frustrating and can disrupt your workflow. Fortunately, there are several common reasons for crashes and solutions to prevent or fix them.

  1. Outdated Software or Drivers: If AutoCAD or your hardware drivers (especially for your graphics card) are outdated, the software may become unstable. Fix: Keep AutoCAD and your graphics card drivers up to date. Regularly check Autodesk’s website for updates, and make sure your operating system is compatible with the latest version of AutoCAD.

  2. Corrupted Drawing Files: Corrupted files can cause crashes when opening or editing them. Fix: Use the AUDIT or RECOVER commands in AutoCAD to detect and fix errors in your drawing files. This can often resolve issues with corrupted files.

  3. Insufficient Hardware Resources: AutoCAD is a resource-intensive program, and running it on a system with low specs can lead to frequent crashes. Fix: Close other programs running in the background to free up resources, and consider upgrading your RAM or graphics card if crashes persist.

  4. Faulty Third-Party Plugins: Some third-party plugins can be incompatible with AutoCAD updates, leading to instability. Fix: Disable or uninstall any plugins that might be causing problems and check for updates or alternatives.

For a comprehensive guide on resolving AutoCAD crashes, visit AutoCAD Crashes Fixes.

How to Render Faster On AutoCAD

Rendering in AutoCAD can be time-consuming, especially when dealing with complex 3D models or high-resolution outputs. Here are some techniques to speed up the rendering process without sacrificing quality:

Optimize Your Model

  • Simplify the geometry: Reducing the complexity of your 3D model can significantly improve rendering speed. Eliminate unnecessary details or hidden objects that don’t contribute to the final output.

  • Use layers effectively: Turn off or freeze layers that are not visible in the render to reduce the load on AutoCAD’s rendering engine.

Lower Render Settings

  • Reduce the output resolution: For preliminary renders, use a lower resolution. You can always increase the resolution for the final version.

  • Adjust lighting and material settings: Simplify your lighting setup and reduce the number of reflective or transparent materials, as these can significantly slow down the rendering process.

Hardware Optimization

  • Upgrade your hardware: If you frequently render large files, consider upgrading your GPU (Graphics Processing Unit) or adding more RAM. AutoCAD’s rendering engine can leverage hardware acceleration, so a powerful GPU can make a big difference.

Check out more tips on how to speed up rendering in AutoCAD Render Faster.

Performance Optimization Tips for AutoCAD

Ensuring that AutoCAD runs smoothly, especially on large projects, requires both system and software optimization. Here are some best practices to keep AutoCAD performing at its best:

1. Keep Software and Drivers Updated

Regularly update both AutoCAD and your hardware drivers (particularly for your graphics card). AutoCAD releases updates that often include performance improvements, bug fixes, and compatibility enhancements.

2. Optimize Display Settings

If your AutoCAD performance is slow, adjusting your display settings can make a big difference:

  • Switch to 2D Wireframe mode when working with 3D models to reduce the rendering load while you’re editing.

  • Disable hardware acceleration if you’re experiencing glitches or display lag, but ensure it’s turned on if you have a capable graphics card.

3. Clean Up Drawings

Large files can slow down AutoCAD. To keep your drawings lean:

  • Use the PURGE command to remove unnecessary objects, such as unused layers, blocks, or text styles.

  • Regularly run the AUDIT command to check your drawing for errors and fix them automatically.

4. Manage External References (XRefs)

When working with multiple drawings in large projects, using External References (XRefs) can help keep your files organized and smaller in size. However, ensure that XRefs are properly linked, and avoid overloading your drawing with too many references, which can slow down performance.

5. Increase Virtual Memory

If you’re working on a system with limited physical RAM, you can increase your computer’s virtual memory settings to allow AutoCAD to handle larger files more efficiently. This helps when handling resource-heavy projects or multitasking.

By following these performance optimization tips, you can prevent lags, crashes, and slowdowns, ensuring a smoother and more productive AutoCAD experience.

Advanced AutoCAD Techniques

Once you’ve mastered the basics and intermediate features of AutoCAD, it’s time to elevate your skills with advanced techniques. These methods allow you to work with greater precision, automate parts of your design process, and create stunning visualizations for presentations or client approvals. In this section, we’ll cover parametric constraints and rendering and visualization, two critical aspects of advanced AutoCAD workflows.

Parametric Constraints

working with parametric constraints in AutoCAD

Parametric constraints allow you to maintain relationships between different elements in your drawing. By applying constraints, you can ensure that your design behaves predictably when you make changes. This feature is invaluable for projects that require strict adherence to specific measurements or alignments, as it allows for dynamic modifications without sacrificing accuracy.

Using Parametric Design

Parametric design involves setting up rules or parameters that govern the relationships between different components of your drawing. For instance, you can create a rectangle where the length is always twice the width, and when one dimension changes, the other adjusts automatically. This makes editing faster and more reliable.

Creating Constraints

There are two main types of constraints in AutoCAD:

  1. Geometric Constraints: These define how objects relate to each other spatially. Common geometric constraints include:

    • Coincident: Ensures that two points remain together.

    • Parallel: Keeps two lines parallel, no matter how they are adjusted.

    • Perpendicular: Forces two lines to meet at a right angle.

  2. Dimensional Constraints: These apply specific measurements to objects and keep them fixed. For example:

    • Linear Constraints: Specify the distance between two points.

    • Angle Constraints: Lock the angle between two lines or objects.

How to Apply Constraints

To add parametric constraints to your design:

  1. Go to the Parametric tab in the ribbon.

  2. Select either Geometric or Dimensional Constraints, depending on your needs.

  3. Apply the constraints by selecting the relevant objects.

Once constraints are applied, you can modify one part of your drawing, and the rest will automatically adjust according to the rules you've set. This is especially useful for designs that need to remain flexible, yet precise.

Rendering and Visualization

AutoCAD’s rendering and visualization tools allow you to transform your 2D and 3D designs into photorealistic images. This feature is crucial for presentations, client meetings, and any situation where you need to communicate the final vision of your project clearly. By adding materials, lighting, and using the rendering engine effectively, you can create visuals that make your designs stand out.

Using AutoCAD’s Rendering Tools

Rendering in AutoCAD enables you to produce detailed, high-quality images that showcase the design in a real-world context. Before rendering, you need to set up a 3D model, apply materials, and configure lighting for a realistic look.

  1. Accessing the Render Panel:

    • The Render panel is found in the Visualize tab. From here, you can control all aspects of the rendering process, including materials, lighting, and output settings.

  2. Materials:

    • Applying materials to your objects enhances the realism of your rendering. AutoCAD provides a wide library of materials (wood, metal, glass, etc.), but you can also create custom materials if needed.

    • To assign materials, go to the Materials Browser, select a material, and drag it onto the objects you want to apply it to. You can adjust the properties of the materials, such as texture, reflection, and transparency, to achieve the desired effect.

  3. Lighting:

    • Proper lighting is essential for realistic rendering. AutoCAD provides several types of lights:

      • Point Lights: Emit light in all directions from a single point, simulating lamps or overhead lights.

      • Spot Lights: Cast light in a cone shape, useful for focused lighting like a spotlight.

      • Sun and Sky: Simulates natural daylight for outdoor scenes.

    • Adjusting the intensity, color, and shadows for each light source ensures your model looks accurate and professional.

  4. Cameras:

    • Placing a camera in your scene allows you to frame the perfect shot for rendering. You can position the camera to create different views, whether it's an isometric angle or a more immersive perspective.

Exporting High-Quality Renderings

Once you've applied materials and lighting, you’re ready to render. Before hitting the render button, ensure that your settings are optimized:

  • Resolution: Choose the right resolution based on the output. For on-screen presentations, a lower resolution may suffice, but for printed materials or large displays, go for higher resolution (e.g., 1920x1080 or above).

  • Render Presets: AutoCAD offers several quality presets, from Draft (low quality, fast) to High (best quality, slower). Choose a preset based on your needs—higher quality is ideal for final presentations, while draft mode works for quick previews.

After rendering, you can export the image in formats like JPEG, PNG, or TIFF. If the rendering is too slow, try reducing the resolution or simplifying the model by turning off unnecessary layers or objects.

By leveraging parametric constraints, you can create designs that are flexible, easily adjustable, and precise, saving time and reducing errors. Meanwhile, mastering rendering and visualization gives you the tools to create professional, photorealistic images that bring your designs to life. These advanced AutoCAD techniques are essential for taking your skills to the next level, whether you’re working on architecture, product design, or engineering projects. The combination of dynamic, parametric models and stunning visualizations ensures your designs are not only functional but also visually compelling.

Top AutoCAD Alternatives

Alternative software to Autodesk AutoCAD

AutoCAD is a powerful tool, but it’s not the only option available for CAD professionals. Depending on your specific needs—whether you're in architecture, engineering, or product design—there are several alternatives that might better suit your workflow. Let’s take a look at some of the top AutoCAD alternatives, including Revit, SolidWorks, Rhino, and SketchUp, and how they compare in terms of functionality, ease of use, and industry applications.

For a deeper comparison, check out Top Alternatives to AutoCAD.

AutoCAD vs SketchUp

AutoCAD and SketchUp serve different purposes, and your choice depends on your project needs.

  • Ease of Use: SketchUp is known for its user-friendly interface, making it ideal for beginners. AutoCAD, while more feature-rich, has a steeper learning curve.

  • Functionality: AutoCAD is the go-to for precision 2D and 3D drafting, whereas SketchUp is great for quick 3D visualizations and concept models.

  • Best Applications: AutoCAD is favored by engineers and architects for detailed technical drawings, while SketchUp is more suited for architects and designers working on early-stage concepts or basic 3D modeling.

Learn more in this detailed comparison: AutoCAD vs SketchUp.

AutoCAD vs Autodesk Inventor

While both are Autodesk products, AutoCAD and Inventor are designed for different industries.

  • Focus: AutoCAD is versatile, catering to both 2D drafting and 3D modeling, whereas Inventor specializes in mechanical design and 3D CAD.

  • Features: Inventor excels in parametric modeling and simulation, making it ideal for engineers and product designers.

  • Industry Use: AutoCAD is used across various industries, while Inventor is more specialized in mechanical engineering and manufacturing.

Explore the key differences in AutoCAD vs Autodesk Inventor.

Autodesk also produces other alternatives such as Revit or Fusion. Check out our comparisons for each to see which Autodesk software is the right fit for you

ArchiCAD vs AutoCAD

ArchiCAD is often the preferred tool for architects, while AutoCAD serves a broader range of industries.

  • When to Use ArchiCAD: Ideal for architectural design with integrated BIM features, allowing for collaborative design and documentation.

  • When to Use AutoCAD: Better suited for professionals who require flexibility in both 2D drafting and 3D modeling, across various industries beyond just architecture.

For more insights on when to choose each tool, check out ArchiCAD vs AutoCAD.

Rhino vs AutoCAD

When it comes to surface modeling and creating complex, organic shapes, Rhino stands out as a top alternative to AutoCAD.

  • Best for Organic Shapes: Rhino’s ability to handle NURBS (Non-Uniform Rational B-Splines) makes it excellent for freeform modeling and creating smooth, complex surfaces.

  • AutoCAD Strengths: AutoCAD is better for precise drafting and traditional architectural and engineering projects, focusing on accuracy in both 2D and 3D designs.

Learn more about which tool is best for your needs in Rhino vs AutoCAD.

AutoCAD vs CATIA

CATIA is a leading CAD software used in aerospace, automotive, and product design, often compared to AutoCAD for more advanced engineering tasks.

  • Features for Engineering: CATIA excels in surface modeling, assembly design, and handling complex mechanical systems, making it a top choice for high-end engineering.

  • AutoCAD’s Role: AutoCAD is more flexible for general 2D and 3D design but lacks the advanced engineering features that CATIA offers.

Explore more about the differences in AutoCAD vs CATIA.

AutoCAD vs SolidWorks

Both AutoCAD and SolidWorks are highly regarded CAD tools, but they cater to different types of projects.

  • AutoCAD: More versatile for both 2D drafting and 3D modeling, AutoCAD is widely used in architecture, civil engineering, and general design.

  • SolidWorks: Focused on mechanical engineering and product design, SolidWorks offers superior tools for parametric modeling, simulation, and assemblies.

To decide which is best for your project, visit AutoCAD vs SolidWorks.

When choosing an AutoCAD alternative, the decision largely depends on your industry and project needs. Each of these tools offers unique strengths, whether you’re working in architecture, engineering, or product design.

Learning Resources for AutoCAD

Learning AutoCAD can feel overwhelming at first, but there are plenty of free and paid resources to help you get started and advance your skills. Whether you prefer structured online courses, quick video tutorials, or reading in-depth guides, there’s a resource out there for every type of learner. In this guide, we’ll explore the best places to find AutoCAD courses, tutorials, and books, as well as the key communities that can support your learning journey.

Free vs. Paid Resources

  • Free Resources: There are countless free resources available online, from YouTube tutorials to forums. These can be great for beginners looking to get a sense of the software. However, free resources often lack the structure and depth needed for advanced users.

  • Paid Resources: For a more comprehensive learning experience, paid resources like structured courses from platforms like Udemy, Coursera, and LinkedIn Learning provide step-by-step lessons, assignments, and certificates upon completion. These are highly recommended if you want to follow a clear learning path.

Recommended Learning Guides and Communities

  • AutoCAD Official Website: Autodesk provides a wealth of resources, including tutorials, webinars, and certification guides. The Autodesk Knowledge Network is a great place to start.

  • YouTube: Channels like AutoCAD and BricsCAD offer free video tutorials, ranging from beginner to advanced levels. YouTube’s auto-generated playlists can help you build your skills on your schedule.

  • Reddit and Forums: The AutoCAD subreddit (r/AutoCAD) and the CADTutor forum are great communities where you can ask questions, share your work, and connect with other learners and professionals.

Best AutoCAD Courses

If you prefer structured learning, online courses provide a comprehensive approach to mastering AutoCAD. Here are some of the best courses available:

  1. AutoCAD for Beginners by Udemy: Perfect for those starting from scratch, this course covers all the basics of 2D drafting and 3D modeling.

  2. AutoCAD 2021 Essential Training by LinkedIn Learning: This course provides a solid foundation in AutoCAD with practical exercises to help reinforce what you learn.

  3. Coursera’s Autodesk CAD and Digital Manufacturing Specialization: If you're interested in the manufacturing side of CAD, this course dives deeper into professional uses of AutoCAD.

For more detailed recommendations, check out Best AutoCAD Courses.

Top AutoCAD Tutorials

If you’re looking for quick, digestible lessons, tutorials are a great way to build specific skills without committing to a full course. Some top options include:

  1. AutoCAD Official YouTube Channel: Offers bite-sized tutorials on everything from basic drawing tools to advanced 3D modeling.

  2. AutoCAD Tips and Tricks by Lynn Allen: A highly popular series that covers shortcuts, new features, and expert tips to improve your workflow.

  3. CADLearning: Offers a wide range of video tutorials for both beginners and advanced users, covering everything from basic commands to industry-specific applications.

These tutorials are perfect for honing your skills in targeted areas. For a complete list of resources, visit Top AutoCAD Tutorials.

AutoCAD Books

AutoCAD books and textbooks can be very useful if you need a more structured instruction

If you prefer learning by reading, several books provide in-depth coverage of AutoCAD’s features, from beginner guides to advanced design techniques. Here are some highly recommended books:

  1. "AutoCAD 2021 For Dummies" by Ralph Grabowski: A beginner-friendly guide that covers the basics of AutoCAD in an easy-to-understand way.

  2. "Mastering AutoCAD 2021 and AutoCAD LT 2021" by Brian C. Benton: A comprehensive resource that dives deep into AutoCAD’s advanced features and workflows.

  3. "AutoCAD Exercise Workbook" by Cheryl R. Shrock: Ideal for hands-on learners, this book provides exercises and real-world examples to practice what you’ve learned.

For more book recommendations, visit AutoCAD Books.

How to Run AutoCAD on Vagon

Vagon makes running AutoCAD effortless and powerful by letting you set up a high-performance cloud machine in minutes, without any technical hassle. Say goodbye to hardware limitations—Vagon’s top-tier processors and advanced graphics ensure smooth workflows, even on large, complex projects.

Access your AutoCAD setup from any device, turning low-spec laptops into powerful workstations perfect for remote work and collaboration. With secure cloud storage, easy file sharing, and a simple, user-friendly interface, Vagon lets you focus on your designs, not your hardware. It's the ultimate solution for designers looking for flexibility and performance. Here’s steps to run AutoCAD on the cloud:

  1. Sign Up and Launch a Cloud Computer

    • Create an account at Vagon.io and select a plan.

    • Launch a high-performance cloud machine tailored for AutoCAD.

  2. Install AutoCAD

    • Access your cloud machine, download AutoCAD from the Autodesk website, and install it like you would on a regular desktop.

  3. Access from Any Device

    • Log into Vagon from any device and use AutoCAD with high performance, no matter your local hardware.

  4. Work and Collaborate in the Cloud

    • Save and share projects seamlessly using cloud storage, and collaborate in real-time with team members.

FAQs:

When starting with AutoCAD, beginners often have several questions regarding learning curves, software options, and the tool’s versatility. Below are answers to some of the most frequently asked questions about AutoCAD, designed to guide you through your journey and help you make informed decisions.

  1. Is AutoCAD hard to learn?

    • AutoCAD can be challenging for beginners due to its vast feature set and technical complexity, but with consistent practice, it becomes manageable. Starting with basic 2D drawing tools and progressing to more advanced 3D modeling features can make learning easier. Many online resources, including tutorials and beginner-friendly courses, can simplify the process.

  2. What is the best software for beginners: AutoCAD or SketchUp?

    • For beginners, SketchUp is often considered easier to learn due to its user-friendly interface and intuitive tools, making it ideal for simple 3D modeling and early design concepts. However, AutoCAD is better for those looking to build a professional foundation in drafting and design, as it offers more advanced features and greater precision for 2D and 3D work.

  3. How long does it take to become proficient in AutoCAD?

    • The time it takes to become proficient in AutoCAD depends on the user’s dedication and prior experience with CAD tools. For most beginners, basic proficiency in 2D drafting can be achieved within 2-3 months with regular practice. Mastery of advanced 3D modeling and customization features could take 6-12 months.

  4. Can I use AutoCAD for free?

    • Autodesk offers a free version of AutoCAD for students, educators, and educational institutions, making it accessible for learning and non-commercial use. For professionals and businesses, a subscription is required, though you can start with a free trial to explore its full capabilities.

  5. What industries use AutoCAD the most?

    • AutoCAD is widely used in architecture, engineering, construction, manufacturing, and product design. Its versatile drafting and modeling tools make it essential for industries that require precision and detailed technical drawings.

  6. What are the system requirements for AutoCAD?

    • AutoCAD requires a mid-to-high-performance machine. The minimum system requirements include 8GB of RAM, a 2.5–2.9 GHz processor, and a DirectX 11-compliant graphics card. For more demanding projects or 3D work, 16GB of RAM and a 3+ GHz processor are recommended.

Get Beyond Your Computer Performance

Run applications on your cloud computer with the latest generation hardware. No more crashes or lags.

Trial includes 1 hour usage + 7 days of storage.

Get Beyond Your Computer Performance

Run applications on your cloud computer with the latest generation hardware. No more crashes or lags.

Trial includes 1 hour usage + 7 days of storage.

Ready to focus on your creativity?

Vagon gives you the ability to create & render projects, collaborate, and stream applications with the power of the best hardware.
