Autodesk AutoCAD (v.2022 and newer)

AutoCAD is a powerful software for 2D drafting and 3D modeling. Enabling GPU acceleration improves performance by utilizing the system's GPU, significantly speeding up graphics rendering and operations like zooming, panning, and rotating complex models. Here’s how to activate GPU acceleration and optimize performance.

How to Enable GPU Acceleration in AutoCAD

1. Launch AutoCAD
   Open AutoCAD from the default location:
   C:\Program Files\Autodesk\AutoCAD 20##\acad.exe



2. Enable Hardware Acceleration

   • Open a blank document.

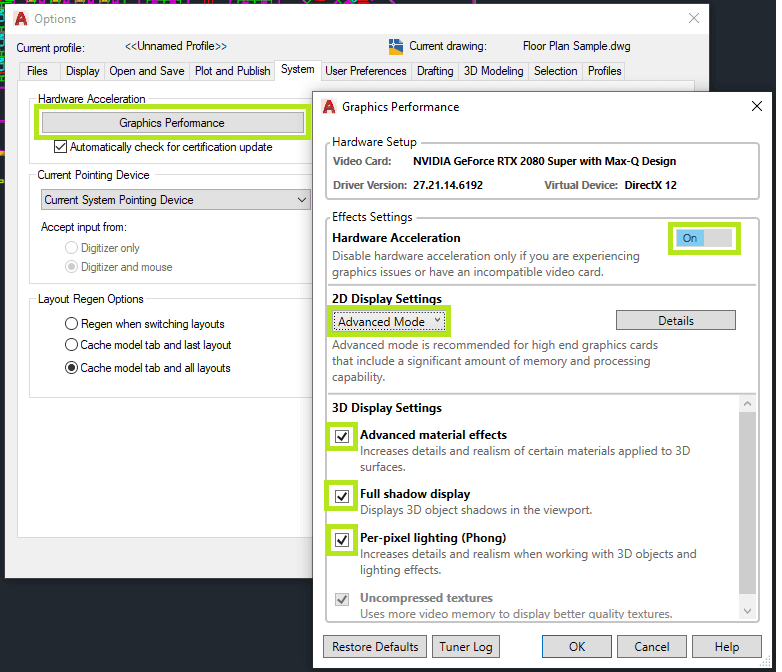

   • Click the Autodesk icon at the top left, then go to Options.

   • In the System tab, under Graphics Performance, ensure Hardware Acceleration is On.

   • Set 2D Display Settings to Advanced Mode for smoother navigation.

   • In 3D Display Settings, enable all available options (such as Shadows and Smooth Line Display) to improve rendering quality and performance.



These settings allow AutoCAD to offload many tasks from the CPU to the GPU, making it faster when working on complex designs.

Top Tips to Speed Up AutoCAD

1. Update GPU Drivers
   Always keep your NVIDIA or AMD drivers updated. Certified drivers ensure compatibility and performance, especially for AutoCAD's hardware-accelerated features.

2. Optimize Drawings
   Use the PURGE command to clean up unused layers and blocks and the AUDIT command to fix drawing errors. Additionally, reduce drawing complexity by simplifying layers and using External References (Xrefs), which allow AutoCAD to load referenced files only when needed, improving speed during editing.

3. Fine-Tune Graphics Settings
   Use the GRAPHICSCONFIG command to access advanced performance settings. If you’re running on a lower-end system, switching to Intermediate Mode instead of Advanced Mode may help balance quality and speed, especially when handling large projects.

4. Use SSD Storage
   Storing your project files on an SSD ensures faster load times and improves performance when working with large files.

Autodesk AutoCAD System Requirements

Minimum Requirements:

• Operating System: 64-bit Microsoft® Windows® 11 or Windows 10 version 1809 or above.

• Processor: 2.5–2.9 GHz processor (base).

• Memory (RAM): 8 GB.

• Display Resolution: 1920 x 1080 with True Color.

• Graphics Card: 1 GB GPU with 29 GB/s Bandwidth and DirectX 11 compliant.

• Disk Space: 10 GB (suggested SSD).

• Pointing Device: MS-Mouse compliant.

• .NET Framework: Version 4.8 or later.

Recommended Specifications:

• Processor: 3+ GHz processor (base), 4+ GHz (turbo).

• Memory (RAM): 16 GB.

• Graphics Card: 4 GB GPU with 106 GB/s Bandwidth and DirectX 12 compliant.

• Display Resolution: Resolutions up to 3840 x 2160 (with capable display card).

Meeting these specifications will help you get the most out of Autodesk AutoCAD, ensuring efficient workflows and high-quality outputs. Keep in mind that more complex projects, especially those involving large datasets or intricate designs, will benefit from higher-end hardware configurations.

Top Recommended GPUs for AutoCAD

1. NVIDIA RTX A4000
   A professional-grade GPU that delivers excellent performance for both 2D drafting and 3D modeling, especially for advanced tasks like rendering and visualizations.

2. NVIDIA RTX 3060
   A great mid-range option, the RTX 3060 offers solid performance for smooth rendering and real-time display, making it suitable for most AutoCAD users.

3. AMD Radeon Pro W6600
   Optimized for professional applications, this GPU is a strong alternative for AutoCAD, offering reliable performance for high-resolution displays and 3D models.

By enabling GPU acceleration and applying these tips, you can greatly enhance AutoCAD's speed and responsiveness, making it more efficient to work with complex projects.
