I once watched a 40-minute rebuild in SolidWorks finish in just 10 minutes, all because of a GPU swap.
Same model, same project, same CPU. Just a different graphics card.

That’s when it really hit me: in SolidWorks, not all “powerful” GPUs are actually powerful where it counts. You can throw a top-tier gaming card at it, but if it’s not tuned for CAD work, you might still watch your assembly spin like it’s underwater.

SolidWorks is tricky like that. It’s not about brute force, it’s about precision, stability, and the right kind of optimization. So, the real question isn’t “What’s the most expensive GPU I can buy?” It’s “Which GPU actually matters for SolidWorks today?”

Why the GPU Matters (But Isn’t Everything)

Here’s something I wish someone had told me years ago:
SolidWorks isn’t obsessed with your GPU. Not the way Blender or Unreal is.

Yes, the graphics card absolutely matters, especially when you’re orbiting a 500-part assembly or rendering in Visualize, but it’s not the whole story. If SolidWorks performance feels sluggish, there’s a decent chance the bottleneck isn’t your GPU at all. It might be your CPU’s single-core speed, your RAM, or even how your model is built.

So what does the GPU actually do here?
It’s your visual muscle. Every time you rotate, pan, or zoom around a 3D model, the GPU draws those frames in real time. It’s also responsible for RealView, Ambient Occlusion, and shadows, all the eye-candy that makes your design feel physical, not digital. And when you jump into SolidWorks Visualize for photorealistic rendering, the GPU becomes the star of the show.

But rebuilding features? Updating mates? Running simulation solves?
That’s still a CPU game.

I’ve seen users drop thousands on a workstation-class GPU only to find their rebuild times barely budge. Meanwhile, someone else with a modest card and a high-clock CPU breezes through. The takeaway? Balance matters. The right GPU will make your workflow feel smoother, not magically faster across the board.

That said, once you’ve got a capable CPU, a stable GPU can make SolidWorks feel silky. Especially in 2025, with larger assemblies, real-time ray-traced previews, and AI-assisted visualization features starting to roll out, GPU choice is finally becoming more important than it used to be.

If you’re just starting out or revisiting SolidWorks after a break, these hands-on tutorials will help you get familiar with how your hardware choices actually show up inside your workflow.

What to Look For in a SolidWorks GPU

If you walk into any PC forum and ask, “What’s the best GPU for SolidWorks?” you’ll probably get a flood of answers, most of them missing the point. The truth is, SolidWorks doesn’t care about RGB lights or overclocking headroom. It cares about precision and driver stability.

Here’s what actually matters:

#1. Certified Drivers (The Secret Sauce)

SolidWorks is picky. It’s been trained and tested with very specific hardware and drivers.
That’s why workstation GPUs like the NVIDIA RTX A-series or AMD Radeon Pro exist, they’re officially certified by Dassault Systèmes. That certification means the drivers are optimized for SolidWorks viewports, reducing glitches, crashes, and weird transparency bugs that gaming cards sometimes show.

Yes, a GeForce RTX 4090 can technically “work.” But if you’ve ever seen your model flicker, lines disappear, or faces randomly turn black while rotating, that’s usually a driver issue, not bad luck.

If you’re still deciding whether SolidWorks is your tool of choice, this comparison of SolidWorks vs AutoCAD breaks down their core differences in workflow, hardware needs, and performance.

#2. VRAM (Video Memory)

Think of VRAM as a workspace for your 3D data.
If you work with small assemblies or single-part designs, even 6 GB is fine. But once you start dealing with large assemblies, high-resolution textures, or Visualize renders, 12–24 GB starts making a difference.

More VRAM lets your GPU store more geometry and textures locally, which means fewer slowdowns when you zoom, section, or switch configurations.

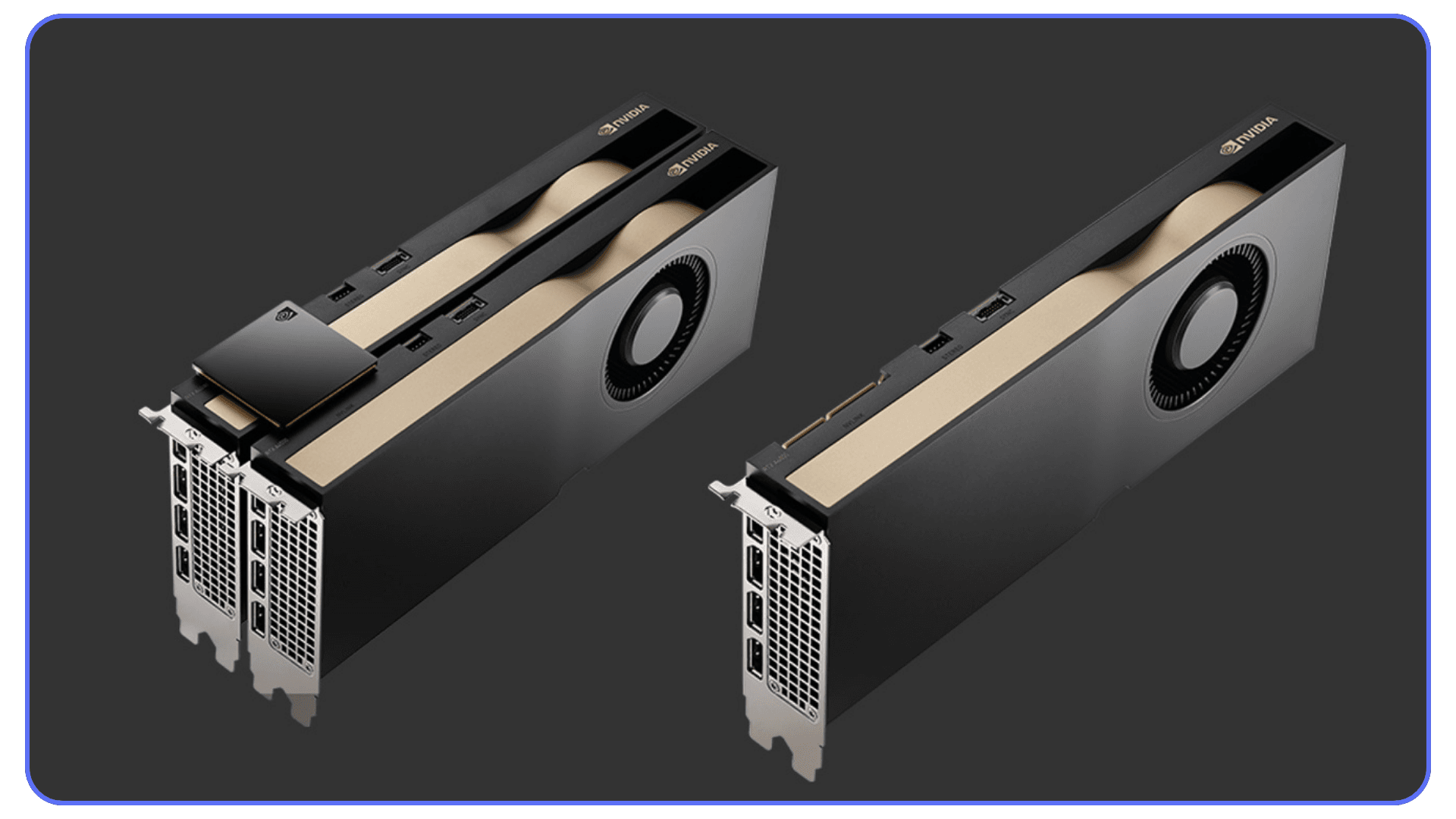

#3. Workstation vs. Gaming Cards

This debate never dies.
Workstation cards (RTX A2000, A4000, A6000, Radeon Pro W7800, etc.) prioritize stability, double-precision accuracy, and application-certified drivers. Gaming cards (RTX 4070, 5090, RX 7900 XT) prioritize frame rates and cost efficiency.

In my experience, if you’re a hobbyist, student, or freelancer who mostly models and occasionally renders, a good gaming GPU can be a smart budget move. But for professional use, especially in firms where downtime equals lost billable hours, certified workstation cards pay for themselves fast.

#4. Cooling, Power, and Reliability

SolidWorks might not fully max out your GPU 24/7, but long render sessions in Visualize will. A quiet, cool card lasts longer and avoids throttling mid-render.
Look for GPUs with good thermals and stable power draw, especially if your workstation runs all day.

#5. Match the GPU to Your Workflow

Don’t buy a monster GPU if your projects are lightweight parts and quick client previews.
Likewise, don’t expect an entry-level card to handle massive 3 000-part assemblies smoothly.

In short:

• Light modeling / student work: Entry workstation or mid-tier gaming GPU.

• Professional assemblies / frequent Visualize rendering: RTX A4000–A5000.

• Enterprise / simulation-heavy workflows: RTX 6000 Ada Gen or higher.

Pick for your workflow, not your ego.

If you're building out a workstation from scratch, it’s worth seeing what other creative pros use — check out this guide on the best computers for architects to get some hardware inspiration.

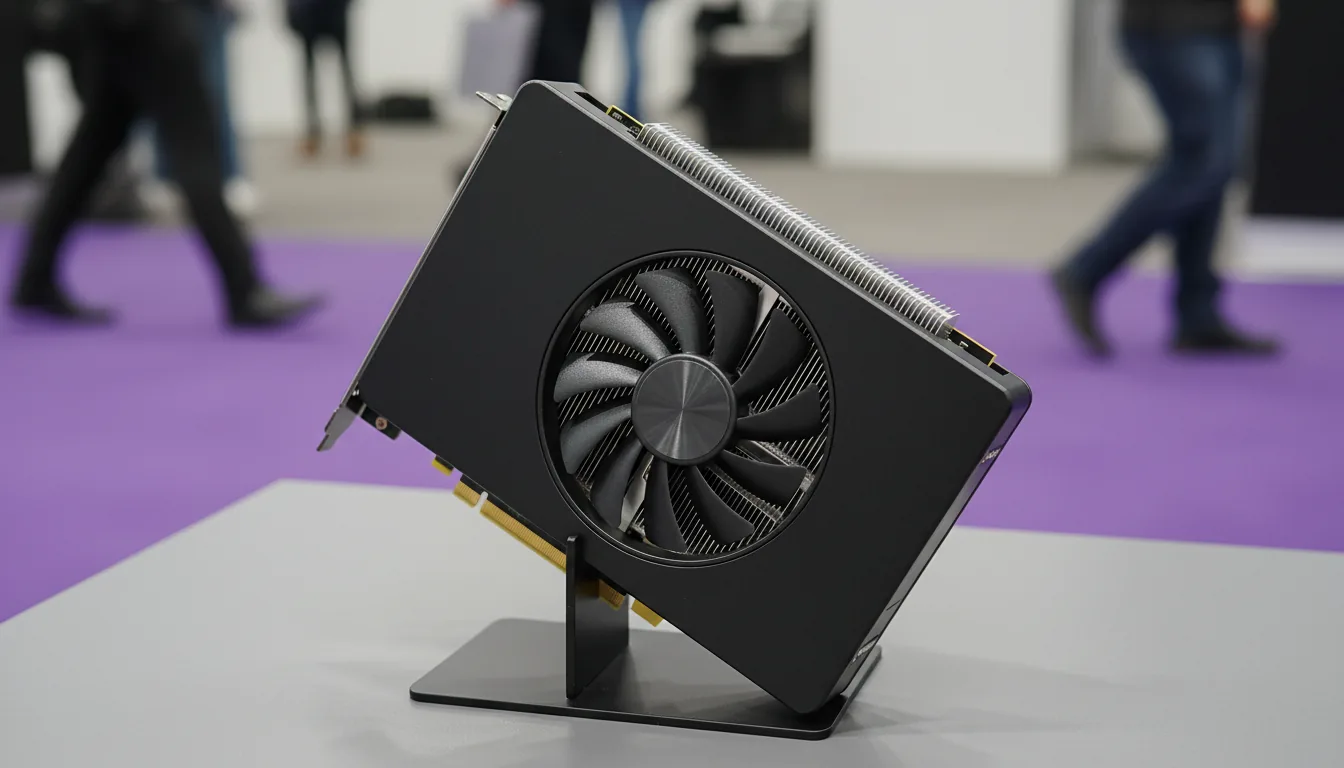

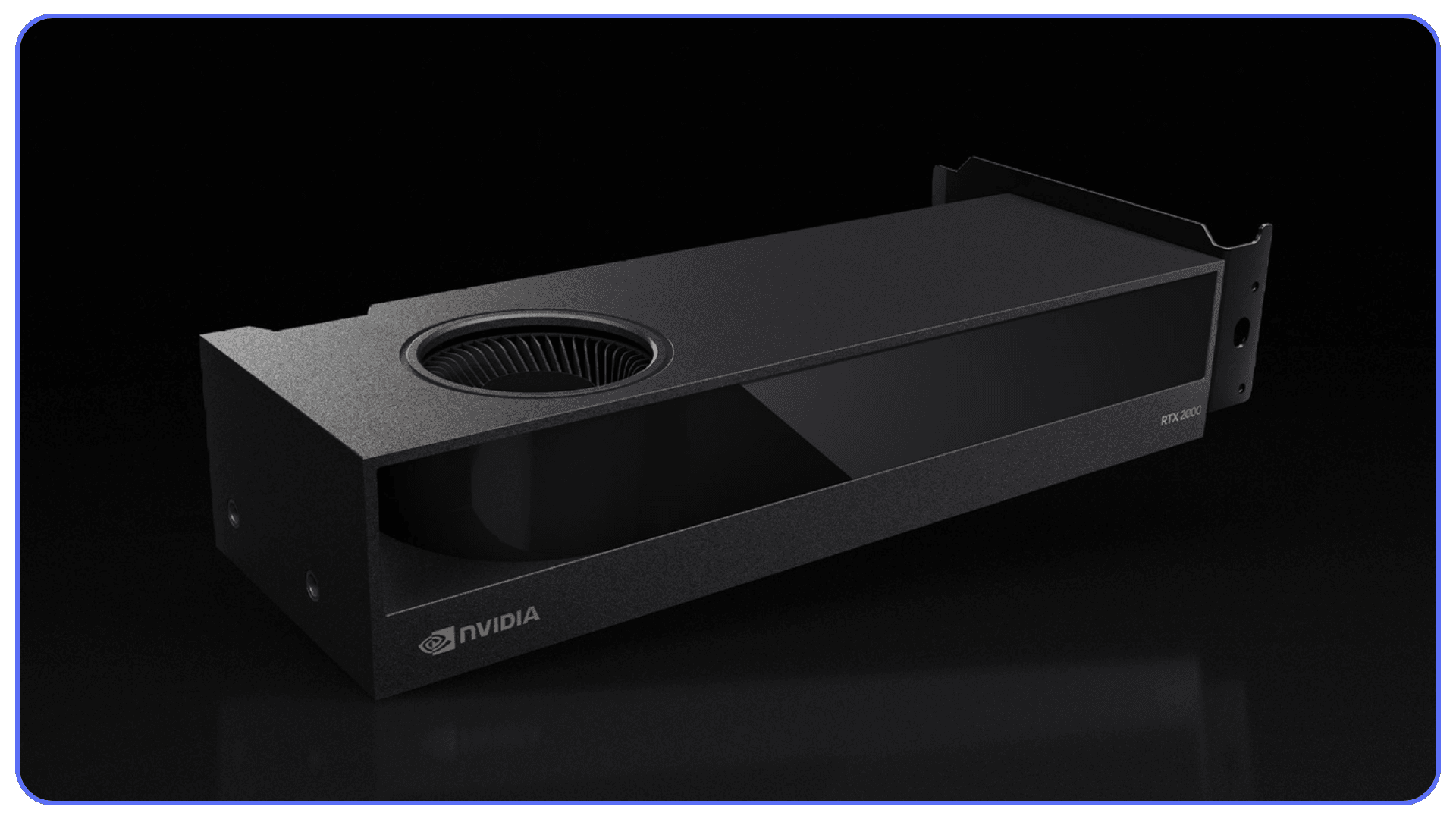

NVIDIA RTX A2000

If you’re a student, freelancer, or anyone who mostly models parts and small assemblies, this little card punches far above its weight. It’s quiet, energy-efficient, and, most importantly, certified for SolidWorks. You can orbit models smoothly, use RealView without weird flickering, and even dabble in Visualize rendering.

It’s not going to blaze through massive photoreal renders or 10 000-part assemblies, but for most day-to-day work, the A2000 feels snappy and stable. I’ve seen plenty of mid-range workstations run SolidWorks for years on one of these without a hiccup.

NVIDIA RTX A4000 / A4500

This is the sweet spot for most professionals.
The A4000 and its newer sibling, the A4500, hit that balance of price, performance, and certification that just works. You get 16 GB of VRAM, full RealView support, rock-solid drivers, and enough CUDA horsepower to handle large assemblies and Visualize renders comfortably.

I’ve used the A4000 in an engineering office setup, six monitors, multiple SolidWorks sessions open, and it barely broke a sweat. It’s also quiet, which matters more than you think when you’re modeling for hours.

If your workflow mixes design, rendering, and simulation visualization, this tier makes a lot of sense.

NVIDIA RTX A5000 / A5500

Now we’re getting into serious workstation territory.
These cards are for designers and engineers working on complex, large-scale projects, think aerospace assemblies, automotive bodies, or simulation-heavy environments.

With 24 GB of VRAM and serious CUDA muscle, the A5000/A5500 handle Visualize like a champ. The rendering speed jump compared to the A4000 is noticeable, especially in ray-traced mode. They’re also more future-proof if you’re planning to use GPU-accelerated plugins or AI-powered visualization tools that SolidWorks keeps rolling out.

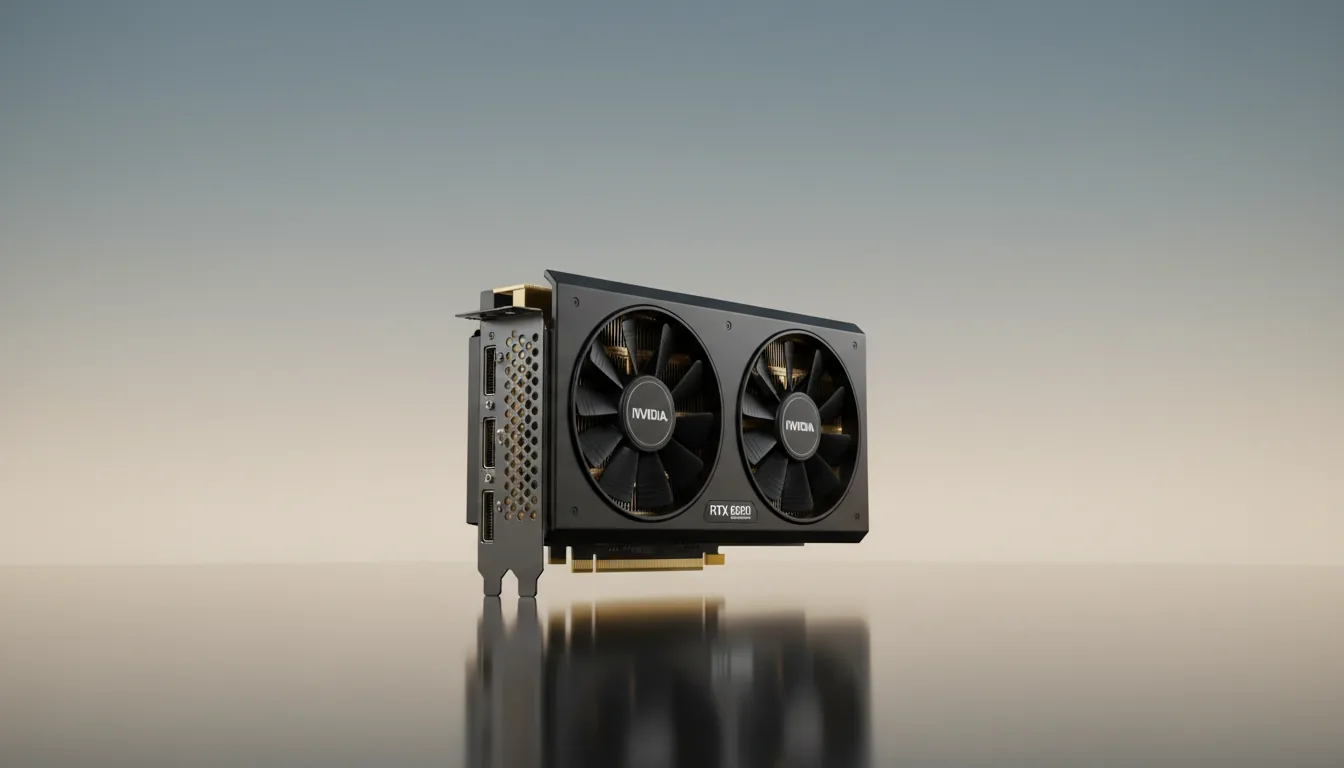

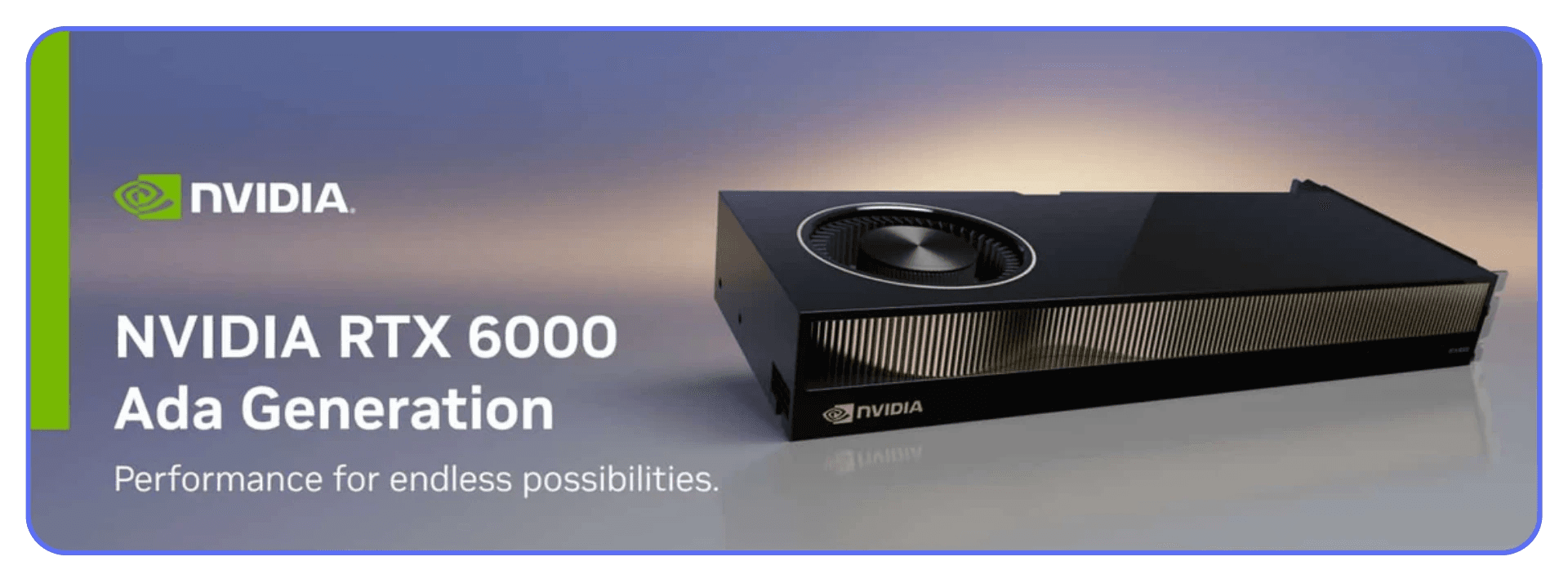

NVIDIA RTX 6000 Ada Generation

The heavy hitter. The kind of card you buy when time literally equals money.
With a monstrous 48 GB of VRAM and the Ada architecture’s efficiency, this card eats through large assemblies and renders at near-real-time speeds in Visualize.

It’s certified, stable, and purpose-built for professionals who can’t afford downtime. You’ll find it in enterprise setups, automotive R&D, architectural visualization, product design studios. If your workstation budget has commas in it, this is the one.

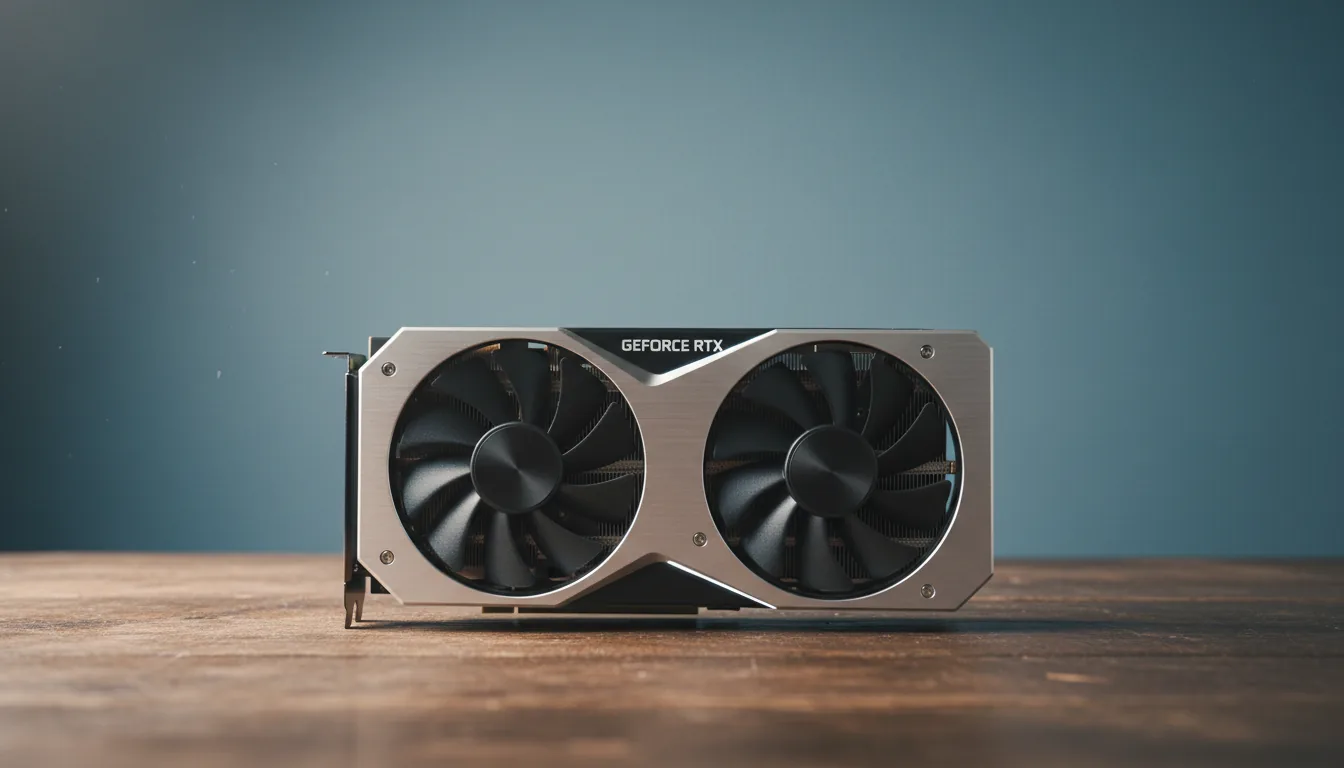

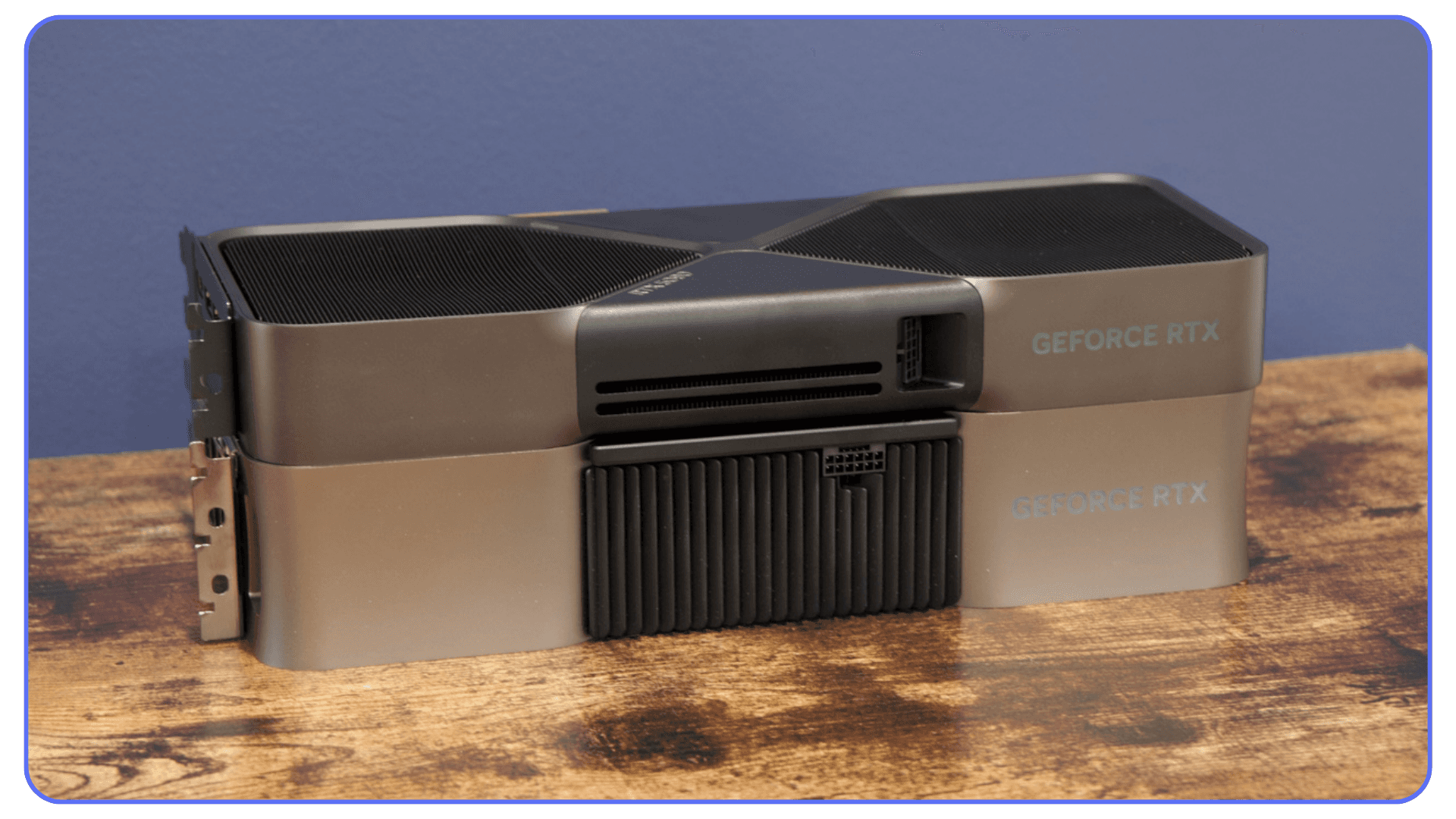

NVIDIA RTX 5090 (Consumer Gaming Option)

Here’s where things get spicy.
The RTX 5090 isn’t “certified,” but its raw performance is absurd. For freelancers or small studios that can handle the occasional driver quirk, this GPU can rival workstation-class performance for a fraction of the price.

I’ve seen people use gaming cards like this for Visualize and get phenomenal render times. The catch? You might encounter viewport flickers or stability hiccups, especially with RealView. Still, if you’re experimenting, learning, or building your portfolio, it’s hard to beat that power-per-value ratio.

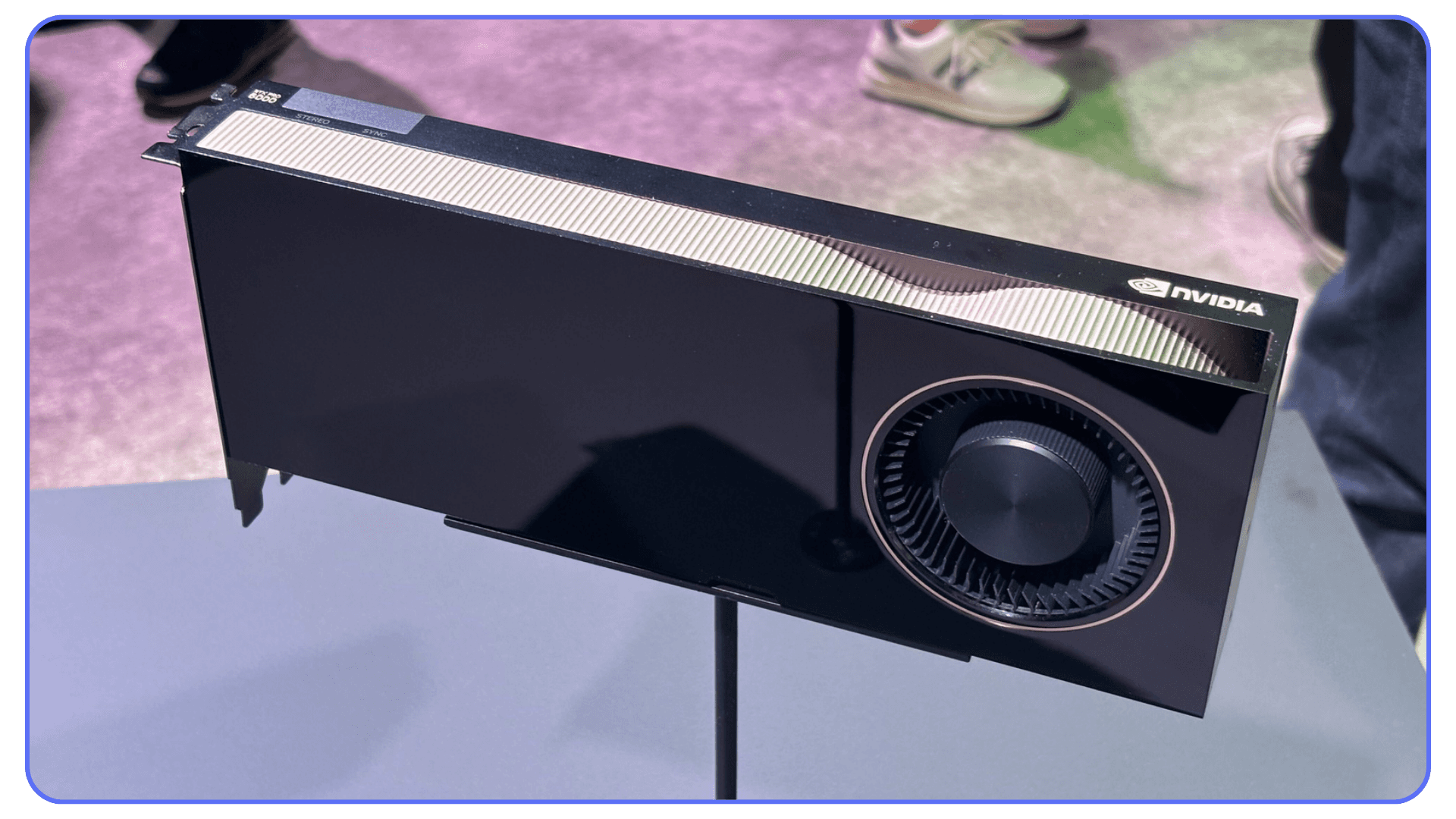

NVIDIA RTX PRO 6000 Blackwell (Coming 2025)

Expected to land in early 2025, NVIDIA’s new Blackwell architecture takes everything Ada did and pushes it further, better efficiency, higher CUDA counts, and improved AI acceleration.

For SolidWorks users, this will likely become the new benchmark for top-tier performance: real-time rendering, seamless VR visualization, and bulletproof stability. It’ll cost a fortune, but if you’re at the enterprise or simulation-research level, it’s worth watching.

Myths and Mistakes to Avoid

If there’s one thing I’ve learned after years of working with SolidWorks workstations, it’s that people waste money in all the wrong places. I’ve done it too. Here are the biggest GPU myths that keep floating around, and what’s actually true.

Looking for real-world feedback from engineers like you? These top CAD communities are great spots to ask about GPUs, compare setups, or share your own SolidWorks experiments.

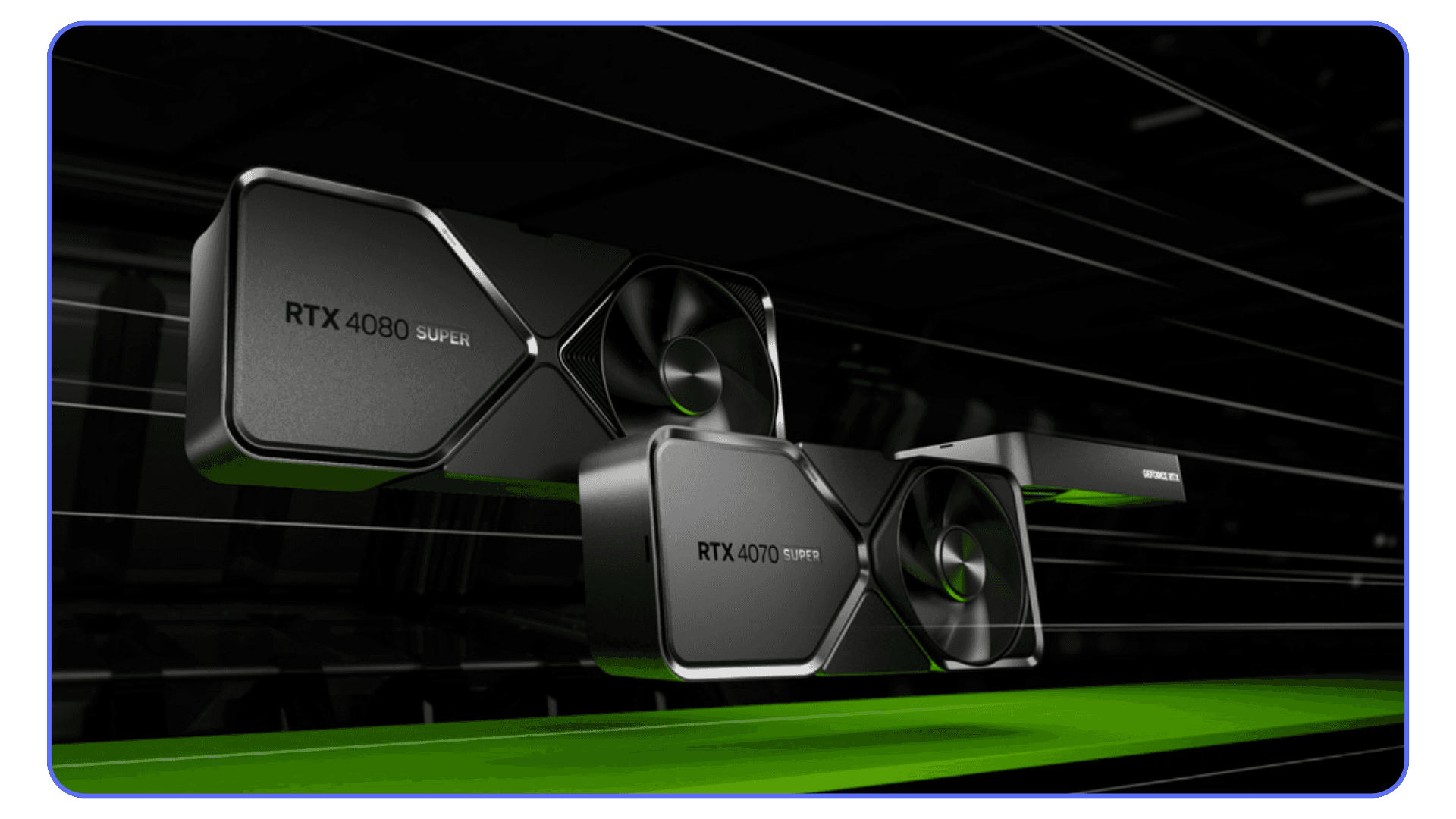

Myth 1 — “A gaming card is just as good.”

Not really. Yes, an RTX 4070 or 5090 can crush frame rates in most 3D apps, but SolidWorks isn’t a game. It depends on certified OpenGL and driver stability more than raw power. Gaming GPUs often glitch out when you enable RealView or transparency effects. Sometimes they even cause crashes in Visualize after long render sessions.

If you just want to tinker with small assemblies, fine, a gaming GPU is workable. But if SolidWorks pays your bills, a workstation GPU’s reliability will save you way more than you’ll ever spend on it.

Myth 2 — “More VRAM automatically means better performance.”

Not always. VRAM helps with larger assemblies and textures, sure, but if your model only needs 6 GB, jumping to 24 GB won’t suddenly make things faster. You’ll just have an expensive empty memory sitting around.

Myth 3 — “The GPU controls rebuild time.”

Nope. Rebuilds and feature updates rely almost entirely on CPU single-core speed. Your GPU can be asleep and it won’t change a thing. If you’re waiting minutes for features to update, your money’s better spent on a faster CPU.

Myth 4 — “Workstation cards are overkill.”

I’ve heard this so many times, and it’s usually from someone who’s never used one long term. The difference isn’t in frame rates, it’s in stability. Certified cards rarely crash, rarely misrender, and get consistent driver support tailored for SolidWorks. That’s why companies with hundreds of licenses don’t risk gaming cards.

Mistake 1 — Over-investing in GPU, under-investing in CPU/RAM.

SolidWorks is a balancing act. If your CPU can’t keep up, no GPU on earth will make your rebuilds faster. Same goes for limited RAM. I’ve seen high-end GPUs paired with weak CPUs perform worse than mid-range balanced setups.

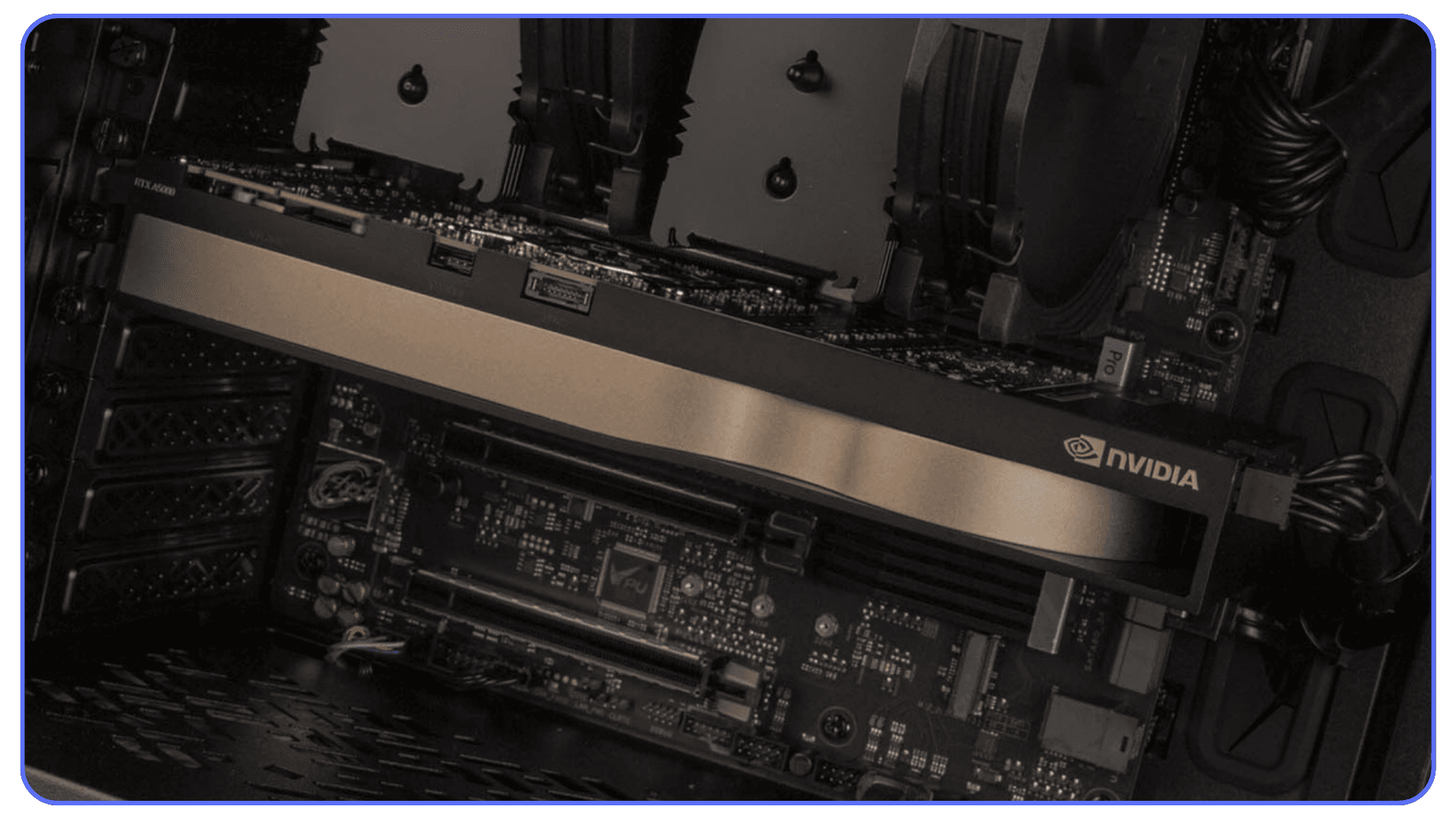

Mistake 2 — Ignoring thermal and power limits.

A throttling GPU is a useless GPU. Make sure your case airflow and PSU can actually handle the card you pick. Nothing kills render performance faster than overheating halfway through.

Mistake 3 — Assuming “latest = best for SolidWorks.”

Sometimes, the newest GPU drivers break compatibility for a few months until Dassault updates its certification list. Always check SolidWorks’ official hardware certification page before updating drivers or switching GPUs.

When to Upgrade Your GPU

There’s a point in every SolidWorks user’s life when the viewport starts stuttering, renders crawl, and you begin to wonder, “Is it finally time?”

I’ve been there. Sometimes a GPU upgrade transforms your workflow. Other times… it does absolutely nothing because the bottleneck was somewhere else. Here’s how to tell the difference.

#1. Your Viewport Feels Like It’s Dragging Through Mud

When simply rotating or panning around a model feels choppy, especially in assemblies with thousands of parts, it’s usually a GPU issue. Certified workstation cards like the RTX A4000 or A5000 handle those redraws with ease thanks to optimized OpenGL drivers.

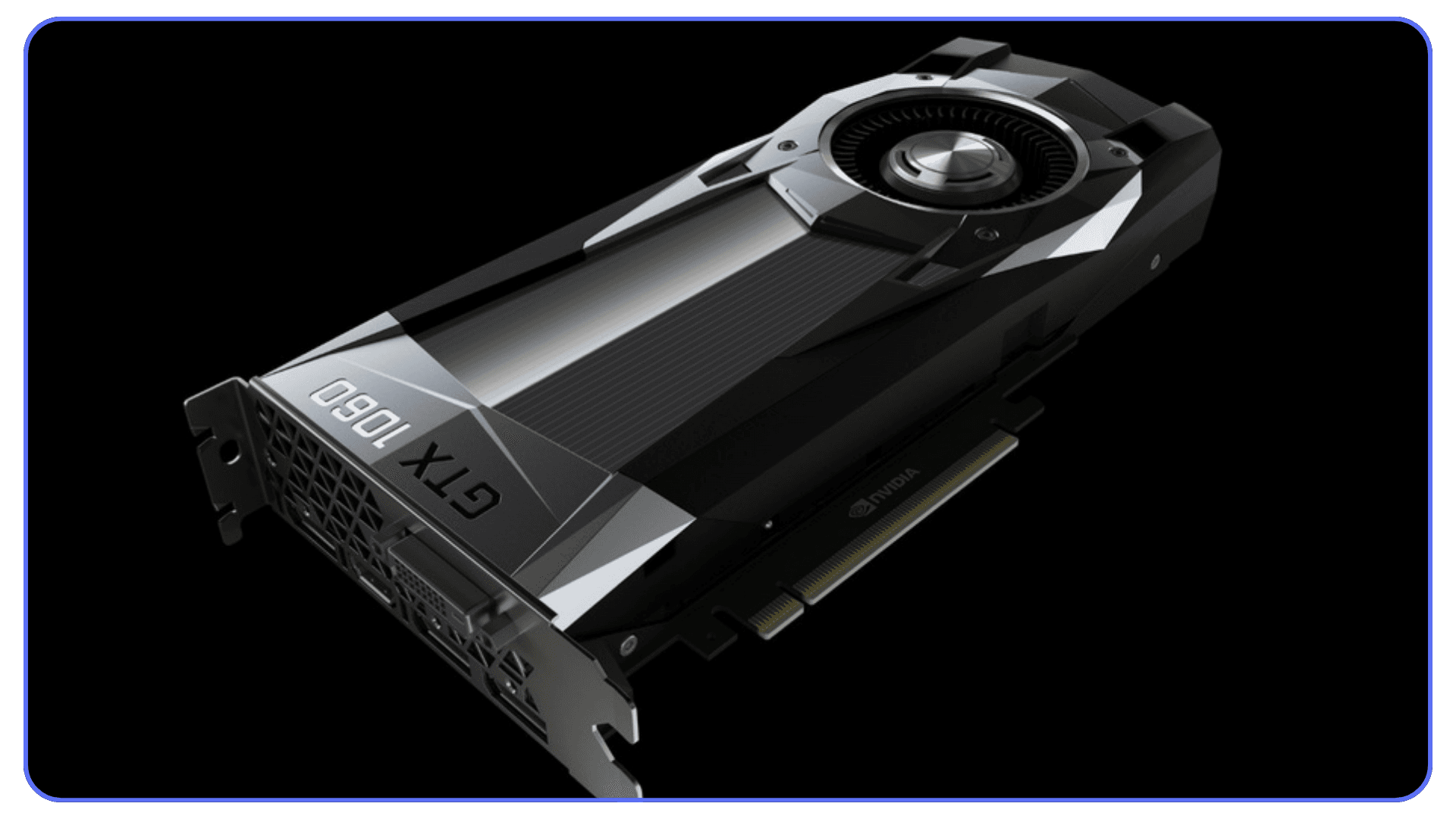

If you’re on an older Quadro K or a GeForce GTX card, you’ll immediately notice smoother navigation with newer RTX-based GPUs.

#2. RealView, Shadows, or Ambient Occlusion Slow Everything Down

These features look great but they’re GPU-intensive. If toggling RealView tanks your frame rate, that’s a solid indicator your card’s struggling. Upgrading to a newer GPU with more VRAM or CUDA cores can make the difference between jerky movement and buttery-smooth modeling.

#3. Your Visualize Renders Take Ages

SolidWorks Visualize depends heavily on GPU performance. The more CUDA cores (or Stream Processors, if you’re team AMD), the faster your photorealistic images render.
If you spend hours waiting on renders, and especially if your GPU usage hits 100% during them, an upgrade will pay off immediately.

#4. You’re Moving Into New Workflows

Maybe you’ve started experimenting with VR visualization, GPU-accelerated simulations, or AI-powered design previews. Those workflows lean much harder on the GPU than traditional CAD modeling ever did.

When Not to Upgrade

If your models rebuild slowly, that’s CPU territory.
If SolidWorks crashes randomly, that’s likely driver-related.
If your system feels laggy across everything, you might be limited by storage or memory, not your graphics card.

Mac user trying to get SolidWorks up and running? Here's how to run SolidWorks on macOS without the headaches — and yes, you can still test performance remotely via cloud.

A Simple Rule of Thumb

• If the viewport lags, it’s GPU.

• If rebuilds lag, it’s CPU.

• If everything lags, it’s probably RAM or disk.

When in doubt, benchmark your workflow, or even better, try running your project on a stronger GPU remotely (we’ll get to that next).

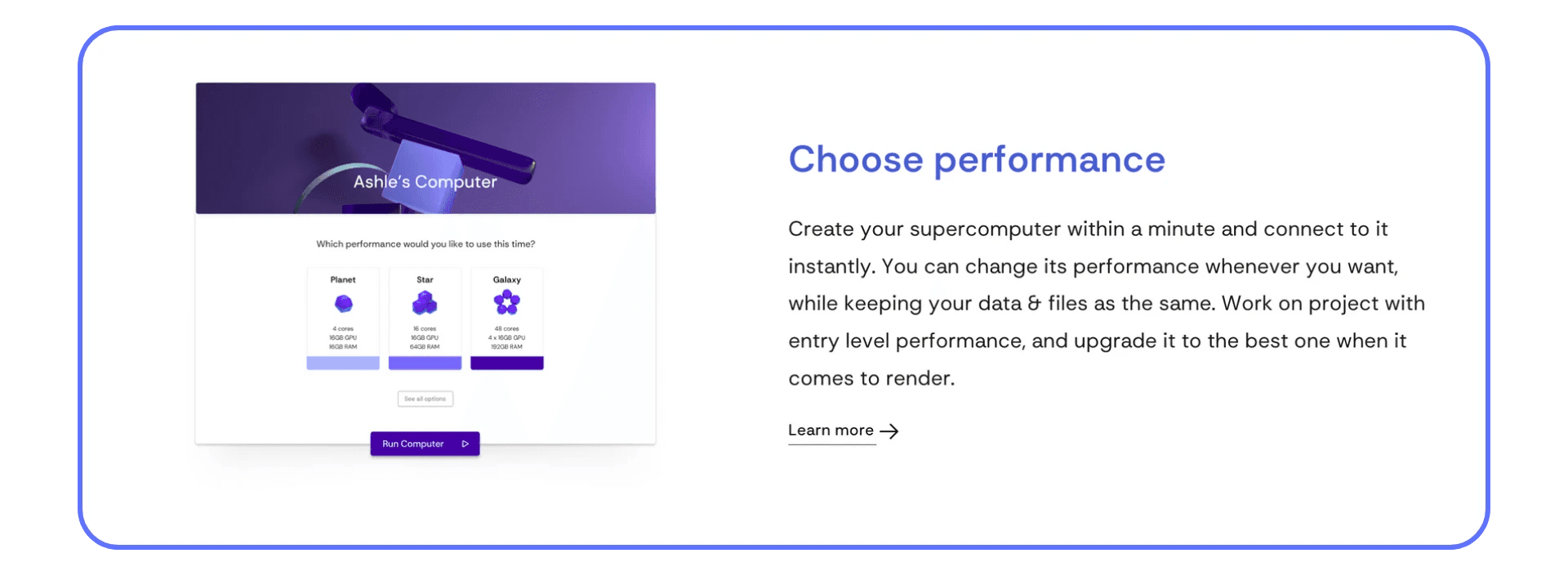

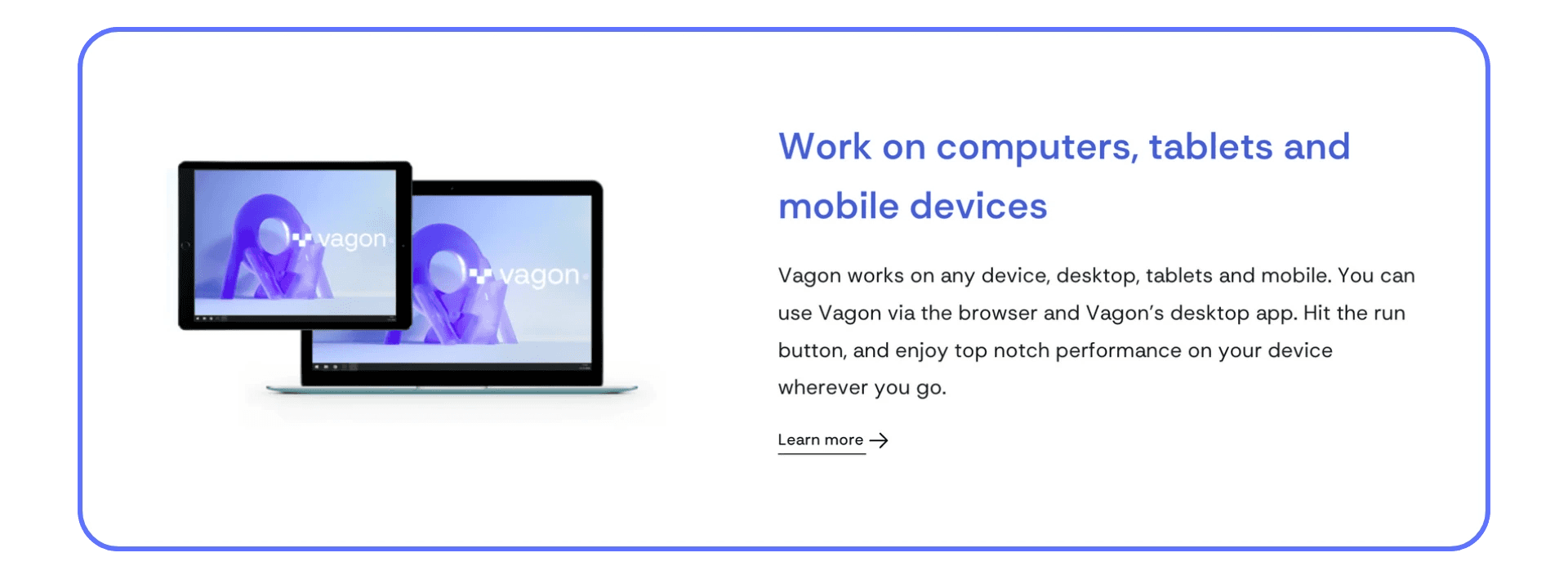

Try Before You Buy — with Vagon Cloud Computer

Here’s the thing about GPUs: they’re expensive, and choosing the wrong one can sting. I’ve seen engineers drop several thousand dollars on a workstation card only to realize their workflow didn’t need half that power. That’s where trying before buying becomes priceless.

That’s exactly what makes Vagon Cloud Computer so interesting.

Instead of guessing which GPU fits your projects, you can spin up a virtual machine in minutes, powered by professional-grade GPUs like the RTX A6000 Ada or even experimental next-gen hardware. Load your own SolidWorks assemblies, test performance with RealView or Visualize, and see for yourself how much difference the GPU makes.

You don’t need to install anything permanent or upgrade your PC. Everything runs remotely, and you can scale between GPU tiers on the fly. Want to compare how your model feels on an RTX A4000 vs A6000? You can literally do that in a single afternoon.

It’s also great for teams that need access to heavy GPU power occasionally, not daily. Instead of every engineer owning a workstation, you can keep lighter laptops and tap into cloud GPUs only when needed, modeling, rendering, or showing a client demo.

Now, I won’t pretend it’s perfect. Cloud computing adds a bit of latency, and upload times can matter if your assemblies are massive. But as a way to test and understand what your workflow really demands, it’s an incredible safety net before you commit to hardware.

If I were setting up a new SolidWorks workstation today, I’d probably start by renting a few hours on Vagon, running my biggest projects, and seeing which GPU tier actually feels right. It’s like taking a test drive before buying the car, but for your CAD setup.

If you’re still sharpening your SolidWorks skills, check out some of the best courses and learning resources online — they pair perfectly with testing real GPU performance in Vagon.

Final Thoughts

If there’s one thing SolidWorks teaches you over time, it’s that speed isn’t everything, stability is. The right GPU won’t just make things faster; it’ll make your workflow smoother, calmer, and more predictable. You’ll rotate models without that half-second lag, render images without praying they finish overnight, and trust that your session won’t crash five minutes before a client meeting.

But don’t chase specs blindly. The “best” GPU depends on your work. If you’re sketching small parts or doing concept design, a modest RTX A2000 might be perfect. If you’re building massive mechanical assemblies or running high-end renders, then yeah, an A5000 or A6000 Ada will absolutely earn its keep.

And before you throw down four or five figures on hardware, try it first. Tools like Vagon Cloud Computer let you test top-tier GPUs with your actual projects, no commitments, no guesswork. You’ll quickly see whether the difference is subtle or night-and-day.

The bottom line?
Pick balance over bragging rights.
Choose stability over speed-for-show.
And when in doubt, test it, because nothing beats real experience with your own models.

FAQs

1. Can I use a gaming GPU like the RTX 4070 or 5090 for SolidWorks?
You can, but it’s a mixed bag. Gaming cards offer incredible raw performance, but they lack the certified drivers SolidWorks relies on. That can mean random flickering, crashes, or missing RealView support. For personal projects, fine. For professional work? Go with a certified workstation GPU like the RTX A4000 or A5000.

2. Does SolidWorks use multiple GPUs?
Not really. SolidWorks doesn’t scale performance across multiple GPUs. Visualize (the rendering tool) can use more than one, but core modeling tasks only use a single GPU. So if you’re thinking of adding a second card, your money’s better spent on upgrading one stronger GPU instead.

3. How much VRAM do I need for SolidWorks?
It depends on your assemblies. Small projects can get by with 6–8 GB. Larger assemblies or photoreal rendering in Visualize benefit from 16–24 GB. Enterprise setups with massive CAD data or multi-display environments can use 48 GB or more, like what you’d get with the RTX 6000 Ada.

4. Is the CPU still more important than the GPU in SolidWorks?
Absolutely. SolidWorks rebuilds and feature calculations are almost entirely CPU-bound, specifically single-core speed. The GPU handles visualization, not math. So yes, get a good GPU, but don’t neglect a fast CPU (5 GHz+ single-core if possible).

5. How can I test GPU performance before buying?
That’s where Vagon Cloud Computer comes in handy. You can spin up a cloud workstation running high-end GPUs like the RTX A6000, upload your SolidWorks project, and see how it performs in real-time. It’s the best way to find your ideal GPU tier before spending thousands.

6. What about AMD GPUs for SolidWorks?
AMD’s Radeon Pro W-series cards (like the W7800 or W7900) are certified and perform well for certain workloads. But most SolidWorks certifications and optimizations are still geared toward NVIDIA’s RTX A-series, so NVIDIA remains the safer bet for long-term stability.

7. Does SolidWorks Visualize use the GPU or CPU?
Visualize primarily uses the GPU, and it loves CUDA cores. The more you have, the faster your renders finish. A powerful GPU can easily cut render times in half compared to older cards.

8. Should I wait for the new Blackwell GPUs?
If you’re buying soon and need stability, stick with the Ada Generation (A-series) now. But if your upgrade is months away, it might be worth waiting, the RTX PRO 6000 Blackwell promises huge efficiency gains and better AI acceleration for rendering and simulation visualization.
