I still remember opening a DWG on my laptop one morning and thinking the entire project had vanished. The floor plan was there… technically… but it looked like a tiny dot floating in the corner of the screen. Classic unit mismatch. I ran a quick DIST on what should’ve been a 1200 mm wall, and AutoCAD calmly replied with 0.001. That was the moment I realized the previous designer had drawn everything using a completely different unit system.

If you’ve ever watched your dimensions stubbornly show 0.000 instead of 1200 mm, or inserted a block that suddenly appeared 50 times too large, you’ve probably met the same problem.

Here’s the simple truth: AutoCAD software is unitless at its core.
A “1” in the drawing isn’t mm or inches or feet unless you tell AutoCAD what that 1 actually means. And that’s where things often go sideways.

Because not everyone uses the same version or setup.
Some people are in AutoCAD LT, others in AutoCAD Architecture, some work in AutoCAD Civil 3D software, and students jump between school computers and home laptops running AutoCAD for students. Each environment might be using different templates, different insertion scales, different defaults, and all it takes is one mismatch for a drawing to look microscopic, gigantic, or simply wrong.

So if you’ve ever opened a file that made you doubt your eyesight, don’t worry. You’re not alone. And the fix is easier than most think, once you understand how AutoCAD handles units in the first place.

How Units Actually Work in AutoCAD

One of the most confusing things about AutoCAD software, whether you’re on the full version, AutoCAD LT, AutoCAD Architecture, or even the student edition, is that AutoCAD doesn’t inherently know what a millimeter or an inch is. A “unit” is just a number until you define what it represents. That’s why two drawings that look perfectly reasonable on their own can completely fall apart when you combine them.

The real troublemaker here isn’t the number itself.
It’s the insertion scale.

This tiny setting tells AutoCAD how to treat objects when they move between drawings. If one file thinks “1 unit = 1 inch” and another thinks “1 unit = 1 mm,” inserting or Xrefing one into the other turns your geometry into a comedy sketch. What should be a chair becomes the size of a building. A 10 mm bolt becomes a 0.39” speck. And if you’re collaborating with people using different AutoCAD software programs, Civil 3D for site drawings, Architecture for buildings, LT for markups, the inconsistencies multiply fast.

Add in the fact that everyone uses different machines, a workstation at the office, a lightweight laptop for AutoCAD at home, a school lab PC running AutoCAD for students, and you end up with different default templates and unit settings creeping into your projects without anyone noticing.

This is how tiny errors snowball.
Wrong insertion scale → wrong dimensions → wrong blocks → wrong Xrefs → wrong everything.

And because AutoCAD CAD programs are unitless internally, the software won’t warn you when things go off the rails. It just… obeys whatever definitions it finds, even if those definitions are completely mismatched.

Once you understand that, that AutoCAD isn’t being mysterious, it’s just being literal, fixing units becomes way easier. The real key is knowing whether you’re dealing with a new drawing or cleaning up someone else’s messy file.

Mechanical teams often combine AutoCAD with Inventor, and that mix can introduce unexpected unit conflicts; this quick AutoCAD vs Inventor comparison explains how the two handle precision and scaling differently.

Setting Units Correctly in a New Drawing

If you’re starting with a blank file, congratulations, this is the easiest version of the job. New drawings don’t have legacy scaling issues, mismatched blocks, or years of accumulated chaos from different AutoCAD software programs. You get to set things up cleanly from the beginning.

Here’s the simplest, most reliable way to set units in a fresh drawing:

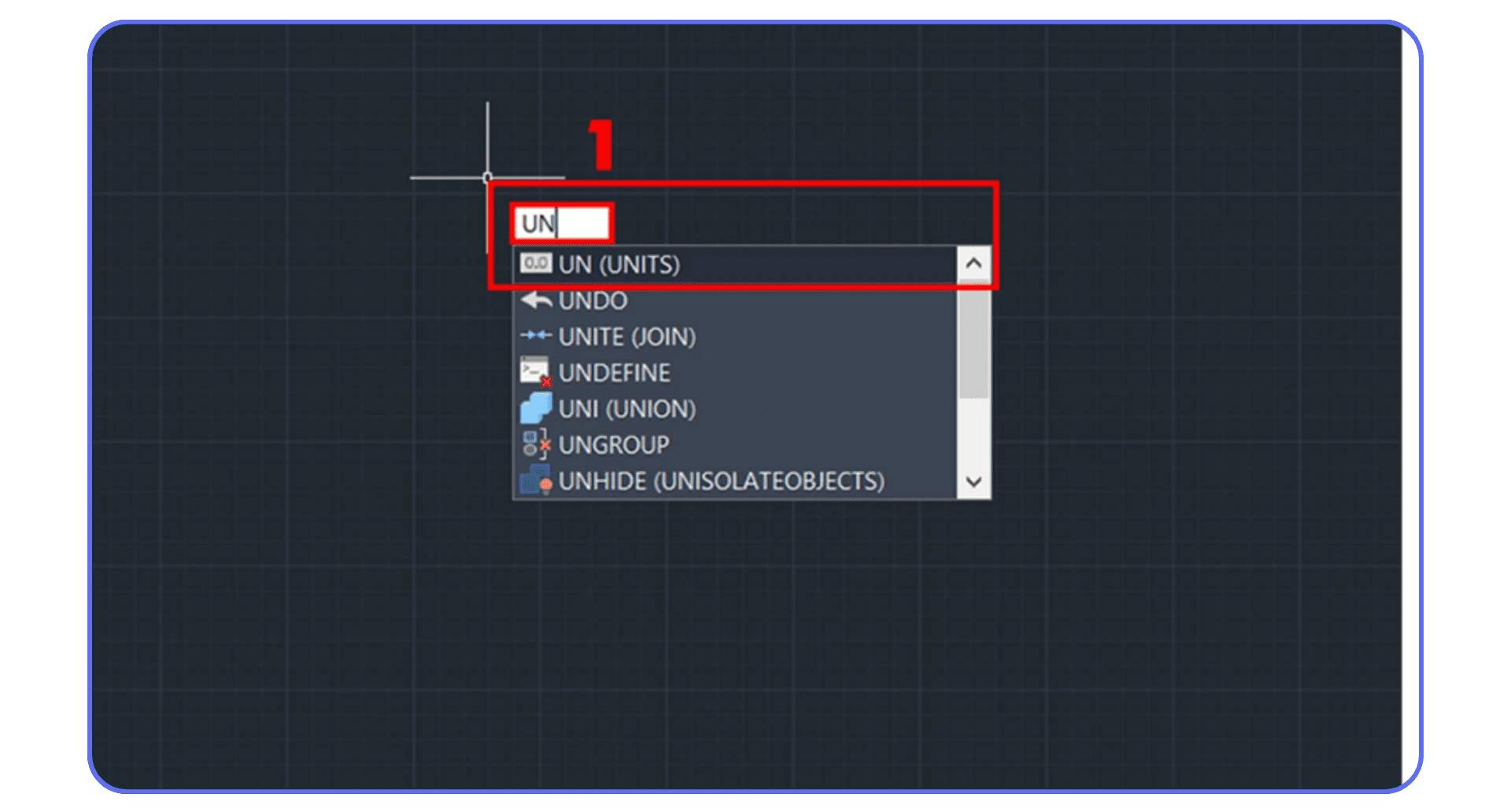

Step 1 — Type UNITS and hit Enter

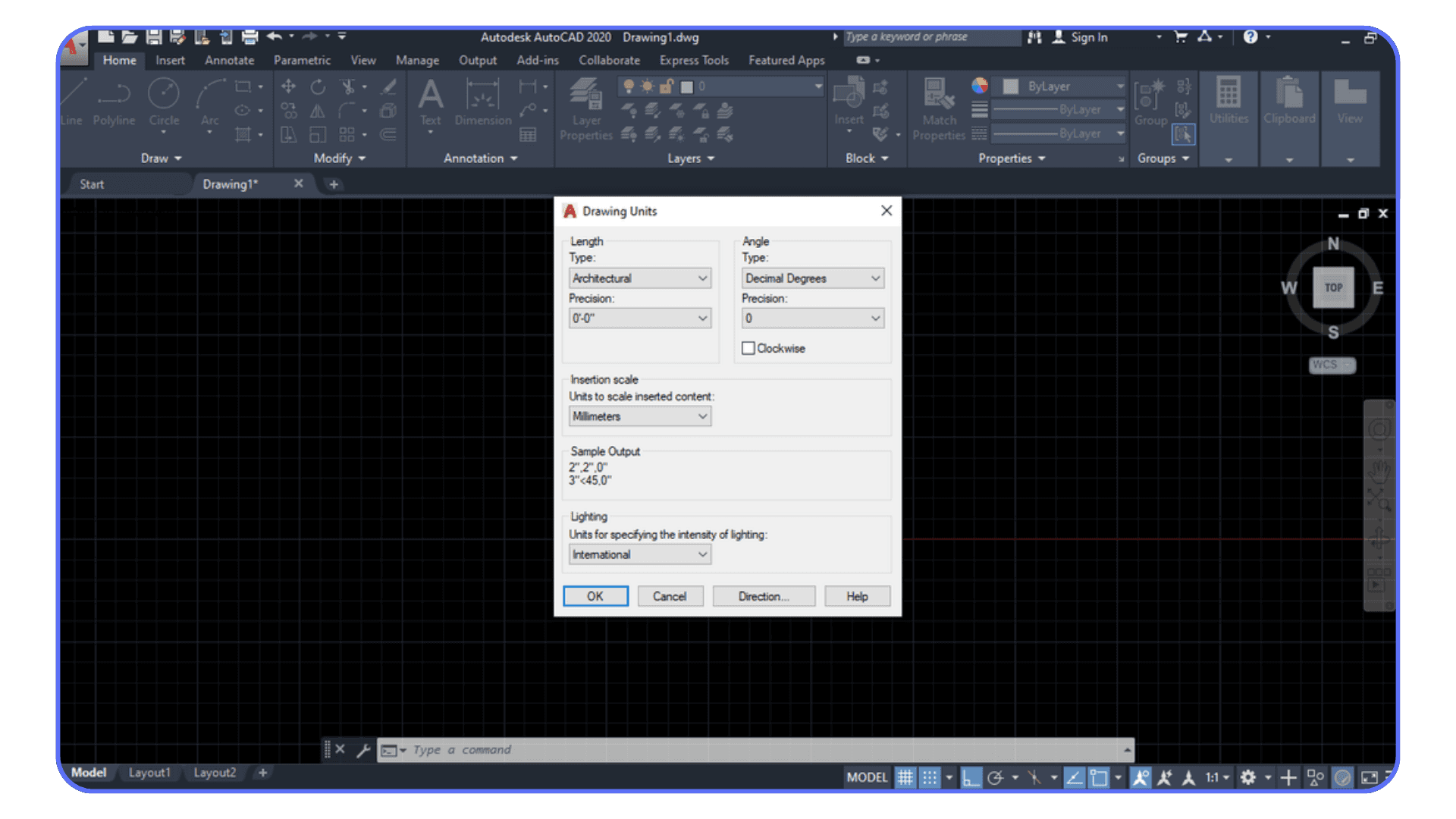

This opens the Drawing Units window. It’s small, but it controls how AutoCAD interprets distances, angles, and inserted objects across the entire file.

Step 2 — Set Length Type
If you’re unsure what to choose:

• Decimal → best for mechanical, product design, 3D work, general drafting

• Architectural / Engineering → feet-and-inches workflows (common in the U.S., especially in AutoCAD Architecture)

Most people outside the U.S. stick to Decimal.

Step 3 — Set Precision
Don’t go crazy with eight decimals unless you enjoy suffering.
Pick what makes sense for your field:

• Mechanical users often need tighter precision

• Architectural users rarely do

• Students practicing in AutoCAD for students can follow the standard for their discipline

Step 4 — Set Insertion Scale (the one that actually matters)
This is where most people get burned.

Choose the real-world unit you’re going to model in:

• Millimeters

• Centimeters

• Meters

• Inches

• Feet

If you’re unsure:

• Architecture (U.S.) → inches or feet

• Architecture (EU/Global) → millimeters or meters

• Mechanical → millimeters

• Civil → meters

Using AutoCAD LT? Same rules. Using a laptop for AutoCAD? Same rules.

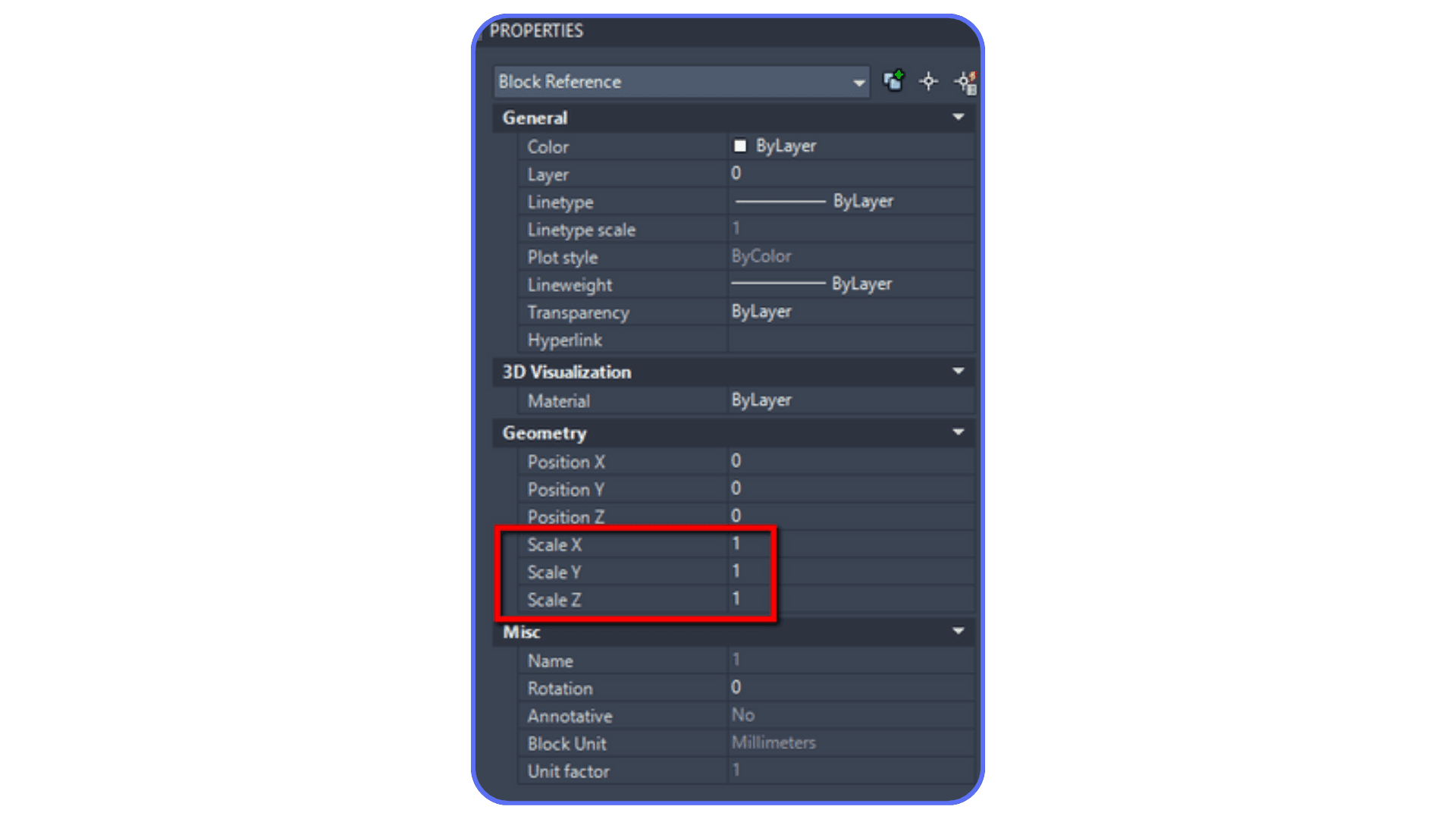

This setting decides how blocks and Xrefs behave. Set it wrong once and everything that comes into your drawing will be mis-scaled forever.

Step 5 — Save a Template (Critical Step)
Once your units look right, go to Save As → AutoCAD Drawing Template (*.dwt).

Why?
Because you do not want to redo these steps every time you start a new project.
A clean template means:

• No more unit surprises

• No more mixed settings from AutoCAD Architecture or Civil 3D

• No more weird behavior between your home computer and work computer

• No more “why is this drawing suddenly in inches?” moments

If you’re aiming for an AutoCAD certification later, using proper templates will also make your training much smoother.

When units are set correctly from the beginning, everything else, dimensions, scaling, printing, block insertion, behaves exactly the way it should. This is the part most people skip, and it’s exactly why unit problems show up months later.

And if part of your workflow problem comes from hardware limitations, you can check out the best GPU recommendations for AutoCAD to make sure your graphics card isn’t slowing down redraws or large DWG files.

Fixing an Existing Drawing Without Breaking the File

If you’re working with a clean, empty file, life is easy. But when you open a drawing someone else made, and the walls are huge, the text is tiny, and the blocks look like they’ve been through a washing machine, that’s when unit conversions get tricky. This is the part that trips up even experienced users of AutoCAD LT, AutoCAD Architecture, AutoCAD Civil 3D software, and every other flavor of AutoCAD from Autodesk.

The safest, most controlled way to handle conversions in an existing drawing is the command-line version of the units tool:

Use -DWGUNITS (with the dash!)

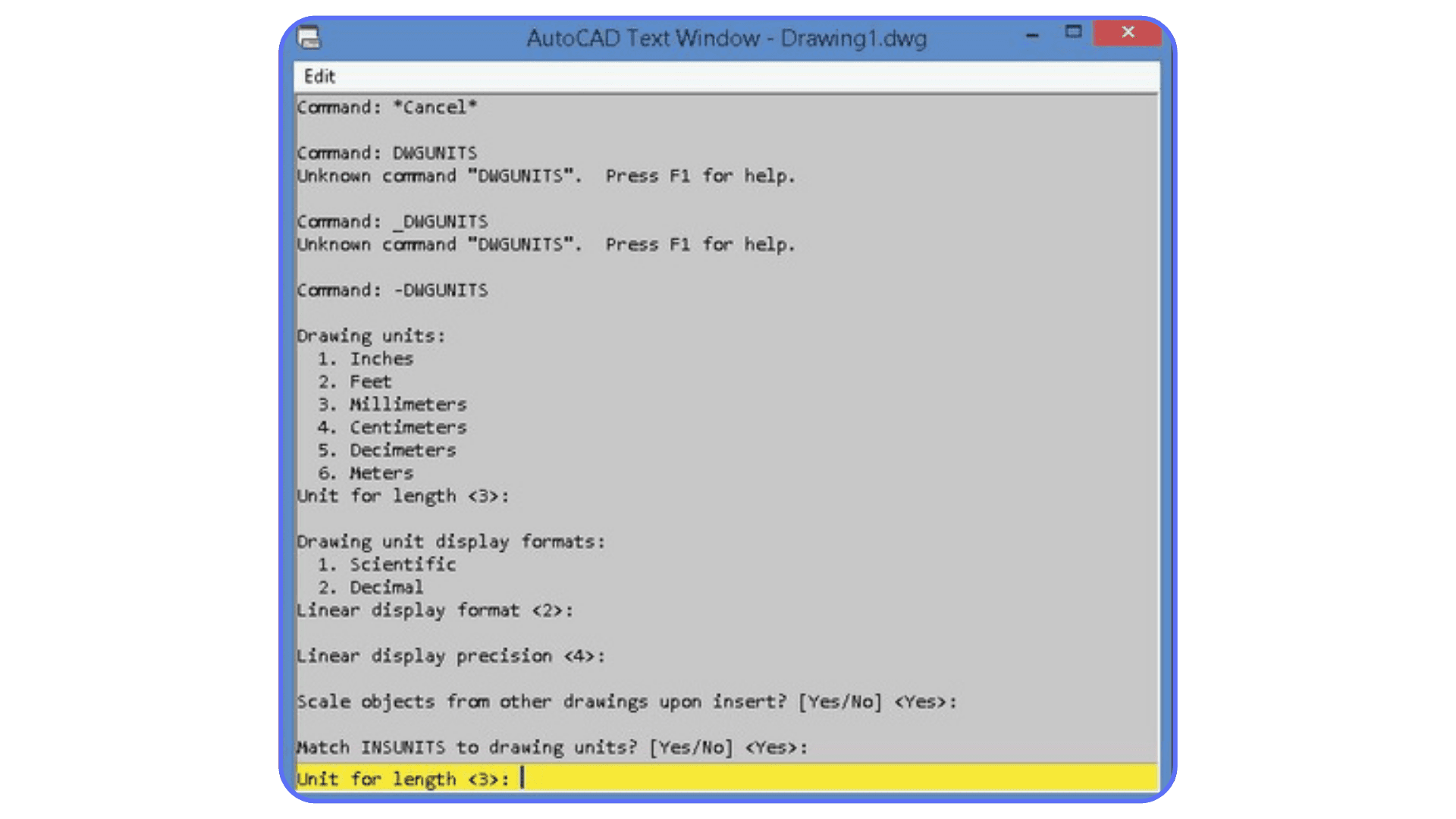

The dash gives you the “full” version of the command, where AutoCAD walks you through the conversion step by step.

Type:
-DWGUNITS

You’ll get several prompts. They matter more than you’d think.

Prompt 1 — “Enter the drawing units” (source units)
This is AutoCAD asking:
“What units do you think this drawing was originally made in?”

Use clues from the geometry:

• A 1-meter wall measuring “1000” → probably millimeters

• A 2-inch pipe measuring “2” → probably inches

• A 10 mm bolt measuring “0.39” → definitely inches

Sometimes you’ll have to be a detective. Especially if the drawing passed through multiple AutoCAD CAD programs or was modified by several people.

Prompt 2 — “Enter the target units”
Now choose what you want the drawing to actually be going forward (mm, cm, m, inches, feet).

Prompt 3 — “Scale objects accordingly?”
This is the life-or-death question.

• YES → AutoCAD physically resizes the geometry

  • Use this when objects were drawn in the wrong unit (ex: 1-inch lines need to become 25.4 mm)

• NO → Geometry stays the same size, you’re just redefining what a “unit” means

  • Use this when the drawing looks correct but the units are mislabeled internally

Example:

If a 900 mm door measures “900,” don’t scale.
If it measures “0.9,” you must scale.

If you’re new to the ecosystem and want a bigger-picture understanding, the complete guide to AutoCAD covers all the fundamentals that affect unit behavior and project setup.

What Usually Breaks After Converting Units

Let’s be honest: converting existing drawings can reveal all kinds of hidden problems, especially if the file has been touched by different AutoCAD software programs or mixed with symbols from older versions.

Here’s what often goes wrong:

• Blocks resize incorrectly
Some blocks have embedded unit definitions.
A chair becomes the size of a couch; a WC becomes tiny.

• Xrefs attach at the wrong size
A Civil 3D base file in meters + an architecture plan in millimeters = chaos.

• Hatches explode visually
A brick hatch can suddenly look like a Minecraft texture.

• Linetypes stretch or collapse
Dashed lines become dots or long dashes.

• Annotative text shrinks or becomes enormous
Especially with drawings that came from AutoCAD Architecture or student templates.

If you’re optimizing your workflow anyway, exploring the best AutoCAD plugins can help automate repetitive tasks and keep your environment cleaner.

Quick Troubleshooting Workflow

After converting units, always run:

1. AUDIT
Fixes corruption and weird geometry behaviors.

2. PURGE
Deletes unused styles, blocks, and linetypes that might still carry old unit definitions.

3. Check block units
Use BEDIT → Block Properties → Units.

4. Check Xref units

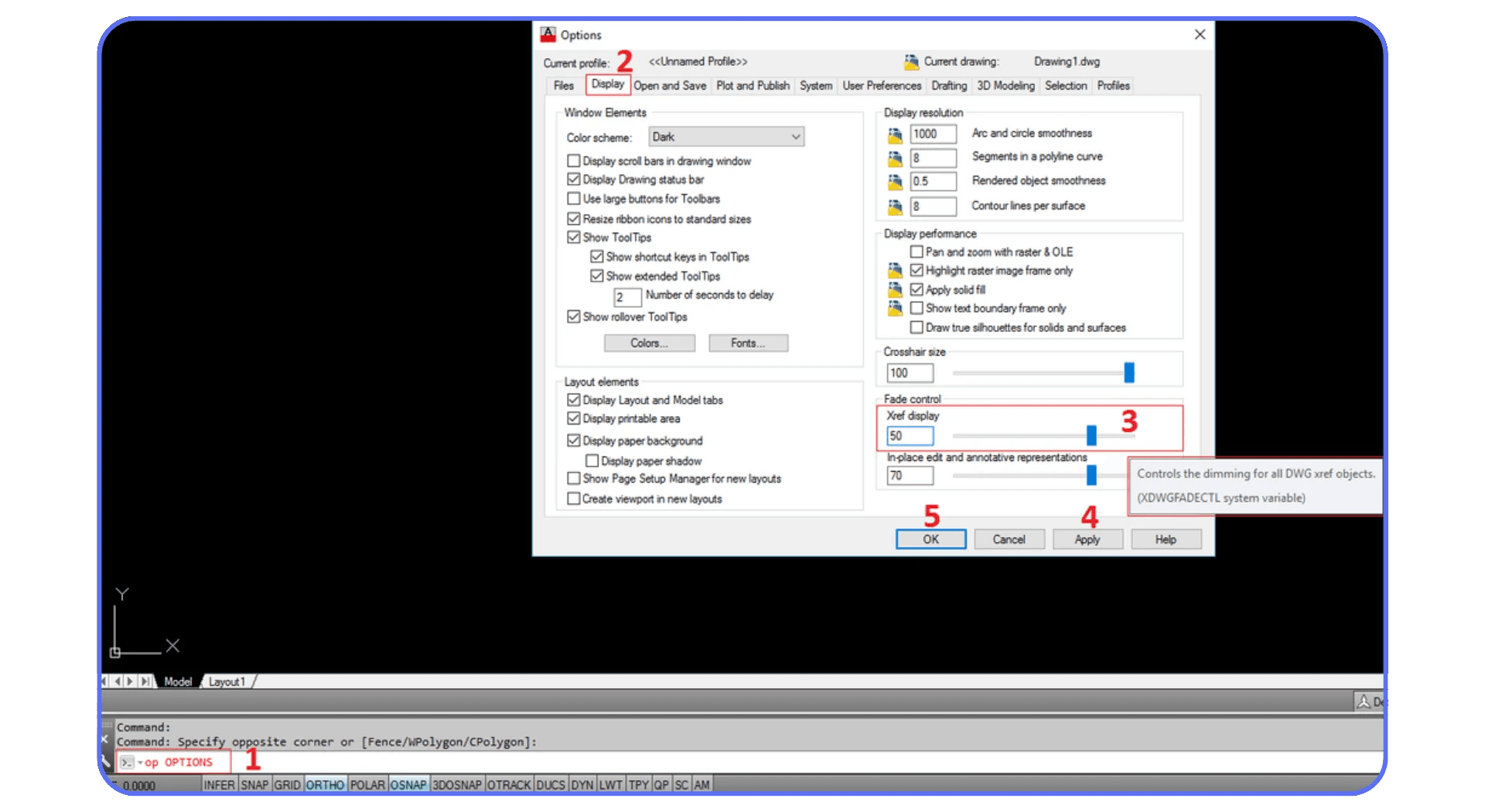

Open each Xref file and confirm its insertion scale + UNITS setting.

Fixing an existing drawing is more art than science.
Some files convert beautifully. Some reveal every bad habit the previous drafter ever had. But with the right workflow, and a little patience, you can recover almost any file without starting over.

Displaying Units Correctly with Dimension Styles

Here’s where a lot of people get blindsided: changing the drawing units does NOT change how your dimensions display numbers. You can switch a file from inches to millimeters perfectly… and your dimensions will still stubbornly show 0.039 or 12’-6” or whatever nonsense the old style was using. This is the biggest reason users, even those on AutoCAD LT, Architecture, Civil 3D, or student versions, think their unit conversion “didn’t work.”

It did work.
Your dimension style just didn’t get the memo.

Use DIMSTYLE to Fix the Display
Type:

DIMSTYLE

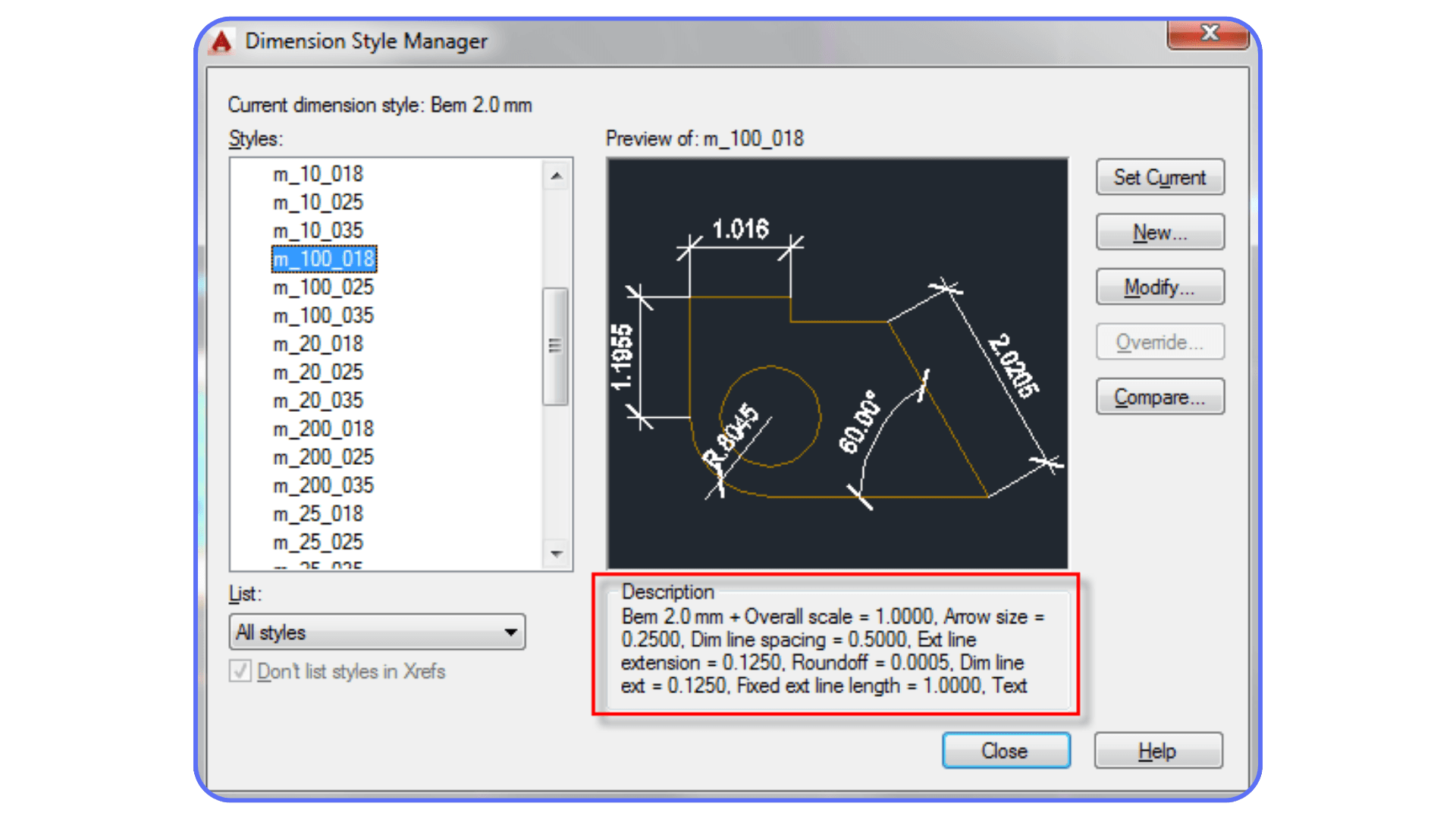

Open the style you’re using (usually “Standard” unless the drawing came from a very creative drafter).

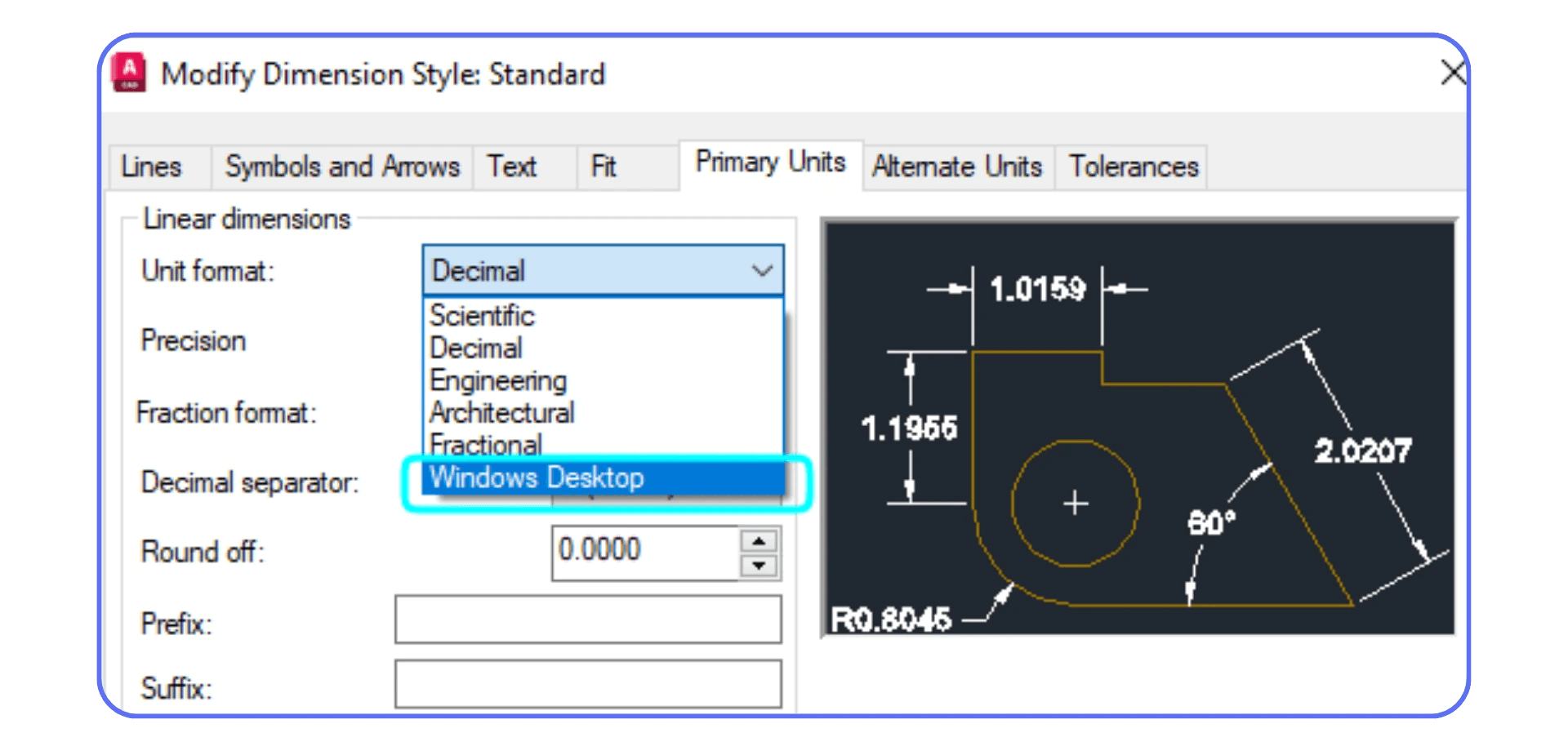

Go to the Primary Units tab, this is the heart of the whole issue.

Here’s what you need to fix:

1. Unit Format
Choose depending on your workflow:

• Decimal → common in metric and mechanical drawings

• Architectural → feet & inches (AutoCAD Architecture users live here)

• Engineering → decimal feet

• Fractional → woodworking + certain manufacturing workflows

If your project uses millimeters, Decimal is almost always correct.

2. Precision
The number of decimals you want to see.
0.00 or 0.000 for mm-based drawings is usually enough.
Feet/inch projects vary depending on detail level.

3. Suffix
This is where you tell AutoCAD what to show after the number:

• “mm”

• “cm”

• “m”

• “in”

• “ft”

If you switch a drawing from inches to mm and forget the suffix, your dimensions might look correct numerically but misleading on the page.

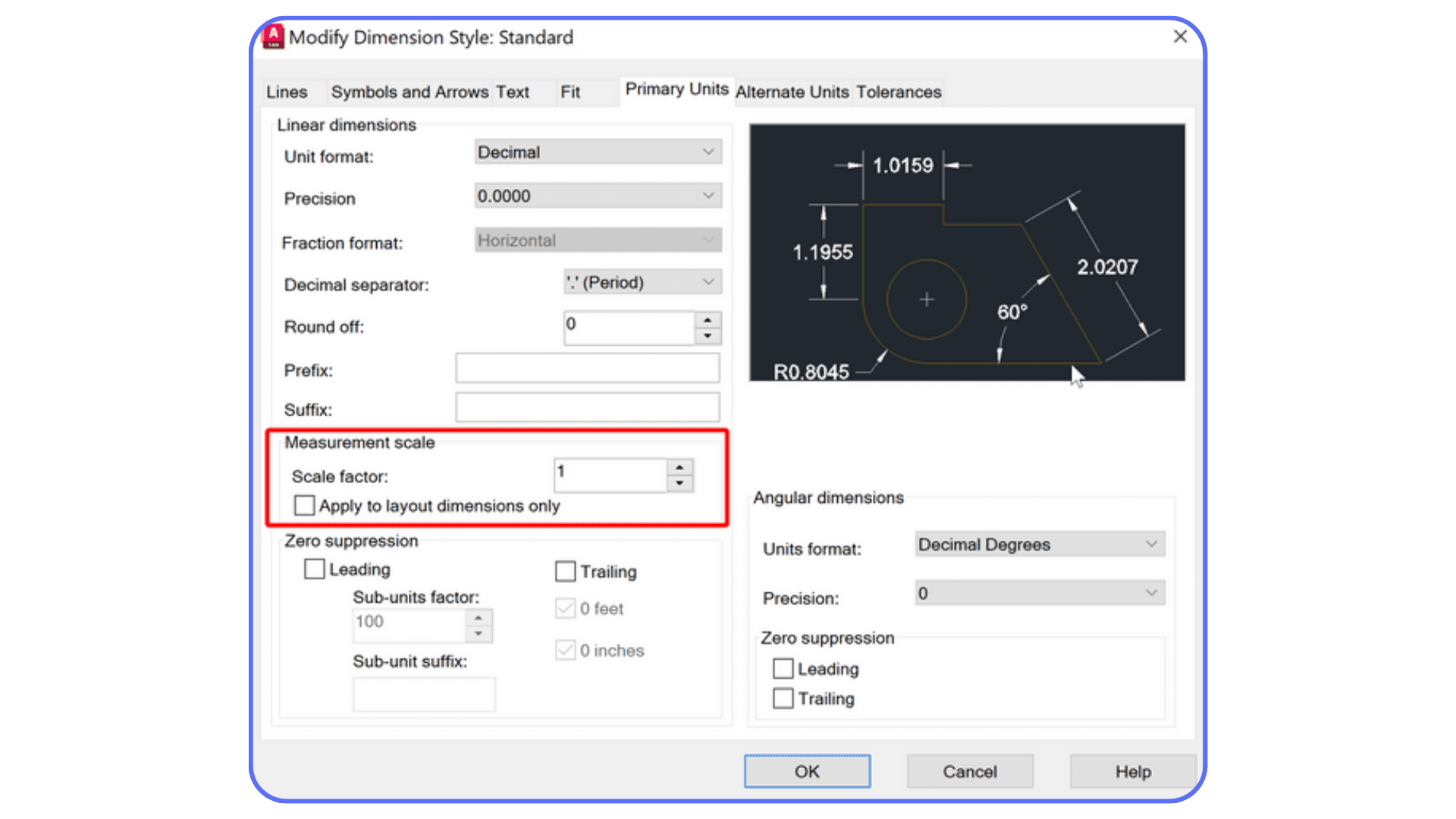

4. Scale Factor
If you converted units (especially inches↔mm), you may need to adjust the scale factor so arrows, text height, and extension lines look reasonable.
Ignoring this is how you end up with giant arrows and microscopic text.

Why Dimensions Don’t Auto-Update

Because AutoCAD CAD programs treat units and display as two separate concepts:

• UNITS = “what does 1 unit mean?”

• DIMSTYLE = “how do you show measurements?”

You must fix both when converting a file.

When Dual Dimensions Are Useful

If your team or clients work in mixed systems, say the architect uses imperial while the manufacturer uses metric, you can turn on dual dimensioning:

Example:
1200 mm (3’-11 1/4”)

AutoCAD Architecture users do this often, but it works in every version, even AutoCAD for students.

Dual dimensions save arguments, RFIs, and hours of recalculating values someone else “converted wrong.”

Dimension styles are the final step of a proper unit setup.
If your drawing still “feels wrong” after a unit change, DIMSTYLE is almost always the reason.

If you’re trying to decide whether your current setup is even suitable for heavy CAD work, this guide breaks down the best PC options for AutoCAD based on performance and real-world workflows.

Preventing Unit Chaos with Vagon Cloud Computer

Most unit problems don’t come from AutoCAD itself, they come from inconsistent environments. You set everything correctly at the office, but then you open the same project on your home PC or a laptop for AutoCAD and suddenly the template is different, the insertion scale has changed, or an old block library sneaks in. Mix that with files coming from AutoCAD Architecture, AutoCAD Civil 3D software, AutoCAD LT, or even AutoCAD for students, and you end up with drawings that scale unpredictably.

Vagon Cloud Computer solves this by giving you a single, stable AutoCAD environment that never changes unless you change it. Your templates, unit settings, dimension styles, linetype scales, and block libraries all live in one place. No matter what device you log in from, Mac, Windows, a lightweight laptop, even another office, you’re opening AutoCAD in the exact same configuration every time.

This consistency removes the hidden variables that usually break unit workflows. You don’t end up with mm-based templates on one machine and inch-based defaults on another. Xrefs behave consistently. Blocks insert at the correct size. And you’re not constantly wondering which computer introduced the scaling issue this time.

Whether you switch between different AutoCAD software programs for different projects, or just want your setup to be the same everywhere, Vagon ensures your environment stays clean, predictable, and unit-safe. It doesn’t fix bad drawings, but it prevents the environment-driven unit chaos that causes most of the problems in the first place.

Final Thoughts

There’s nothing “advanced” or mysterious about unit management in AutoCAD, what matters is consistency. If you set your units correctly at the start and keep your environment stable, you avoid 90% of the scaling problems people run into across AutoCAD software programs. Two rules summarize everything:

1) Always set units before you draw anything meaningful. The first minute you open a file is the best time to confirm UNITS + insertion scale.

2) Make your unit system visible. A simple note in the title block (“All units in mm” or “All dimensions in inches”) prevents confusion months later.

Get these two things right, and your drawings behave predictably, whether you’re using AutoCAD LT at home, Civil 3D at the office, Architecture for building plans, or even AutoCAD for students on a temporary laptop. And if you’re using a unified workspace like Vagon Cloud Computer, keeping everything consistent becomes even easier. Clean units lead to clean drawings, and clean drawings make every stage of the project smoother.

Architectural teams that switch between AutoCAD and ArchiCAD often face double the scaling surprises, and this AutoCAD vs ArchiCAD guide breaks down why their unit systems and modeling logic differ so much.

FAQs

1. What’s the fastest way to change units in AutoCAD software?
For a new drawing, use the UNITS command. For an existing drawing that already contains geometry, -DWGUNITS is the safer option because it guides you through a proper conversion.

2. Why do my dimensions still show inches after switching to millimeters?
Because changing drawing units doesn’t update dimension styles. You need to open DIMSTYLE, go to Primary Units, and change the unit format, precision, and suffix there.

3. Does AutoCAD LT handle units differently than full AutoCAD?
No. AutoCAD LT follows the exact same unit rules as AutoCAD from Autodesk. The core unit and dimension tools work identically.

4. How do I fix blocks that insert at the wrong size?
Open the block in the Block Editor and check its insertion units. Many blocks from external AutoCAD CAD programs are created in inches, so correcting that setting usually solves scaling issues.

5. Why do Xrefs attach at the wrong scale?
This happens when the host file and the Xref use different insertion scales. Check UNITS and INSUNITS in both drawings to make sure they match.

6. Can AutoCAD for students change units the same way as paid versions?
Yes. The student version uses the same UNITS, -DWGUNITS, and DIMSTYLE commands as all other versions.

7. What’s the best way to verify units in a DWG AutoCAD viewer?
You can’t change units in a viewer, but you can measure objects. If a standard door measures around “3” it’s likely in feet; if it measures around “900,” it’s in millimeters.

8. Why do my linetypes or hatches look strange after converting units?
They often need rescaling. After a unit conversion, adjust your linetype scale with LTSCALE and tweak hatch scales to match the new unit system.
